4 Terminal Meter Socket

4 TERM RNGTP SML CLS PLT TRIPLEX GND LNK BYPS 100 AMP MN BRKR 10KAIC 240V 8-16 BRANCH CKT

Milbank #

U214MTBL

UPC

784572178847

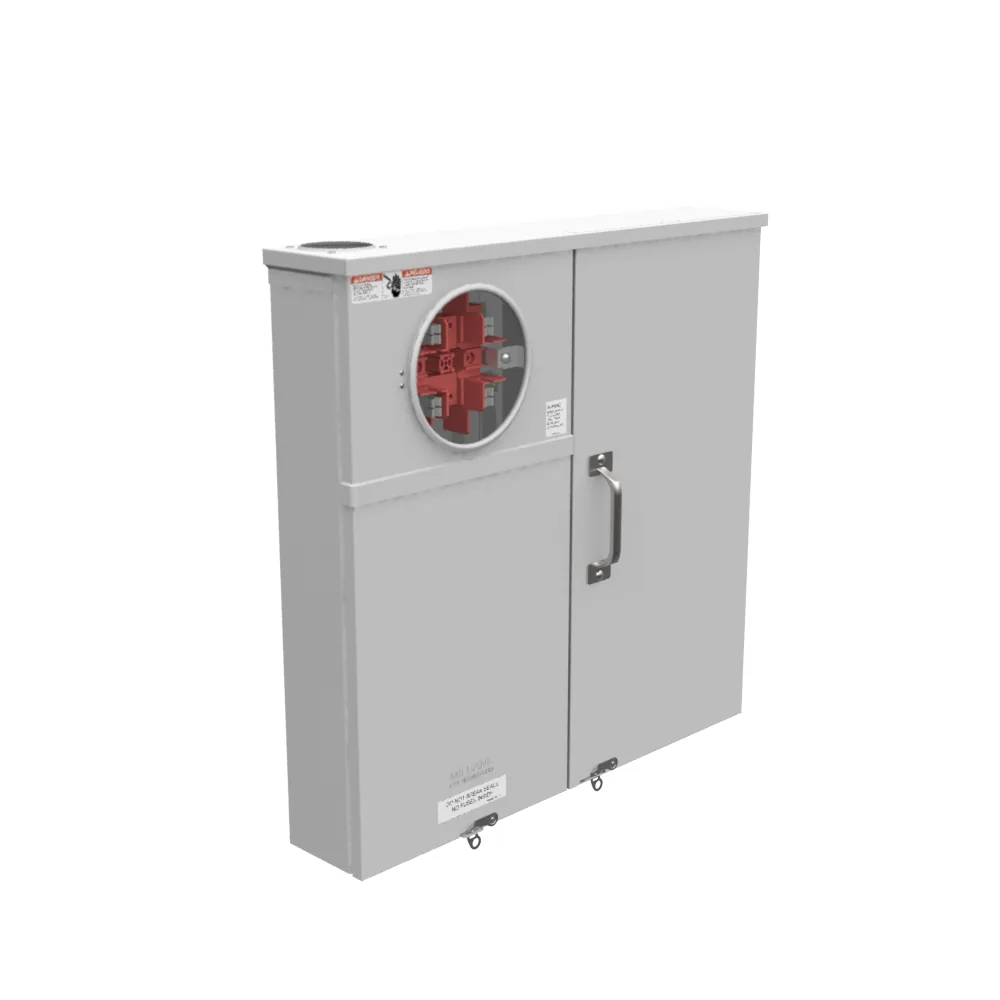

The Milbank U214MTBL is a meter socket with main and load center with 4 Terminal jaw construction. It carries a continuous amperage rating of 100 Ampere at 240V. The socket includes a main overcurrent device described as One 100 Ampere Main Breaker, an interrupting capacity rating of 10k AIC, space for 8-16 branch circuits in an integral load center, a Test Block Bypass for meter removal without an outage. It is built with Overhead or Underground cable entry, a Twin Small Closing Plates, an equipment ground provision described as Ground Lug, a line-side wire range of 14 AWG - 1/0. The enclosure is fabricated from G90 Galvanized Steel with Powder Coat Finish, with a Fiberglass with Resin insulating base, rated for 60 Hertz service, 1 Phase applications. Electricians and utility crews install a Milbank meter socket of this type at the service entrance so the utility can meter a residential, commercial, or industrial electric service, sourcing it through Arizona Electrical Solutions.
