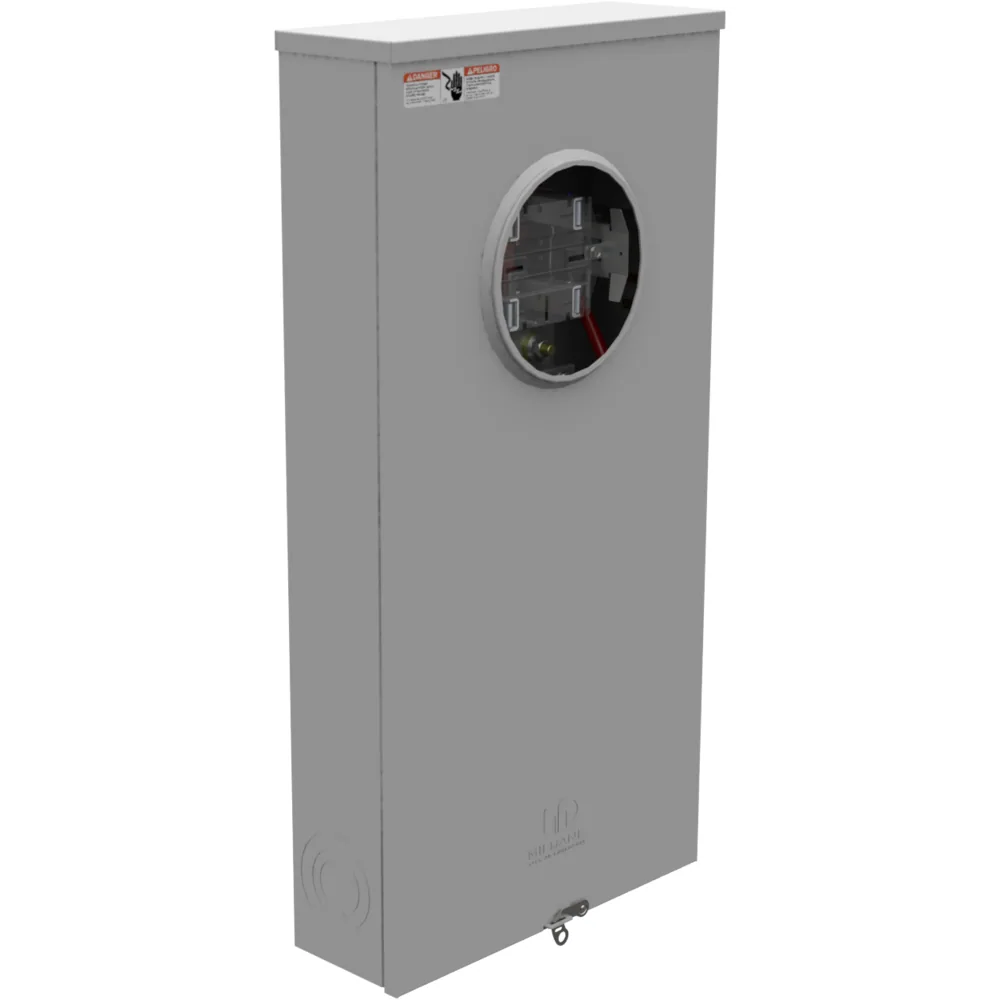

4 TERM RNGLS PLAIN TOP 3 POS GND 2 POS GND SGNL POS GND LVR BYPS SGL CONN LKG 4-600KCMIL DBL CONN LKG 6-350KCMIL
- Milbank #
- U1129-O-K3L-K2L
- UPC
- 784572301924
4 Terminal Ringless Plain Top Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil Top Facing Socket
List price
$12,869.71 MXN + VAT
| Price before IVA | $12,869.71 MXN |
|---|---|
| Total incl. 16% IVA | $14,928.86 MXN |
| Total incl. 8% IVA (border region) | $13,899.29 MXN |
Converted from USD $714.48 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 320 Continuous Ampere320 Continuous Ampere |
|---|---|
| Application | Meter SocketMeter Socket |
| Bypass Provision | Lever BypassLever Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | No Main BreakerNo Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | 3 Barrel Ground Lug3 Barrel Ground Lug |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil |
| Load Side Wire Range | Two 6 AWG - 350 kcmilTwo 6 AWG - 350 kcmil |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 00 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 4.875L x 15W x 30H4.875L x 15W x 30H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Single MechanicalSingle Mechanical |
| Type | Ringless Meter SocketRingless Meter Socket |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 30 in76.2 cm |
| Length | 4.875 in12.4 cm |
| Width | 15 in38.1 cm |
