DistributorSouthwire
4 TERM RNGLS LRG CLS PLT 3 POS GND 2 POS GND LVR BYPS NON UL

Milbank

4 TERM RNGLS LRG CLS PLT 3 POS GND 2 POS GND LVR BYPS NON UL

Milbank #
S1797-X
UPC
784572121089

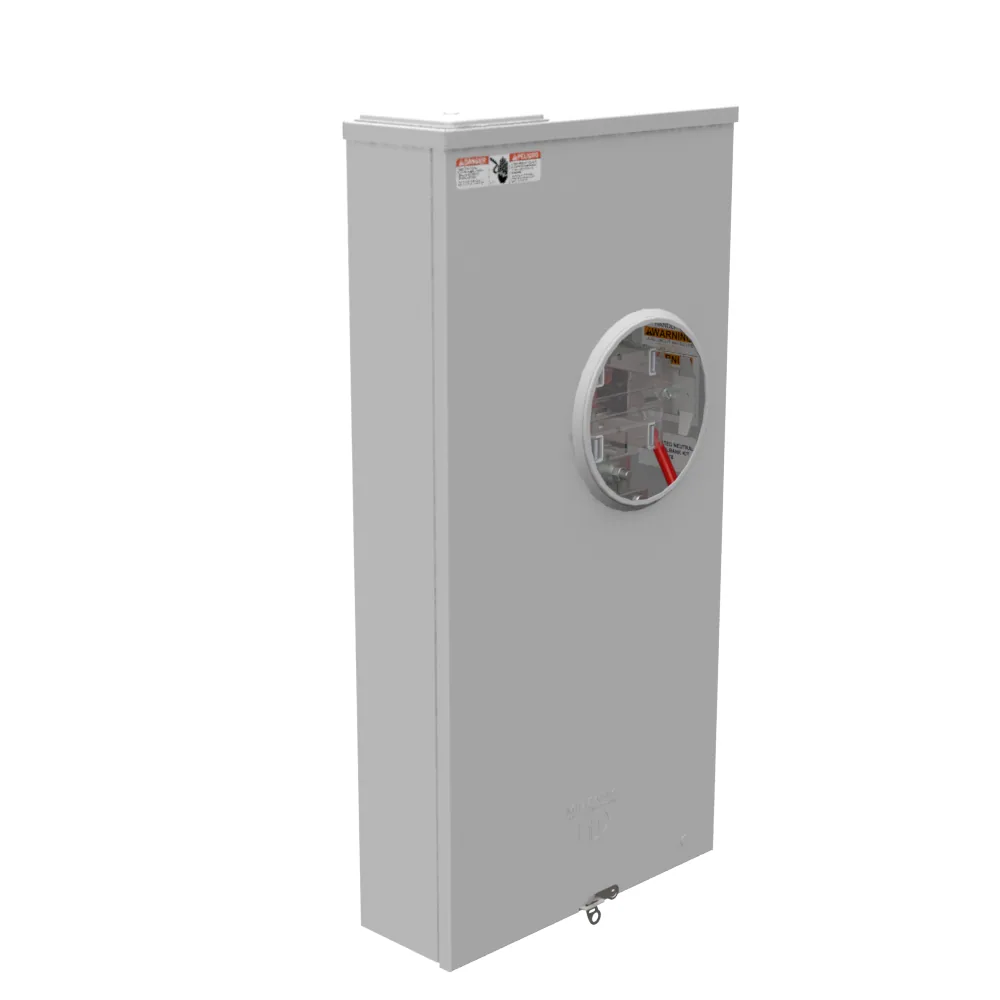

4 Terminal Ringless Large Closiing Plate Lever Bypass Stud Type

List price

$8,501.09 MXN + VAT

Price before IVA$8,501.09 MXN
Total incl. 16% IVA$9,861.26 MXN
Total incl. 8% IVA (border region)$9,181.18 MXN

Converted from USD $471.95 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.

Quote on WhatsApp
📄 Spec sheet (PDF)📎 Dimension Drawing

Specifications

Amperage Rating320 Continuous Ampere320 Continuous Ampere
ApplicationMeter SocketMeter Socket
Bypass ProvisionLever BypassLever Bypass
Cable EntryOverhead or UndergroundOverhead or Underground
Main Breaker SizeNo Main BreakerNo Main Breaker
MaterialG90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish
Equipment GroundGrounding StudGrounding Stud
Frequency Rating60 Hertz60 Hertz
Hub/Closing PlateLarge Closing PlateLarge Closing Plate
InsulationGlass PolyesterGlass Polyester
Number of Jaws4 Terminal4 Terminal
KnockoutsTrueTrue
Line Side Wire Range4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil;No Lugs Provided4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil;No Lugs Provided
Load Side Wire RangeTwo 6 AWG - 350 kcmil;No Lugs Provided or Two 4 AWG – 350 kcmil orTwo 4 AWG – 500 kcmilTwo 6 AWG - 350 kcmil;No Lugs Provided or Two 4 AWG – 350 kcmil orTwo 4 AWG – 500 kcmil
MountingSurface MountSurface Mount
Number of Main Breakers00
Number of Meter Positions1 Position1 Position
Number Of Receptacles00
Phase1 Phase1 Phase
Size4.844L x 15W x 30H4.844L x 15W x 30H
StandardNon UL Listed;Type 3RNon UL Listed;Type 3R
TerminalSingle MechanicalSingle Mechanical
TypeRingless Meter SocketRingless Meter Socket
Voltage Rating600 Volts Alternating Current600 Volts Alternating Current
Height30 in76.2 cm
Length4.844 in12.3 cm
Width15 in38.1 cm
