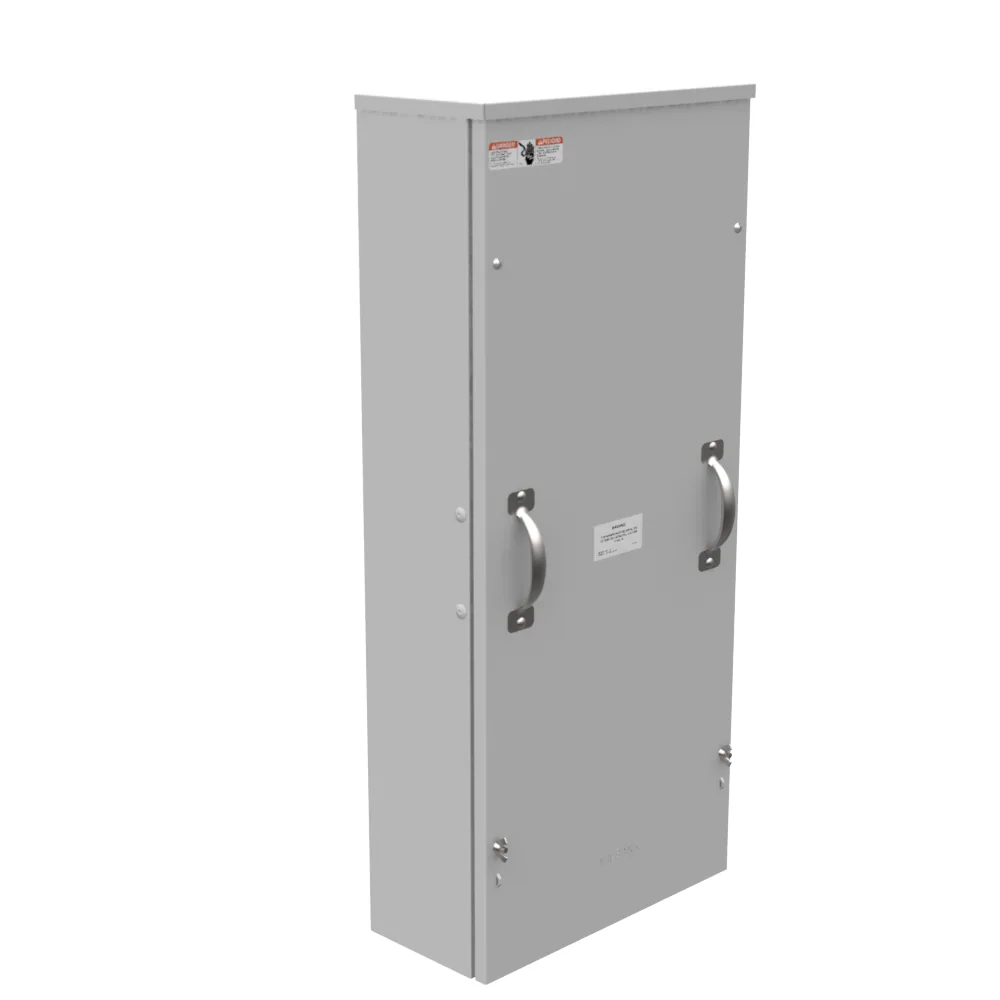

400 AMP 3 PH 600 VOLT 16INX36INX7IN PNTD STL NO KO LIFT OFF SCR FRONT .5-13 STUDS 1 LUG PER LND - 4-600KCMIL 10K AIC
- Milbank #
- PB-034-NK
- UPC
- 784572200326
400 Ampere 3 Phase 600 Volt 16in-36in-7in Painted Steel No Knockouts Lift Off Screw Front .5-13 Studs 1 Lug Per Landing - 4-600kcmil 10k Ampere Interrupting Capacity
List price
$21,485.73 MXN + VAT
| Price before IVA | $21,485.73 MXN |
|---|---|
| Total incl. 16% IVA | $24,923.45 MXN |
| Total incl. 8% IVA (border region) | $23,204.59 MXN |
Converted from USD $1,192.81 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | Up to 400 AmpereUp to 400 Ampere |
|---|---|
| Application | Termination CabinetTermination Cabinet |
| Color | ANSI 61 GrayANSI 61 Gray |
| Conductor Material | Copper and AluminumCopper and Aluminum |
| Wire Connection | 12InchStudLineSideand4AWGto600kcmilLoadSideLugs12InchStudLineSideand4AWGto600kcmilLoadSideLugs |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Finish | Powder Coat FinishPowder Coat Finish |
| Insulation Material | PolypropylenePolypropylene |
| Jacket Material | No Jacket MaterialNo Jacket Material |
| Length | 7 in17.8 cm |
| Miscellaneous | No KnockoutsNo Knockouts |
| Number of Conductors | 11 |
| Phase | 33 |
| Number of Meter Positions | 11 |
| Short Circuit Rating | 50000 Ampere50000 Ampere |
| Size | 7L x 16.156W x 36.078H7L x 16.156W x 36.078H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Temperature Rating | No Temperature RatingNo Temperature Rating |
| Type | Line to Load DistributionLine to Load Distribution |
| Voltage Rating | Up to 600 Volts Alternating CurrentUp to 600 Volts Alternating Current |
| Height | 36.078 in91.6 cm |
| Width | 16.156 in41.0 cm |
