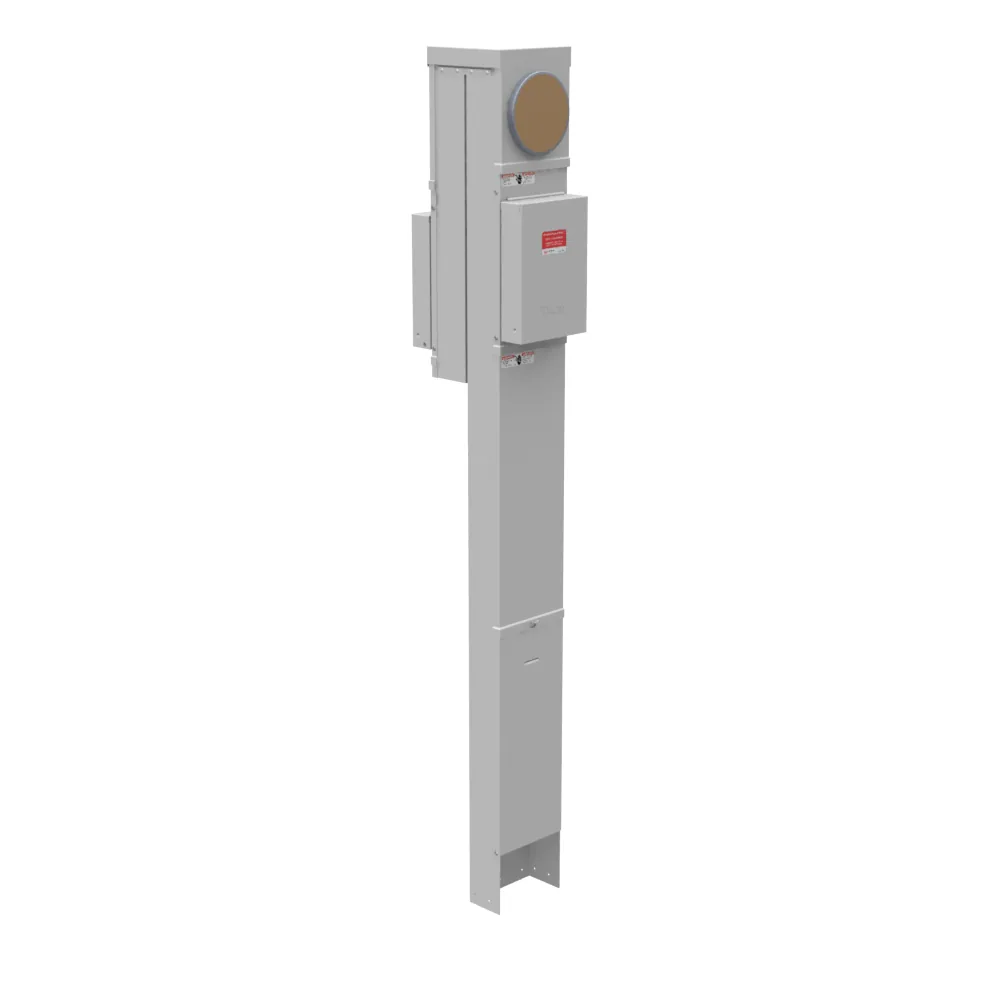

4 TERM RNGTP PLAIN TOP 100 AMP MN BRKR SGL PED DIR BURY SERIES WRD
- Milbank #
- MPRVD-100-MB-78
- UPC
- 784572237780
4 Terminal Ring Type 78x8.97x8.16 Plain Top 2-100 Ampere Main Breaker Double Pedestal Direct Bury
List price
$19,350.14 MXN + VAT
| Price before IVA | $19,350.14 MXN |
|---|---|
| Total incl. 16% IVA | $22,446.16 MXN |
| Total incl. 8% IVA (border region) | $20,898.15 MXN |
Converted from USD $1,074.25 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 100 Continuous Ampere100 Continuous Ampere |
|---|---|
| Application | Mobile Home PowerMobile Home Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | Two 100 Ampere Main BreakersTwo 100 Ampere Main Breakers |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground BarGround Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Fiberglass with ResinFiberglass with Resin |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Load Side Wire Range | 6 - 2/0 AWG6 - 2/0 AWG |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 1212 |
| Number of Main Breakers | 22 |
| Number of Meter Positions | 2 Positions2 Positions |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 13.603L x 8.16W x 78H13.603L x 8.16W x 78H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 78 in198.1 cm |
| Length | 13.603 in34.6 cm |
| Width | 8.16 in20.7 cm |
