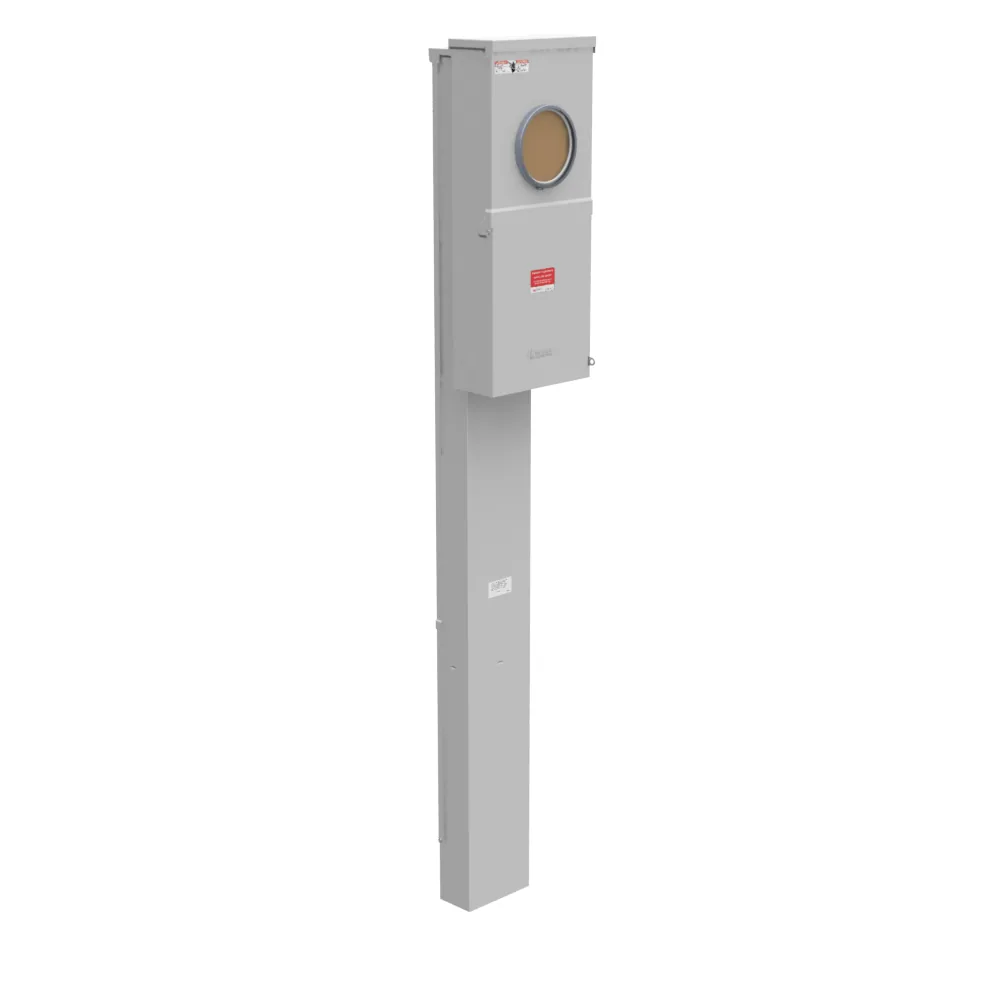

4 TERM RNGTP PLAIN TOP 100 AMP MN BRKR 8 BRANCH CKT SGL PED DIR BURY
- Milbank #
- MPRV-100-MBLC-80
- UPC
- 784572319431
4 Terminal Ring Type Plain Top 1-100 Ampere Main Breaker 8 Branch Circuit Single Pedestal Direct Bury
List price
$25,252.00 MXN + VAT
| Price before IVA | $25,252.00 MXN |
|---|---|
| Total incl. 16% IVA | $29,292.32 MXN |
| Total incl. 8% IVA (border region) | $27,272.16 MXN |
Converted from USD $1,401.90 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 100 Continuous Ampere100 Continuous Ampere |
|---|---|
| Application | Mobile Home PowerMobile Home Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | One 100 Ampere Main BreakerOne 100 Ampere Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground BarGround Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Fiberglass with ResinFiberglass with Resin |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Load Side Wire Range | 6 - 2/0 AWG6 - 2/0 AWG |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 1212 |
| Number of Main Breakers | 11 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 4.938L x 12.125W x 81H4.938L x 12.125W x 81H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 81 in205.7 cm |
| Length | 4.938 in12.5 cm |
| Width | 12.125 in30.8 cm |
