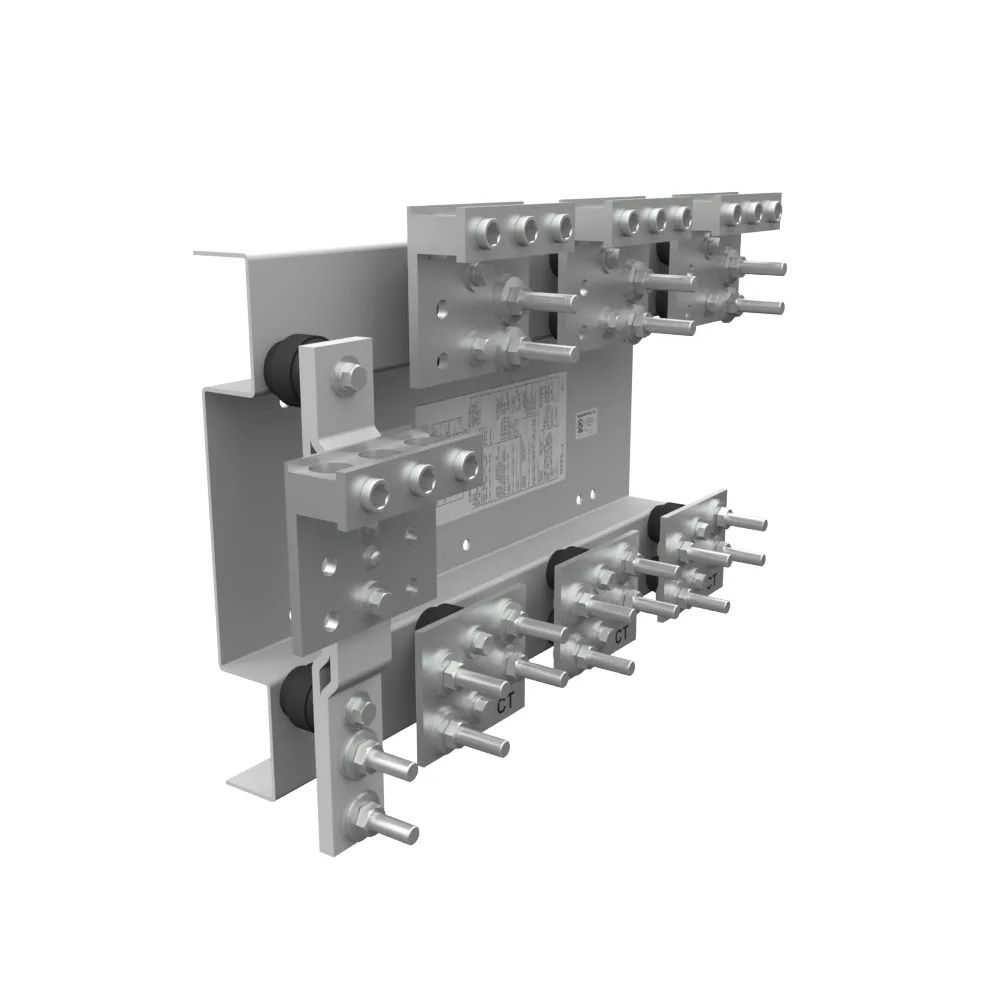

CT MOUNTING RACK 800 AMP 3 PHASE 50K AIC .375 STUD LINE SIDE AND 4-600KCMIL OR TWO 1-250KCMIL LOAD SIDE NON-EUSERC
- Milbank #
- K5747
- UPC
- 784572367074
Ct Mounting Rack 800 Ampere 3 Phase 50k Ampere Interrupting Capacity .375 Stud Line And 4-600kcmil Or Two 1-250kcmil Load Non-EUSERC
List price
$11,542.36 MXN + VAT
| Price before IVA | $11,542.36 MXN |
|---|---|
| Total incl. 16% IVA | $13,389.14 MXN |
| Total incl. 8% IVA (border region) | $12,465.75 MXN |
Converted from USD $640.79 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 800 Ampere800 Ampere |
|---|---|
| Application | Current Transformer AccessoryCurrent Transformer Accessory |
| Connection | Lugand StudLugand Stud |
| Frequency Rating | 60 Hertz60 Hertz |
| Insulation | Non MetallicNon Metallic |
| Material | Plated AluminumPlated Aluminum |
| Mounting | Surface MountSurface Mount |
| Number Of Feeders | 33 |
| Phase | 3 Phase3 Phase |
| Short Circuit Rating | 50,000 Ampere Interrupting Capacity50,000 Ampere Interrupting Capacity |
| Standard | UL ListedUL Listed |
| Type | Current Transformer Mounting RackCurrent Transformer Mounting Rack |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 16.019 in40.7 cm |
| Length | 6.063 in15.4 cm |
| Width | 24.5 in62.2 cm |
