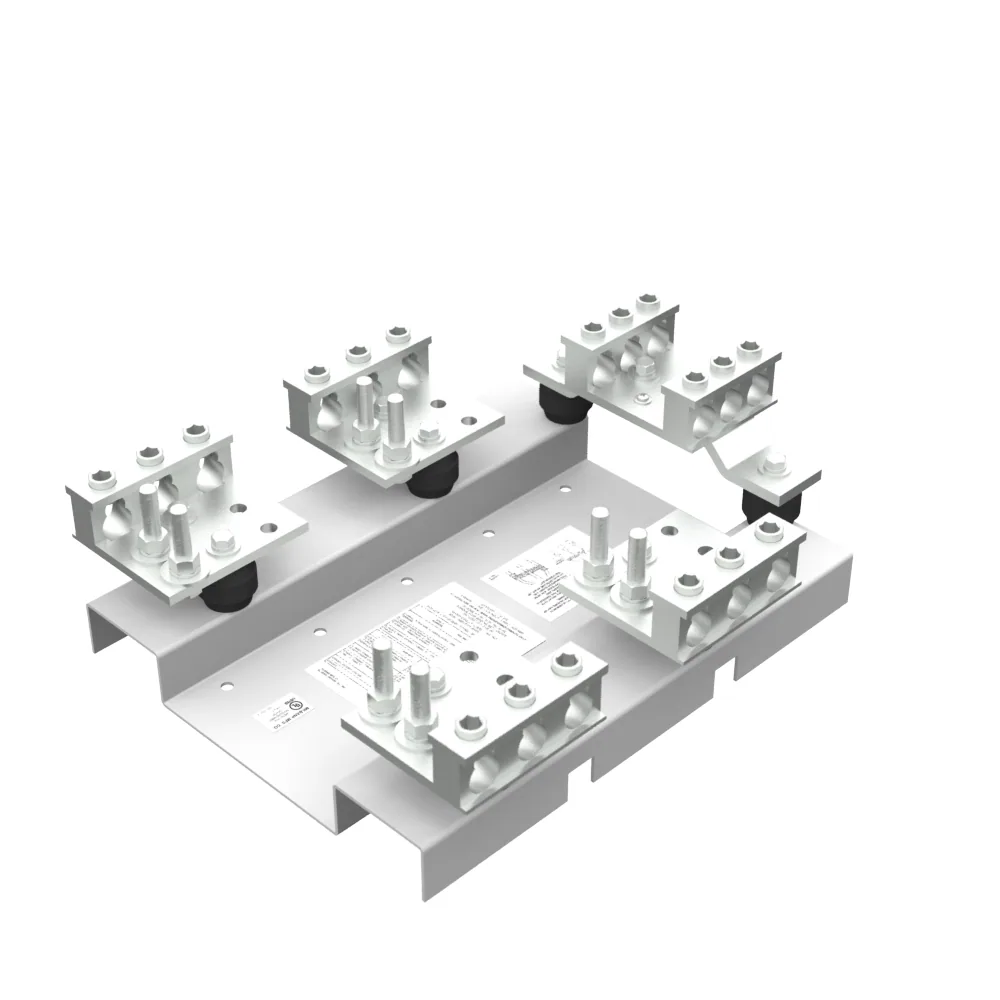

CT MOUNTING RACK 800 AMP 1 PHASE 50K AIC THREE 4-600KCMIL OR SIX 1-250KCMIL EUSERC
- Milbank #
- K4729
- UPC
- 784572239401
Ct Mounting Rack 800 Ampere 1phase 50k Ampere Interrupting Capacity Three 4-600kcmil Or Six 1-250kcmil EUSERC
List price
$11,579.10 MXN + VAT
| Price before IVA | $11,579.10 MXN |
|---|---|
| Total incl. 16% IVA | $13,431.76 MXN |
| Total incl. 8% IVA (border region) | $12,505.43 MXN |
Converted from USD $642.83 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 800 Ampere800 Ampere |
|---|---|
| Application | Current Transformer AccessoryCurrent Transformer Accessory |
| Connection | LugLug |
| Frequency Rating | 60 Hertz60 Hertz |
| Insulation | Non MetallicNon Metallic |
| Material | Plated AluminumPlated Aluminum |
| Mounting | Surface MountSurface Mount |
| Number Of Feeders | 33 |
| Phase | 1 Phase1 Phase |
| Short Circuit Rating | 50,000 Ampere Interrupting Capacity50,000 Ampere Interrupting Capacity |
| Special Features | EURSERC Dwg #328BEURSERC Dwg #328B |
| Standard | UL ListedUL Listed |
| Type | Current Transformer Mounting RackCurrent Transformer Mounting Rack |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 19 in48.3 cm |
| Length | 6.313 in16.0 cm |
| Width | 16.195 in41.1 cm |
