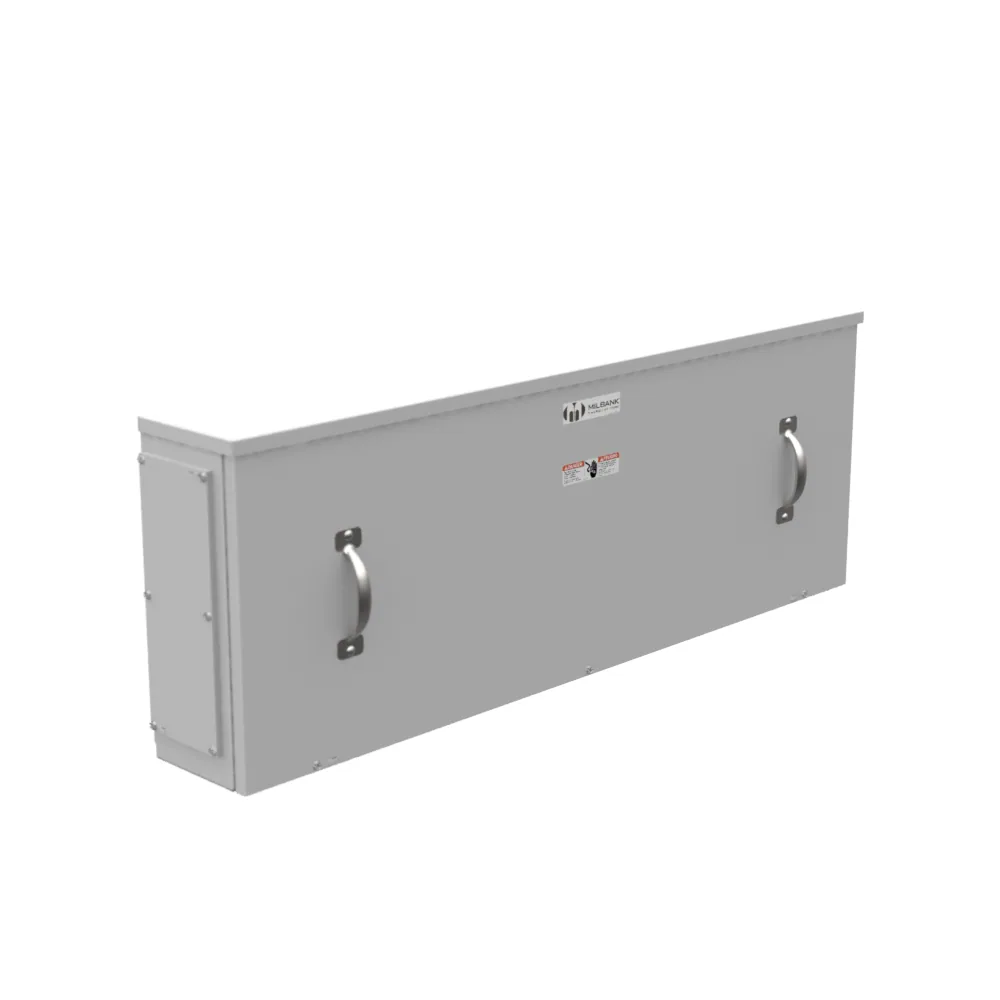

800A single-phase Bus Gutter
800 AMP 1 PH 600 VOLT 43IN-15IN-6IN PNTD STL LIFT OFF SCR FRONT 2 LUGS PER LND - 4-600KCMIL 4 LUGS PER LND 1 AUGHT-250KCMIL 42K AIC
- Milbank #
- BC318
- UPC
- 784572111349
Milbank BC318 is a bus gutter enclosure. It is listed under Milbank's gutters category, in the BUSG product family. It gives an electrician a wireway for splicing or extending service-entrance conductors between metering and distribution equipment, without landing them on a breaker or switch. Cabinet dimensions are 6.188 IN deep by 42.938 IN wide by 15.438 IN high. Typical order lead time from Milbank runs 3 to 10 business days. A manufacturer spec sheet is available for this part number for submittal or verification purposes. It is sold by the each.
$26,380.86 MXN + VAT
| Price before IVA | $26,380.86 MXN |
|---|---|
| Total incl. 16% IVA | $30,601.80 MXN |
| Total incl. 8% IVA (border region) | $28,491.33 MXN |
Converted from USD $1,464.57 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | Up to 800 AmpereUp to 800 Ampere |
|---|---|
| Application | Bus GutterBus Gutter |
| Color | ANSI 61 GrayANSI 61 Gray |
| Conductor Material | Copper and AluminumCopper and Aluminum |
| Wire Connection | 4AWGto600kcmilLineSideLugsand6AWGto250kcmilLoadSideLugs4AWGto600kcmilLineSideLugsand6AWGto250kcmilLoadSideLugs |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Finish | Powder Coat FinishPowder Coat Finish |
| Insulation Material | PolypropylenePolypropylene |
| Jacket Material | No Jacket MaterialNo Jacket Material |
| Length | 6.188 in15.7 cm |
| Number of Conductors | 11 |
| Phase | 11 |
| Number of Meter Positions | 33 |
| Short Circuit Rating | 42000 Ampere42000 Ampere |
| Size | 6.188L x 42.938W x 15.438H6.188L x 42.938W x 15.438H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Temperature Rating | No Temperature RatingNo Temperature Rating |
| Type | Line to Load DistributionLine to Load Distribution |
| Voltage Rating | Up to 600 Volts Alternating CurrentUp to 600 Volts Alternating Current |
| Height | 15.438 in39.2 cm |
| Width | 42.938 in109.1 cm |
