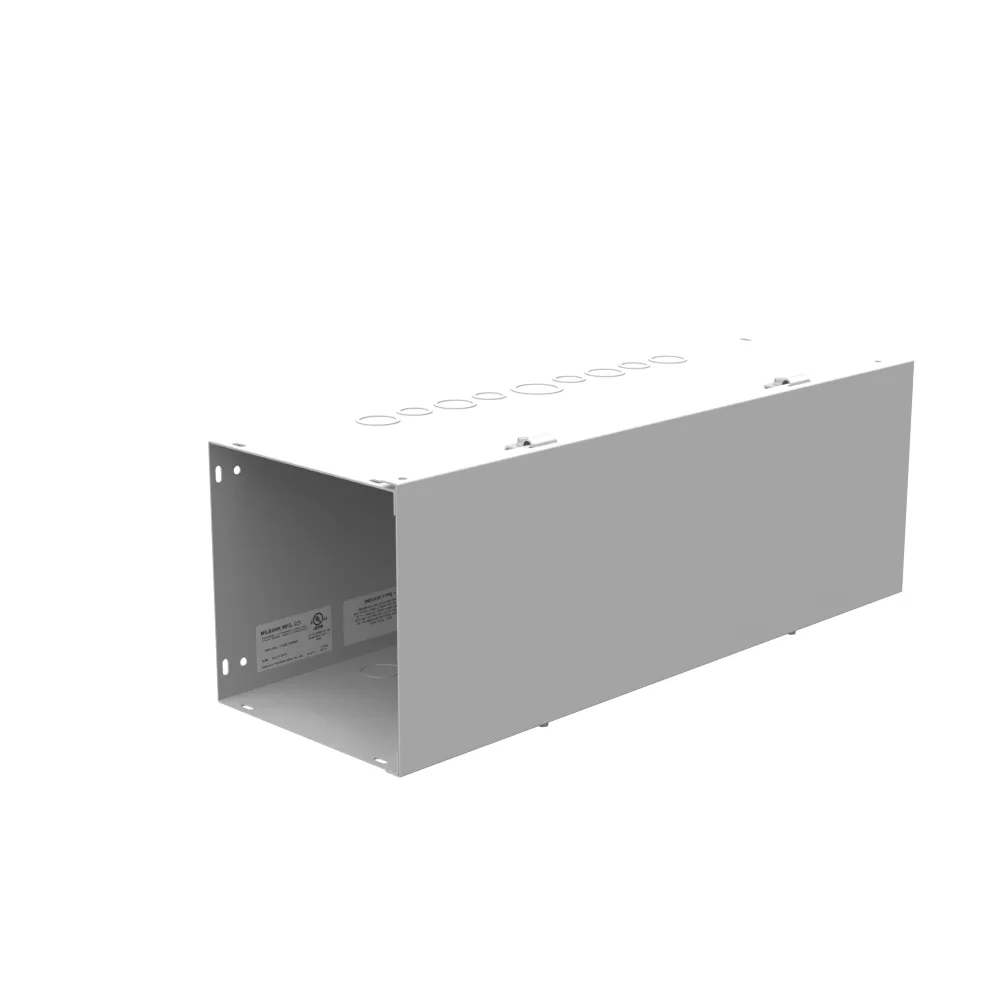

8x24x8 Hinge Cover Gutter Type 1 UL Listed Steel Knockouts ANSI 61 Gray
- Milbank #
- 8824-GHC1
- UPC
- 784572109247
The Milbank 8824-GHC1 is an 8x8 wireway section, 24 inches long, fitted with a hinged cover. It is UL Listed. Electrical contractors use lay-in wireway to route and protect branch-circuit conductors between panels, disconnects, and other equipment, with the cover providing access for pulling and splicing wire along the run. This section comes with factory knockouts for cable and conduit entry. The wireway is constructed of steel, finished in ANSI 61 Gray Powder Coat, intended for indoor use. Cross-section dimensions are 8.0 IN x 8.0 IN. This unit is part of Milbank's GHC1 wireway family and is listed under wireway.
$2,024.45 MXN + VAT
| Price before IVA | $2,024.45 MXN |
|---|---|
| Total incl. 16% IVA | $2,348.36 MXN |
| Total incl. 8% IVA (border region) | $2,186.41 MXN |
Converted from USD $112.39 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Hinge CoverHinge Cover |
| Enclosure | Indoor EnclosureIndoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 8 in20.3 cm |
| Knockouts | TrueTrue |
| Length | 24 in61.0 cm |
| Material | SteelSteel |
| NEMA Rating | Type 1Type 1 |
| Nominal Cross Section | 8x88x8 |
| Standard | UL ListedUL Listed |
| Straight Section Length | 2424 |
| Type | Lay In WirewayLay In Wireway |
| Width | 8 in20.3 cm |
