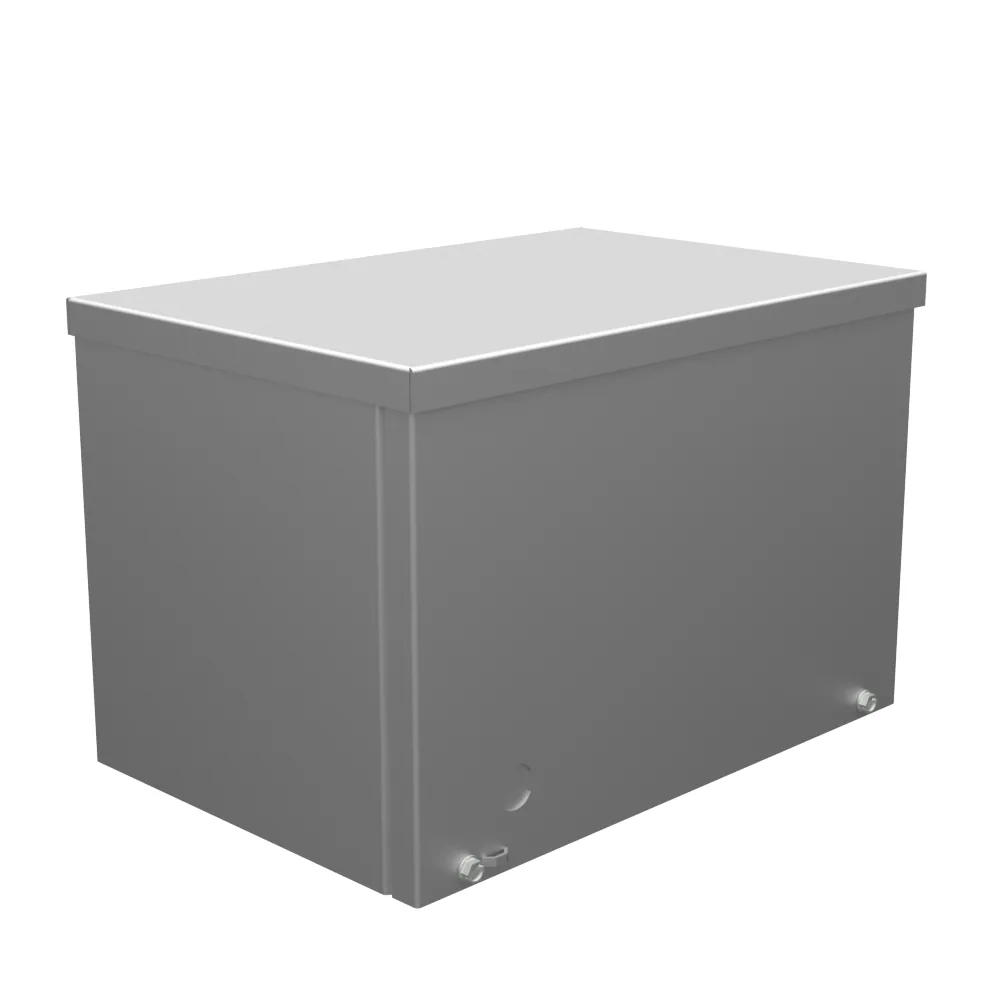

8x12x8 Screw Cover Wireway Type 3R UL Listed Steel No Knockouts No Paint Quad D Knockout for Lock Emboss Mounting Holes in Back
- Milbank #
- 8812-GSC3R-NK-NP
- UPC
- 784572161696
The Milbank 8812-GSC3R-NK-NP is an 8x8 wireway section, 12 inches long, fitted with a screw-secured cover. It is UL Listed. Electrical contractors use lay-in wireway to route and protect branch-circuit conductors between panels, disconnects, and other equipment, with the cover providing access for pulling and splicing wire along the run. This section ships with no factory knockouts, so entries are field-cut to suit the installation. The wireway is constructed of g90 galvanized steel, left in an unpainted mill finish, intended for outdoor use. Cross-section dimensions are 8.0 IN x 8.0 IN. It includes provision for a key-locking cylinder latch. This unit is part of Milbank's GS3R wireway family and is listed under wireway.
$2,037.06 MXN + VAT
| Price before IVA | $2,037.06 MXN |
|---|---|
| Total incl. 16% IVA | $2,362.99 MXN |
| Total incl. 8% IVA (border region) | $2,200.02 MXN |
Converted from USD $113.09 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Outdoor EnclosureOutdoor Enclosure |
| Finish | UnpaintedUnpainted |
| Height | 8 in20.3 cm |
| Knockouts | FalseFalse |
| Length | 12 in30.5 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 3RType 3R |
| Nominal Cross Section | 8x88x8 |
| Special Features | Key Locking Cylinder Latch ProvisionKey Locking Cylinder Latch Provision |
| Standard | UL ListedUL Listed |
| Straight Section Length | 1212 |
| Type | Wiring TroughWiring Trough |
| Width | 8 in20.3 cm |
