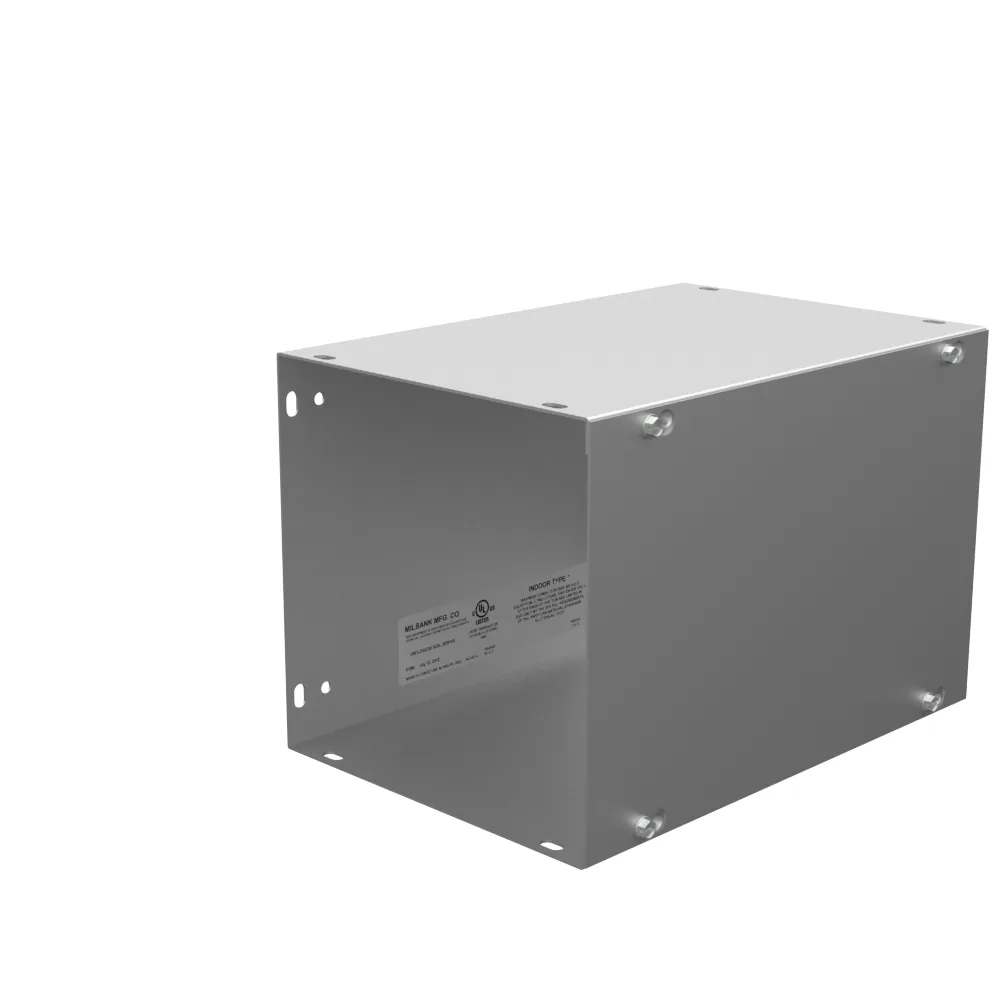

8X12X8 Screw Cover Wireway UL Listed Type 1 Steel No Knockouts No Paint
- Milbank #
- 8812-GSC1-NK-NP
- UPC
- 784572155015
The Milbank 8812-GSC1-NK-NP is an 8x8 wireway section, 12 inches long, fitted with a screw-secured cover. It is UL Listed. Electrical contractors use lay-in wireway to route and protect branch-circuit conductors between panels, disconnects, and other equipment, with the cover providing access for pulling and splicing wire along the run. This section ships with no factory knockouts, so entries are field-cut to suit the installation. The wireway is constructed of g90 galvanized steel, left in an unpainted mill finish, intended for indoor use. Cross-section dimensions are 8.0 IN x 8.0 IN. This unit is part of Milbank's GSC1 wireway family and is listed under wireway.
$1,265.03 MXN + VAT
| Price before IVA | $1,265.03 MXN |
|---|---|
| Total incl. 16% IVA | $1,467.43 MXN |
| Total incl. 8% IVA (border region) | $1,366.23 MXN |
Converted from USD $70.23 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Indoor EnclosureIndoor Enclosure |
| Finish | UnpaintedUnpainted |
| Height | 8 in20.3 cm |
| Knockouts | FalseFalse |
| Length | 12 in30.5 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 1Type 1 |
| Nominal Cross Section | 8x88x8 |
| Standard | UL ListedUL Listed |
| Straight Section Length | 1212 |
| Type | Lay In WirewayLay In Wireway |
| Width | 8 in20.3 cm |
