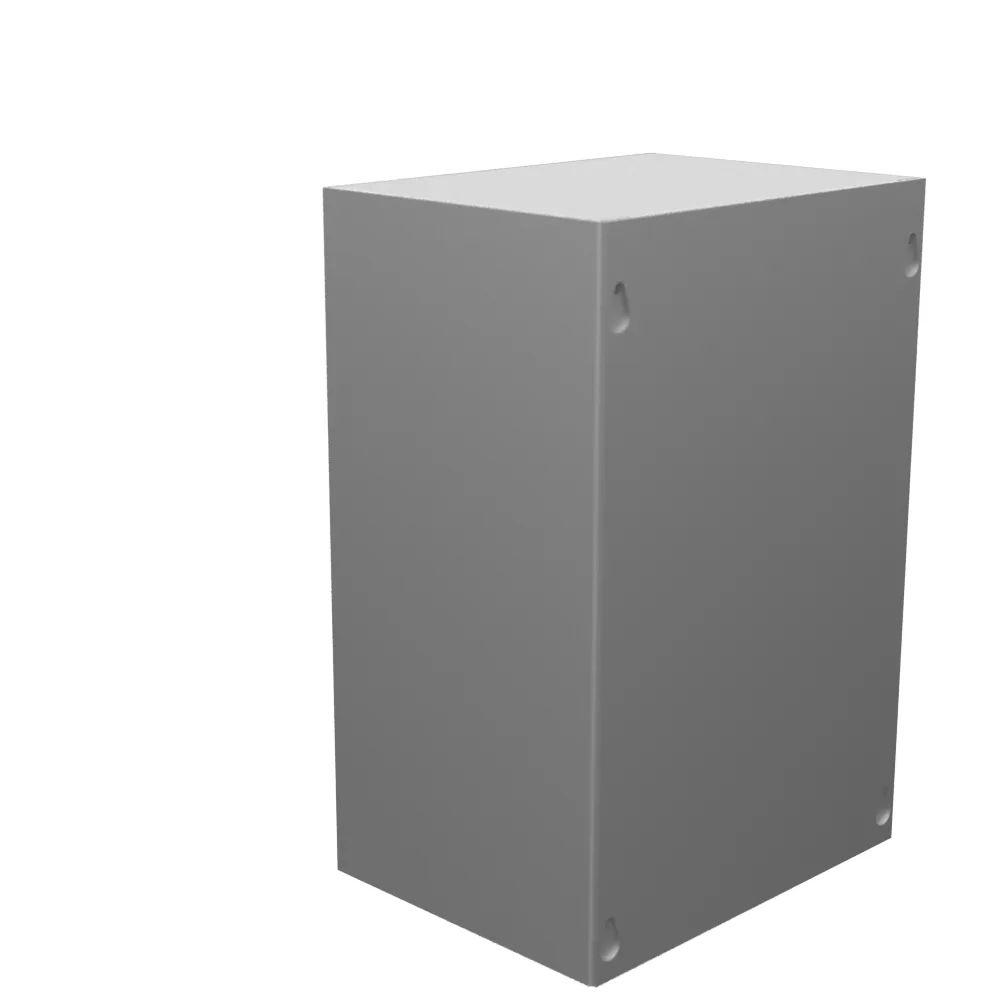

12x6x8 Screw Cover NEMA 1 Steel No Knockouts No Paint Cover with Teardrop Holes Mounting Holes in Back
- Milbank #
- 8126-SC1-NK-NP
- UPC
- 784572210608
The Milbank 8126-SC1-NK-NP is a screw cover enclosure used to house and protect electrical equipment mounted on a wall or panel. It is UL Listed. Electricians and panel builders use enclosures in this class to cover terminations, connections, or control components while keeping the cover secured with screws rather than a hinge. This cover has no hinge and is removed fully for access. The cover is secured with plated screws. The enclosure is built from g90 galvanized steel, left in an unpainted mill finish, welded construction. Overall dimensions are listed as 12.0 IN high by 8.0 IN wide by 6.0 IN deep. This cover is part of Milbank's SC1C enclosure family.
$836.33 MXN + VAT
| Price before IVA | $836.33 MXN |
|---|---|
| Total incl. 16% IVA | $970.14 MXN |
| Total incl. 8% IVA (border region) | $903.24 MXN |
Converted from USD $46.43 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 1Type 1 |
| Number Of Outlet | 00 |
| Size | 6L x 8W x 12H6L x 8W x 12H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 12 in30.5 cm |
| Length | 6 in15.2 cm |
| Width | 8 in20.3 cm |
