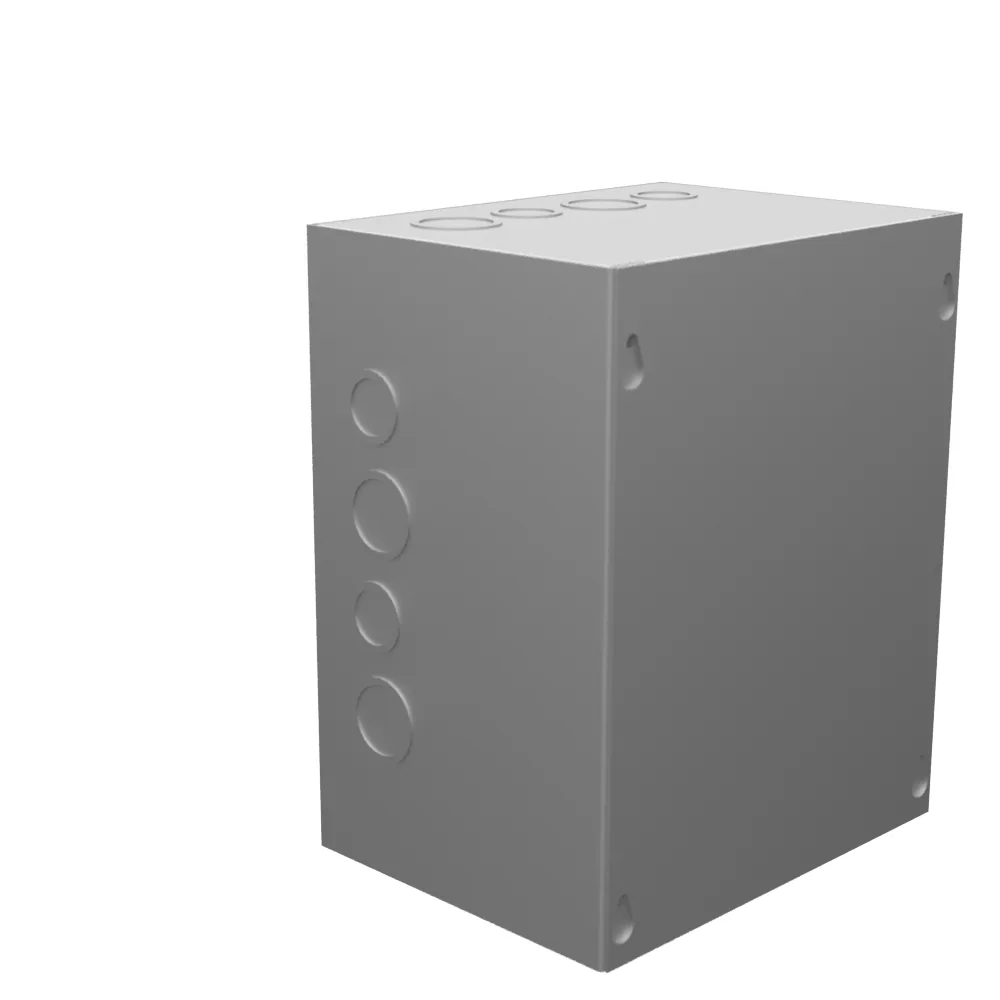

10x6x8 Screw Cover Type 1 UL Listed Steel Knockouts No Paint Cover with Teardrop Slots Mounting Holes in Back
- Milbank #
- 8106-SC1-NP
- UPC
- 784572310056
The Milbank 8106-SC1-NP is a screw cover used as an enclosure for mounting electrical equipment. It belongs to Milbank's SC1C product family. It falls under Milbank's screw cover enclosures line, which electricians and contractors use when mounting or protecting electrical equipment on commercial and industrial job sites. It carries a Type 1 rating, which describes the level of protection the enclosure provides against its installed environment. The product is manufactured to meet UL Listed requirements. It is built from G90 Galvanized Steel. It is finished in Unpainted. Cable entry is configured as knockouts. It is designed for wall mount. The hinge type is no hinge. The door configuration is cover. It closes with cover secured with plated screws. Overall dimensions are 6.0 IN long by 8.0 IN wide by 10.0 IN high. It is sold per each. A manufacturer spec sheet is available for this part number for reference during submittal or installation.
$711.14 MXN + VAT
| Price before IVA | $711.14 MXN |
|---|---|
| Total incl. 16% IVA | $824.92 MXN |
| Total incl. 8% IVA (border region) | $768.03 MXN |
Converted from USD $39.48 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | KnockoutsKnockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Knockouts | TrueTrue |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 1Type 1 |
| Number Of Outlet | 00 |
| Size | 6L x 8W x 10H6L x 8W x 10H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 10 in25.4 cm |
| Length | 6 in15.2 cm |
| Width | 8 in20.3 cm |
