10x4x8 Screw Cover Type 1, 12 and 3R UL Listed Steel No Knockouts No Paint Gasket in Lid Stainless Steel Screws Grounding Stud
- Milbank #
- 8104-WSC2-NP
- UPC
- 784572619227

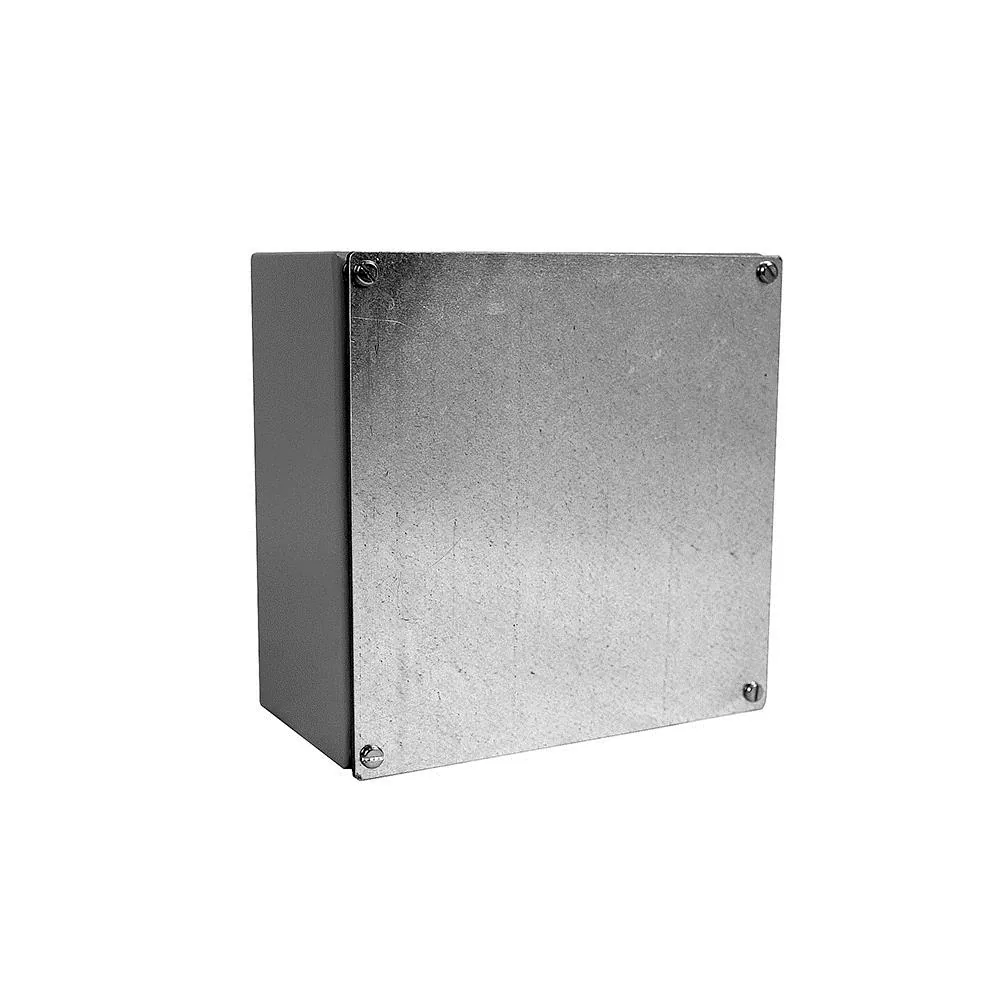

The Milbank 8104-WSC2-NP is a screw cover used as an enclosure for mounting electrical equipment. It belongs to Milbank's CNSP product family. It falls under Milbank's screw cover enclosures line, which electricians and contractors use when mounting or protecting electrical equipment on commercial and industrial job sites. It carries a Type 1;Type 3R;Type 12 rating, which describes the level of protection the enclosure provides against its installed environment. The product is manufactured to meet UL Listed requirements. It is built from G90 Galvanized Steel. It is finished in ANSI 61 Gray. Cable entry is configured as no knockouts. It is designed for surface mount. The hinge type is no hinge. The door configuration is 1 gasketed door. It closes with cover secured with captivated screws. Overall dimensions are 4.0 IN long by 8.0 IN wide by 10.0 IN high. It is sold per each. A manufacturer spec sheet is available for this part number for reference during submittal or installation.
$1,720.93 MXN + VAT
| Price before IVA | $1,720.93 MXN |
|---|---|
| Total incl. 16% IVA | $1,996.28 MXN |
| Total incl. 8% IVA (border region) | $1,858.60 MXN |
Converted from USD $95.54 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 1 Gasketed Door1 Gasketed Door |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Captivated ScrewsCover Secured with Captivated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Surface MountSurface Mount |
| NEMA Rating | Type 1;Type 3R;Type 12Type 1;Type 3R;Type 12 |
| Number Of Outlet | 00 |
| Size | 4L x 8W x 10H4L x 8W x 10H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 10 in25.4 cm |
| Length | 4 in10.2 cm |
| Width | 8 in20.3 cm |
