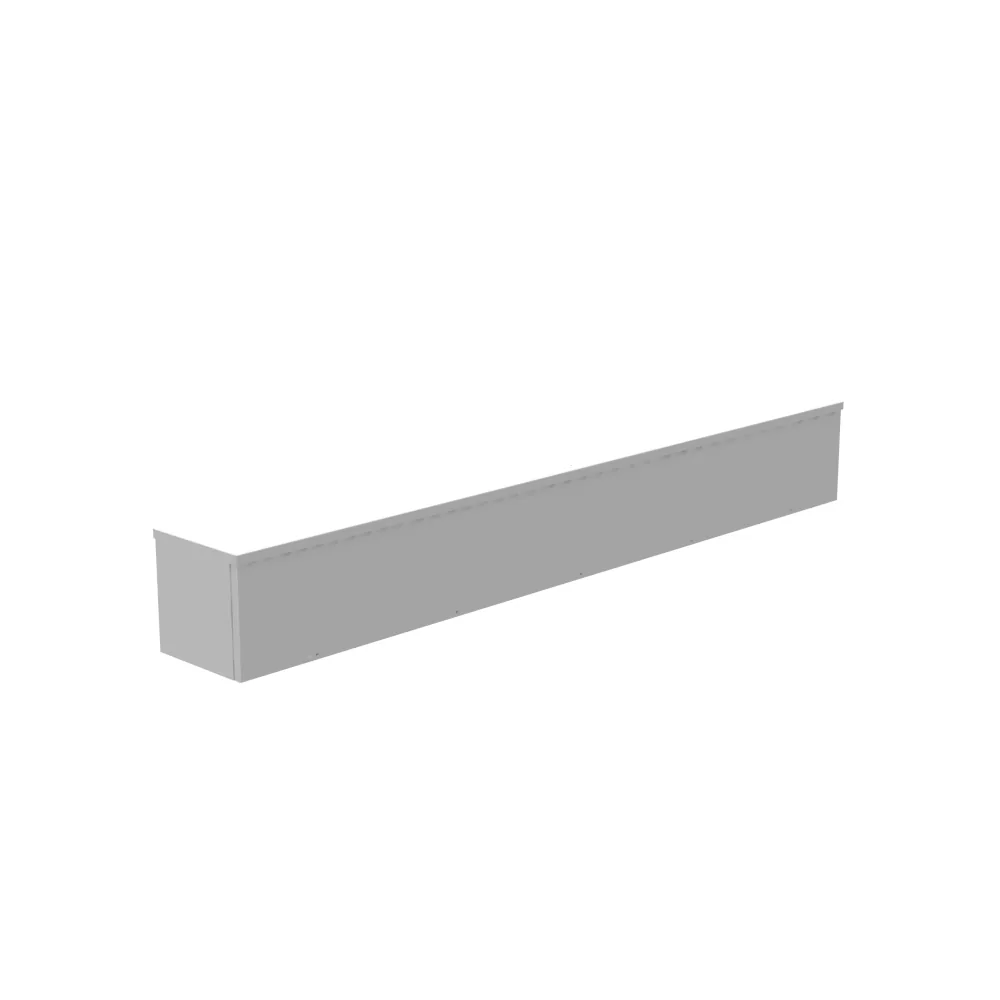

6X96X6 Screw Cover Wireway UL Listed Type 3R Steel Knockouts ANSI 61 Gray Quad D Knockout for Lock
- Milbank #
- 6696-GSC3R
- UPC
- 784572108349
Milbank 6696-GSC3R is a screw-cover wireway rated Type 3R, part of Milbank's GS3R product family. It is categorized under wireway for use in wireways applications. It is constructed of G90 galvanized steel with an ANSI 61 gray powder coat finish. Overall dimensions are 96.0 in. long by 6.0 in. wide by 6.0 in. high. The nominal cross section is 6x6. The straight section length is 96 in. It includes key locking cylinder latch provision as a special feature. It is built to the UL Listed standard. The NEMA/enclosure rating is Type 3R, indicating where it is suited for indoor or outdoor use. Electricians and contractors use this screw-cover wireway to route and protect branch-circuit or feeder conductors between panels, disconnects, and other equipment, joining or terminating GS3R wireway sections as the run requires. A manufacturer spec sheet is available for the exact dimensions and ratings shown above.
$8,925.47 MXN + VAT
| Price before IVA | $8,925.47 MXN |
|---|---|
| Total incl. 16% IVA | $10,353.55 MXN |
| Total incl. 8% IVA (border region) | $9,639.51 MXN |
Converted from USD $495.51 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Outdoor EnclosureOutdoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 6 in15.2 cm |
| Knockouts | TrueTrue |
| Length | 96 in243.8 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 3RType 3R |
| Nominal Cross Section | 6x66x6 |
| Special Features | Key Locking Cylinder Latch ProvisionKey Locking Cylinder Latch Provision |
| Standard | UL ListedUL Listed |
| Straight Section Length | 9696 |
| Type | Wiring TroughWiring Trough |
| Width | 6 in15.2 cm |
