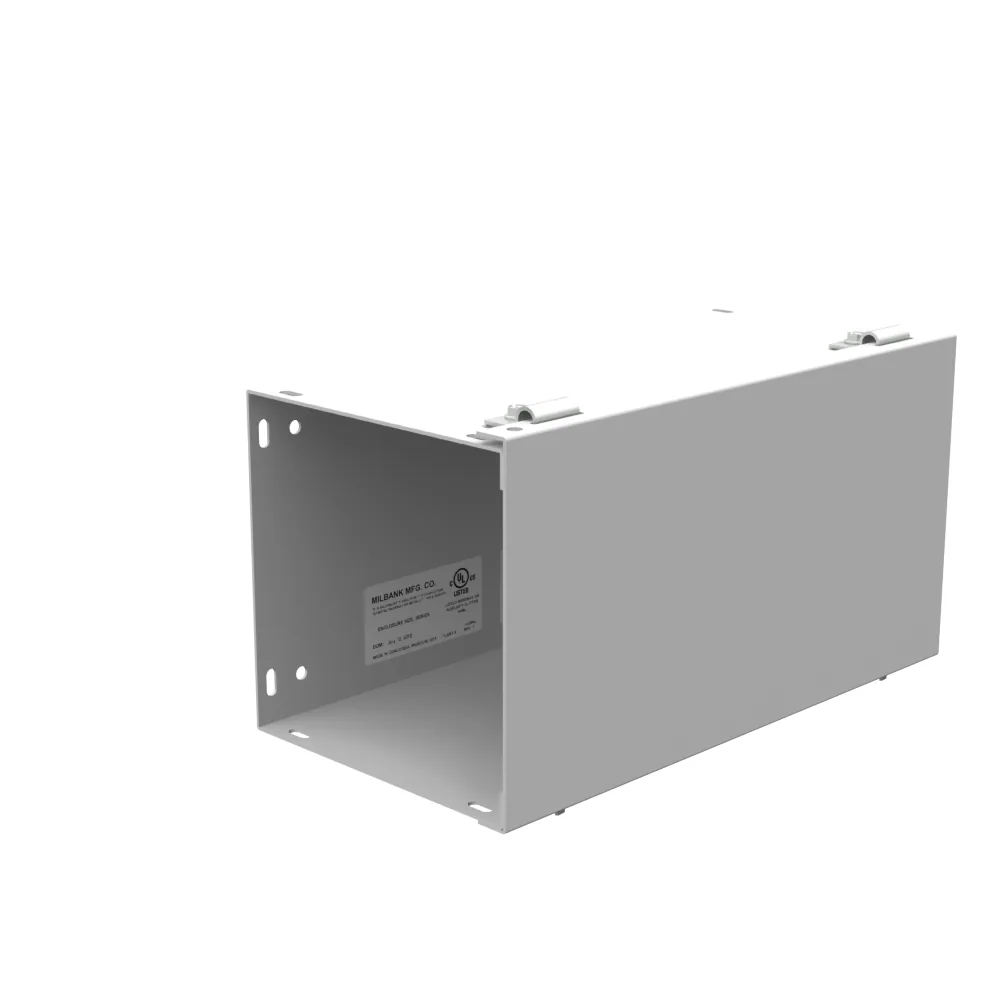

6X12X6 Hinge Cover Wireway UL Listed Type 1 Steel No Knockouts ANSI 61 Gray
- Milbank #
- 6612-GHC1-NK
- UPC
- 784572107717
The Milbank 6612-GHC1-NK is a wireway hinge cover section from the GHC1 family, rated Type 1. It carries UL Listed recognition. It is sized for 6x6 raceway runs with a 12 in straight section length. It is intended for use as a wireway, giving electricians a raceway section for pulling, splicing, and routing conductors between equipment. The finish is ANSI 61 Gray Powder Coat Finish. Construction is steel. Overall dimensions are listed as 12 in long by 6 in wide by 6 in high. A manufacturer spec sheet is available for the Milbank 6612-GHC1-NK for electricians and engineers who need to confirm dimensions before rough-in.
$817.60 MXN + VAT
| Price before IVA | $817.60 MXN |
|---|---|
| Total incl. 16% IVA | $948.42 MXN |
| Total incl. 8% IVA (border region) | $883.01 MXN |
Converted from USD $45.39 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Hinge CoverHinge Cover |
| Enclosure | Indoor EnclosureIndoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 6 in15.2 cm |
| Knockouts | FalseFalse |
| Length | 12 in30.5 cm |
| Material | SteelSteel |
| NEMA Rating | Type 1Type 1 |
| Nominal Cross Section | 6x66x6 |
| Standard | UL ListedUL Listed |
| Straight Section Length | 1212 |
| Type | Lay In WirewayLay In Wireway |
| Width | 6 in15.2 cm |
