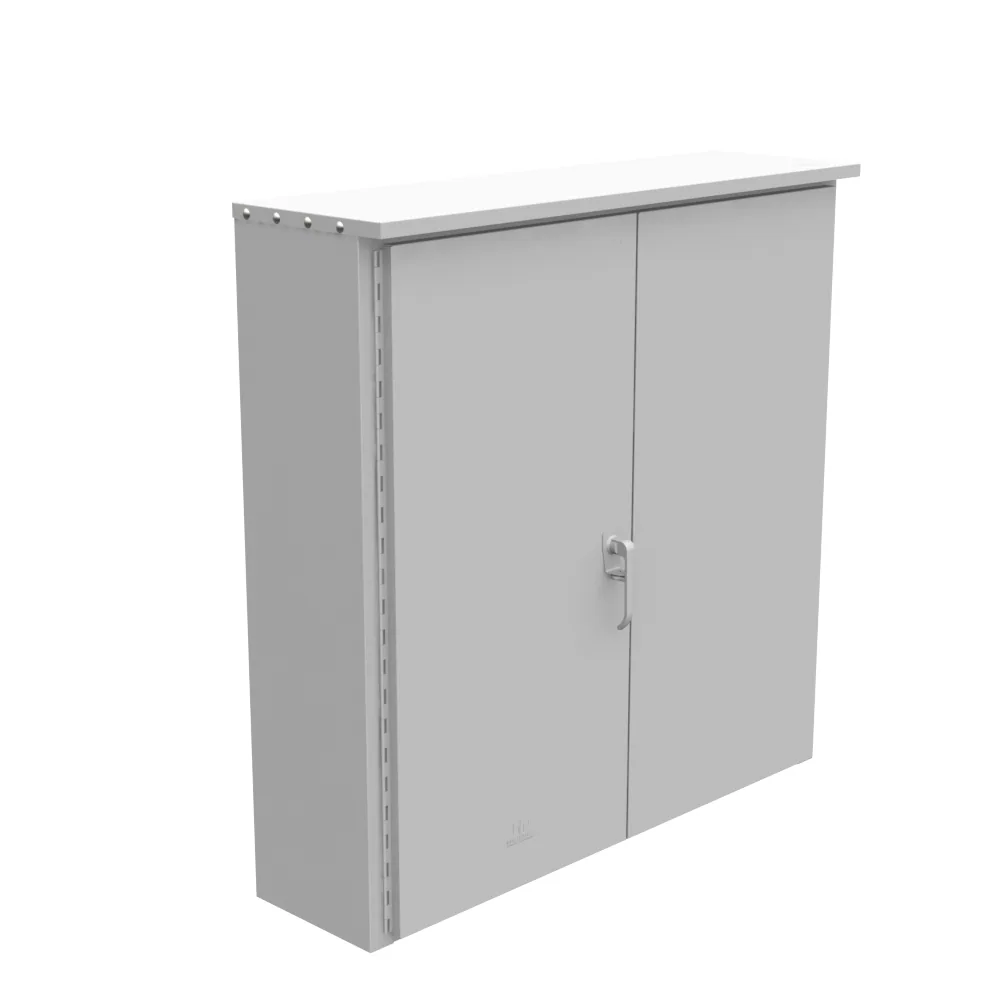

48X12X48 Hinge Cover UL Listed Type 3R Steel No Knockouts ANSI 61 Gray Double Doors Back Panel Weld Studs Padlocking 3PT Handle Wood Back Board Installed Back Stiffeners
- Milbank #
- 484812-CT3R-SP
- UPC
- 784572202696
48x12x48 Hinge Cover Type 3R UL Listed Steel No Knockouts ANSI 61 Gray Back Stiffeners Continuous Hinge Double Doors Handle On Left Padlocking 3 Point Handle Drip Shield
List price
$50,291.28 MXN + VAT
| Price before IVA | $50,291.28 MXN |
|---|---|
| Total incl. 16% IVA | $58,337.88 MXN |
| Total incl. 8% IVA (border region) | $54,314.58 MXN |
Converted from USD $2,791.99 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Current Transformer EnclosureCurrent Transformer Enclosure |
|---|---|
| Back Panel | Mounting Emboss on Enclosure BackMounting Emboss on Enclosure Back |
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Door or Cover | Double DoorDouble Door |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Pad Mount or Wall MountPad Mount or Wall Mount |
| NEMA Rating | Type 3RType 3R |
| Size | 12L x 48W x 48H12L x 48W x 48H |
| Special Features | Mounting Emboss on Enclosure Back; Body StiffenersMounting Emboss on Enclosure Back; Body Stiffeners |
| Standard | UL ListedUL Listed |
| Type | Hinge CoverHinge Cover |
| Height | 48 in121.9 cm |
| Length | 12 in30.5 cm |
| Width | 48 in121.9 cm |
