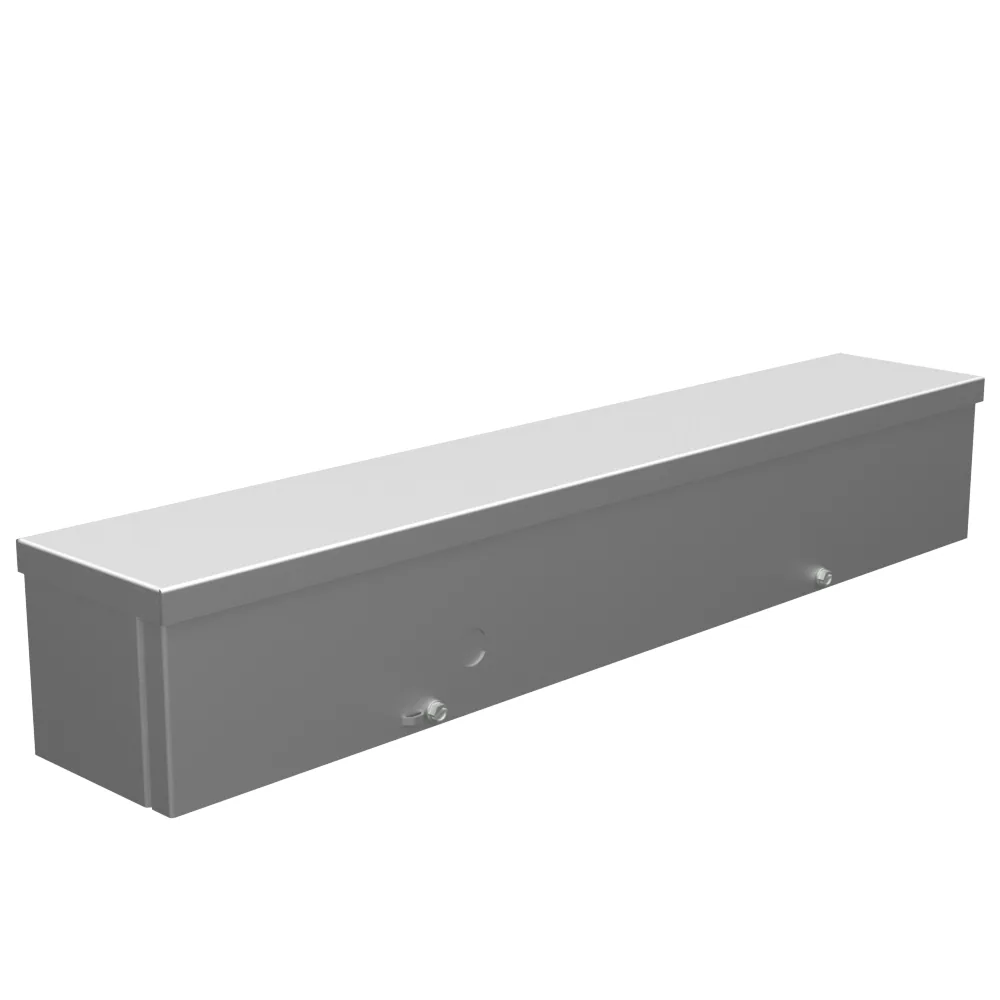

4X24X4 Screw Cover Wireway UL Listed Type 3R Steel No Knockouts No Paint Quad D Knockout for Lock
- Milbank #
- 4424-GSC3R-NK-NP
- UPC
- 784572161764
The Milbank 4424-GSC3R-NK-NP is a screw cover steel wireway that measures 4x24x4 in. and carries a NEMA type 3R rating. It carries UL Listing. Electricians specify an outdoor wireway like this to route and protect branch-circuit conductors between outdoor panels, disconnects, and equipment. The wireway body is built of G90 galvanized steel and finished in an unpainted mill finish. It ships with no factory knockouts, so conduit entries are cut in the field to suit the installation, or the enclosure is used where a flush surface is preferred. A quad-D knockout is provided for a keyed cylinder lock or padlock hasp, which lets the installation be secured after wiring is complete. This item is listed under Milbank's GS3R product family in the Wireways line, with a unit of measure of each.
$1,559.36 MXN + VAT
| Price before IVA | $1,559.36 MXN |
|---|---|
| Total incl. 16% IVA | $1,808.86 MXN |
| Total incl. 8% IVA (border region) | $1,684.11 MXN |
Converted from USD $86.57 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Outdoor EnclosureOutdoor Enclosure |
| Finish | UnpaintedUnpainted |
| Height | 4 in10.2 cm |
| Knockouts | FalseFalse |
| Length | 24 in61.0 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 3RType 3R |
| Nominal Cross Section | 4x44x4 |
| Special Features | Key Locking Cylinder Latch ProvisionKey Locking Cylinder Latch Provision |
| Standard | UL ListedUL Listed |
| Straight Section Length | 2424 |
| Type | Wiring TroughWiring Trough |
| Width | 4 in10.2 cm |
