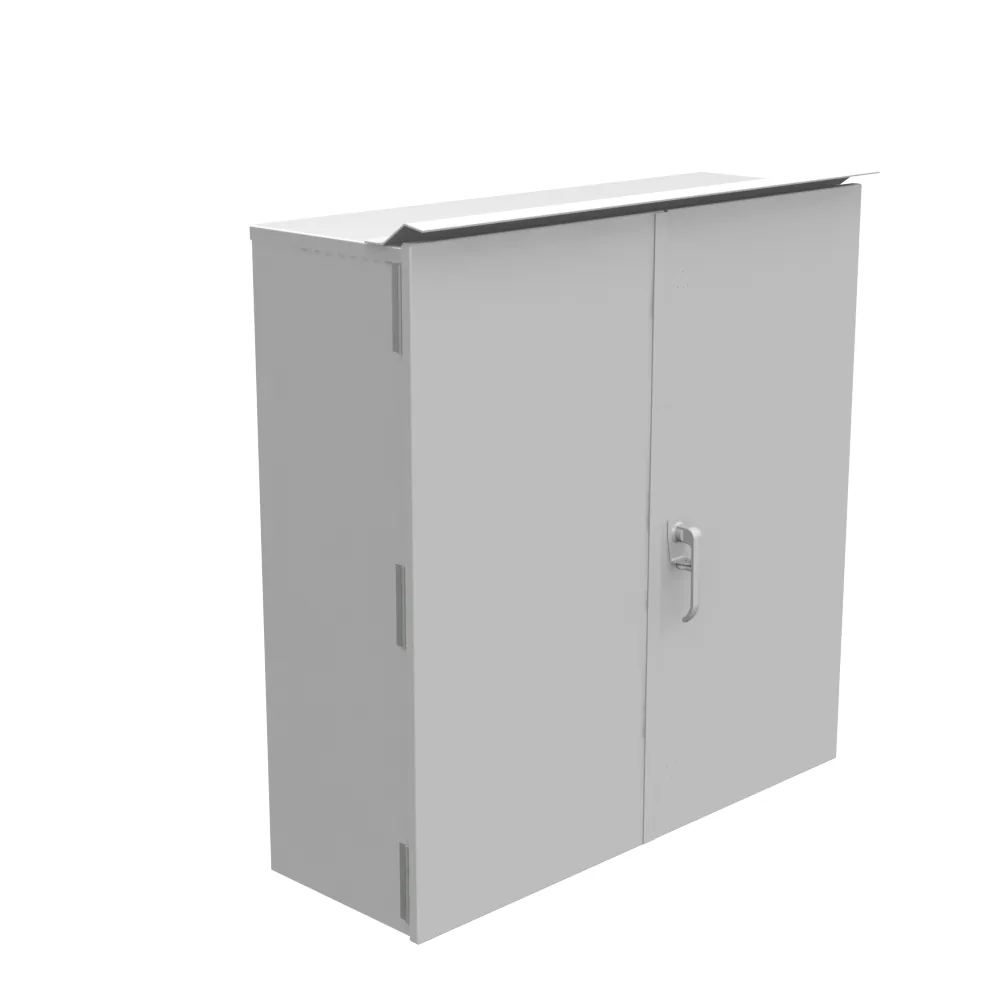

Hinge Cover NEMA 3R Steel No Knockouts ANSI 61 Gray Double Doors Special Drip Shield
- Milbank #
- 424214-CT3R-SP1
- UPC
- 784572270732
42H x 14L x 42W Type 3R Double Door Hinged With 3 Point Padlockable Latch Drip Shield
List price
$24,335.70 MXN + VAT
| Price before IVA | $24,335.70 MXN |
|---|---|
| Total incl. 16% IVA | $28,229.41 MXN |
| Total incl. 8% IVA (border region) | $26,282.56 MXN |
Converted from USD $1,351.03 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Current Transformer EnclosureCurrent Transformer Enclosure |
|---|---|
| Back Panel | Mounting Emboss on Enclosure BackMounting Emboss on Enclosure Back |
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Depth | 4242 |
| Door or Cover | Double DoorDouble Door |
| Handle | Pad Lockable 3 Point LatchPad Lockable 3 Point Latch |
| Knockouts | FalseFalse |
| Length | 14.144 in35.9 cm |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Pad Mount or Wall MountPad Mount or Wall Mount |
| NEMA Rating | Type 3RType 3R |
| Size | 14L x 42W x 42H14L x 42W x 42H |
| Special Features | Mounting Emboss on Enclosure BackMounting Emboss on Enclosure Back |
| Standard | UL ListedUL Listed |
| Type | Hinge CoverHinge Cover |
| Width | 43 in109.2 cm |
| Height | 42.251 in107.3 cm |
