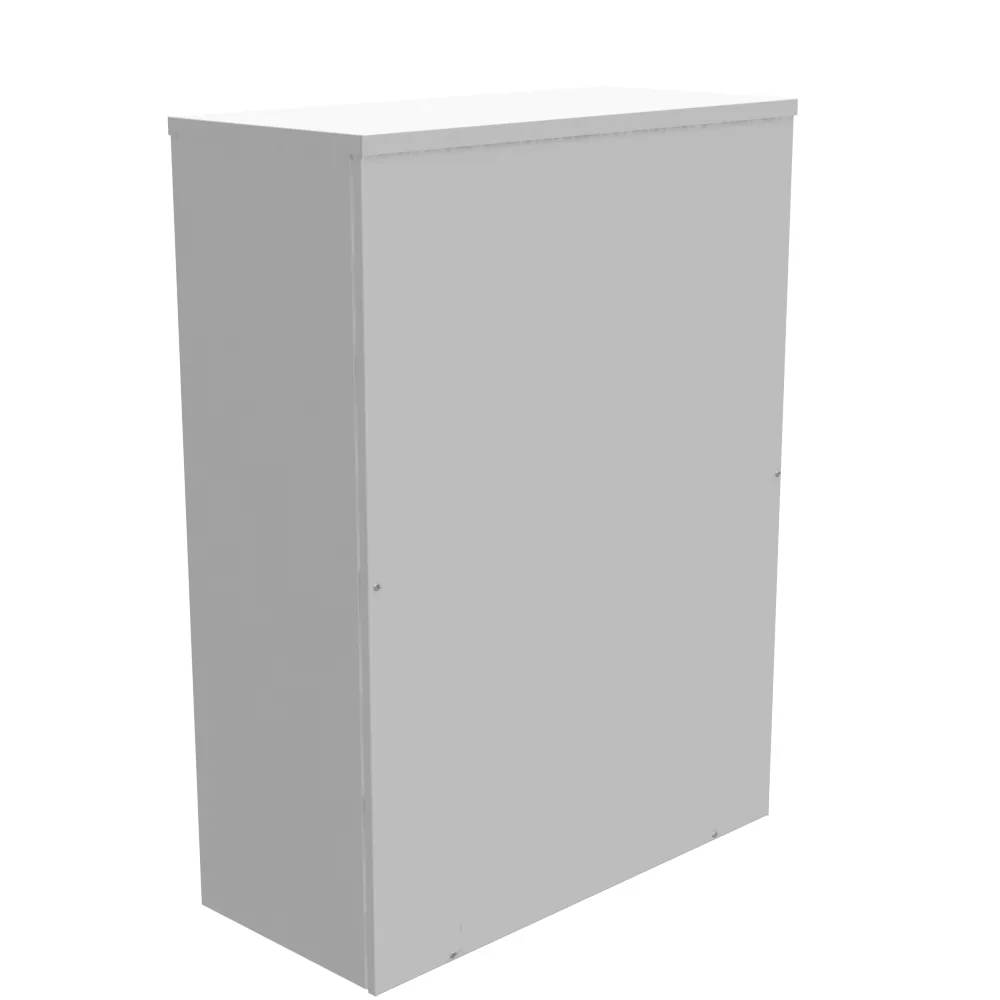

48x16x36 Screw Cover Type 3R UL Listed Steel No Knockouts ANSI 61 Gray Quad D Knockout for Lock Emboss Mounting Holes in Back
- Milbank #
- 364816-SC3R-NK
- UPC
- 784572238077
List price
$24,254.64 MXN + VAT
| Price before IVA | $24,254.64 MXN |
|---|---|
| Total incl. 16% IVA | $28,135.38 MXN |
| Total incl. 8% IVA (border region) | $26,195.01 MXN |
Converted from USD $1,346.53 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 16L x 36W x 48H16L x 36W x 48H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 48 in121.9 cm |
| Length | 16 in40.6 cm |
| Width | 36 in91.4 cm |
