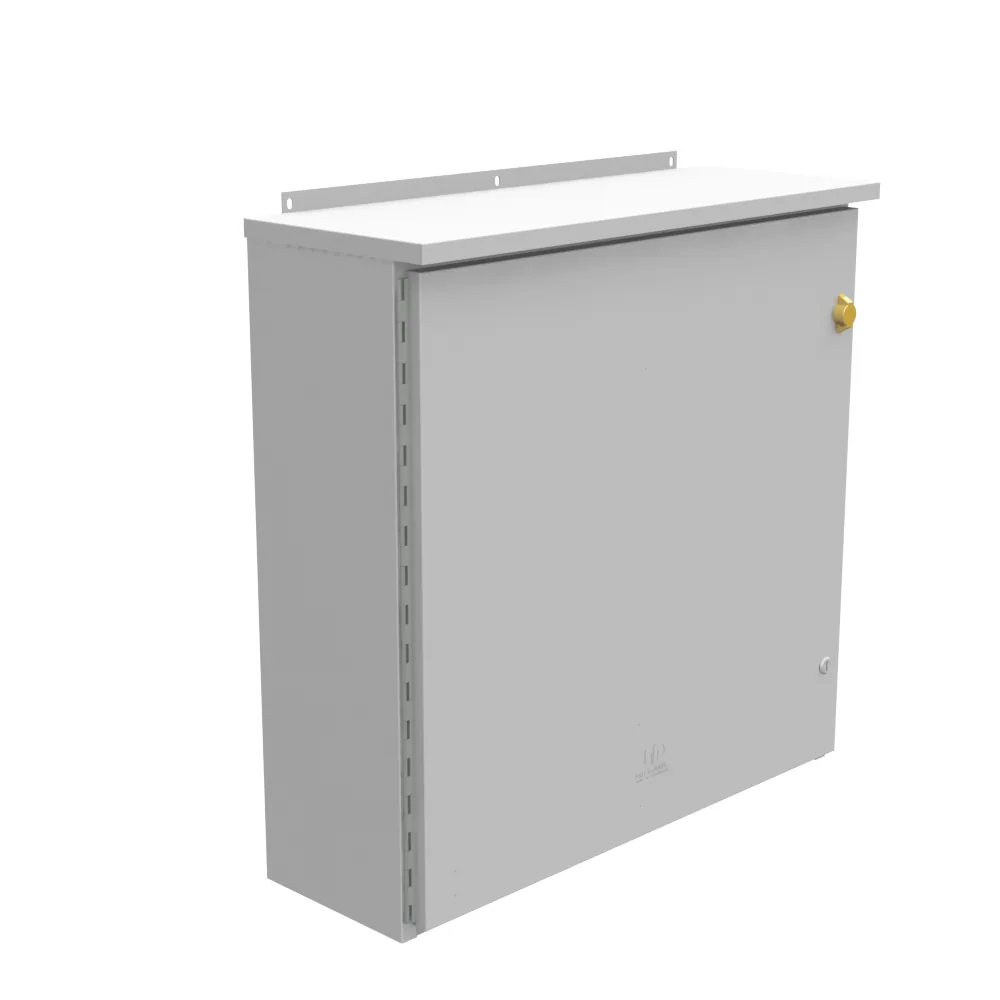

36X11X36 Hinge Cover UL Listed Type 3R Steel No Knockouts ANSI 61 Gray Double Doors Back Panel Weld Studs Padlocking 3PT Handle
- Milbank #
- 363611-CT3R-SP1
- UPC
- 784572543140
36x11x36 Hinge Cover Type 3R UL Listed Steel No Knockouts ANSI Gray Continuous Hinge Slotted Quarter Turn Latch Padlocking Wing Handle Weld Studs In Back Door Stiffener Ground Stud
List price
$23,623.84 MXN + VAT
| Price before IVA | $23,623.84 MXN |
|---|---|
| Total incl. 16% IVA | $27,403.65 MXN |
| Total incl. 8% IVA (border region) | $25,513.75 MXN |
Converted from USD $1,311.51 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Current Transformer EnclosureCurrent Transformer Enclosure |
|---|---|
| Back Panel | Mounting Emboss on Enclosure BackMounting Emboss on Enclosure Back |
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Door or Cover | Single DoorSingle Door |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Mounting Studs and External Mounting FeetMounting Studs and External Mounting Feet |
| NEMA Rating | Type 3RType 3R |
| Size | 11L x 36W x 36H11L x 36W x 36H |
| Special Features | Drip Shield; Stiffeners on Door; Continuous Hinge Cover; Ground StudDrip Shield; Stiffeners on Door; Continuous Hinge Cover; Ground Stud |
| Standard | UL ListedUL Listed |
| Type | Hinge CoverHinge Cover |
| Height | 36 in91.4 cm |
| Length | 11 in27.9 cm |
| Width | 36 in91.4 cm |
