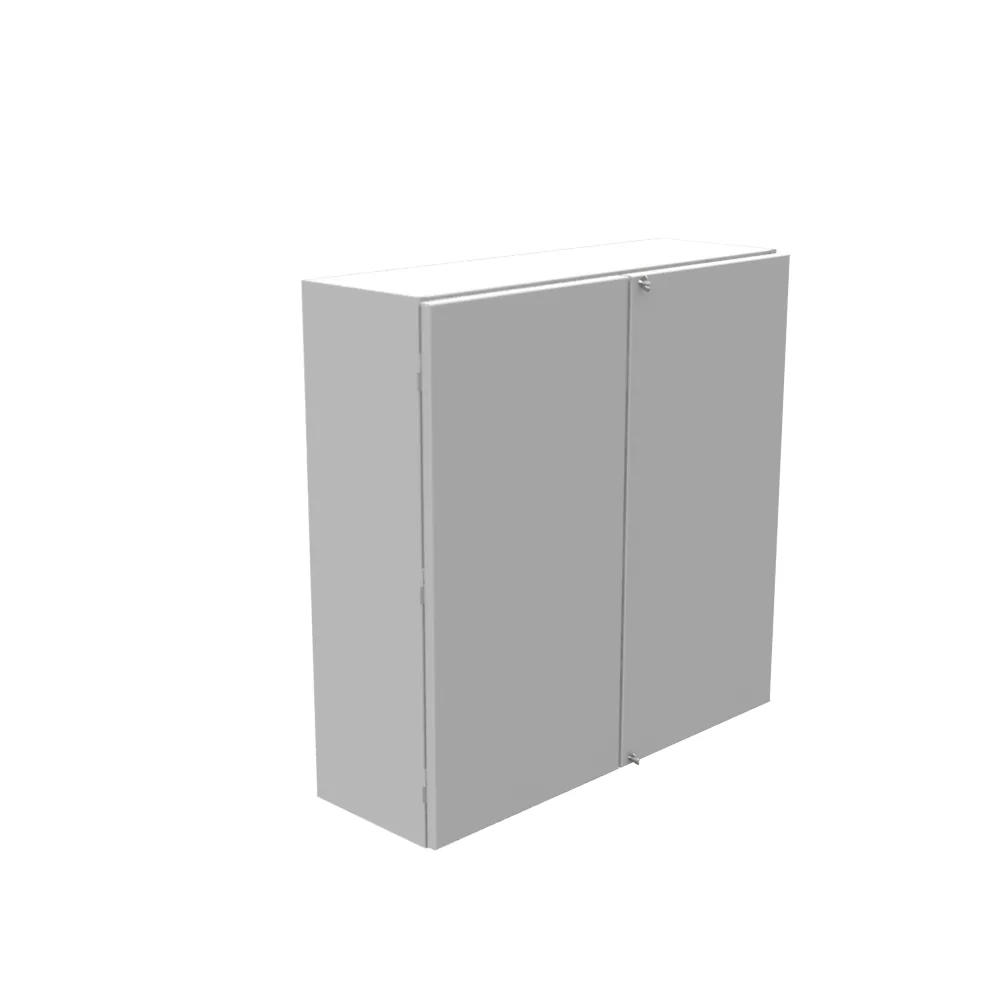

32X10X32 Hinge Cover UL Listed Type 1 Steel No Knockouts ANSI 61 Gray Overlapping Doors Padlocking Provision Drip Shield
- Milbank #
- 323210-CTC1-SP
- UPC
- 784572677791
32x10x32 Hinge Cover Type 1 UL Listed Steel ANSI 61 Gray Double Door Ground Studs Lift Off Hinges Wing Nut With Drilled Hole For Latching
List price
$15,298.73 MXN + VAT
| Price before IVA | $15,298.73 MXN |
|---|---|
| Total incl. 16% IVA | $17,746.53 MXN |
| Total incl. 8% IVA (border region) | $16,522.63 MXN |
Converted from USD $849.33 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 2 Doors2 Doors |
| Hinge Type | Lift Off HingesLift Off Hinges |
| Latch | Wing Nuts for LatchingWing Nuts for Latching |
| Material | Steel with Powder Coat FinishSteel with Powder Coat Finish |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 1Type 1 |
| Number Of Outlet | 00 |
| Size | 10L x 32W x 32H10L x 32W x 32H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Hinge CoverHinge Cover |
| Height | 32 in81.3 cm |
| Length | 10 in25.4 cm |
| Width | 32 in81.3 cm |
