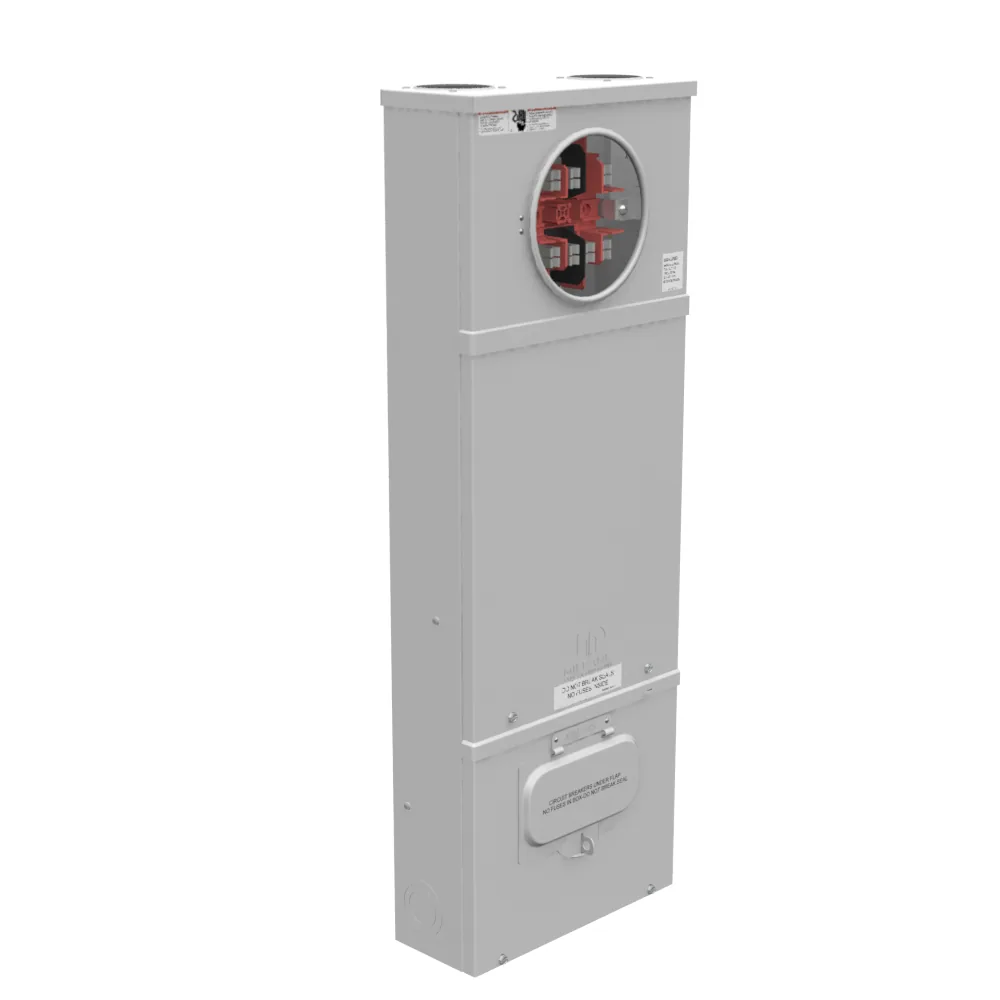

7-Jaw Meter Socket w/ Main Breaker
7 TERM RNGTP 2 SML CLS PLT TRIPLEX GND LNK BYPS 100 AMP MN BRKR 22KAIC 240V
- Milbank #
- 217MTB/22
- UPC
- 784572164451
The Milbank 217MTB/22 is a ring type meter socket used to meter electric service. It is classified by the manufacturer as meter socket with main. This meter socket is built for electric utility service metering rated 100 continuous ampere, up to 240 volts alternating current, 3 phase. It has a 7 terminal configuration for the utility meter. The unit includes one 100 ampere main breaker. The name designates a 22,000 A short circuit (interrupting) rating. A test block bypass is provided so the meter can be pulled without interrupting service to the load side. It accepts a line side wire range of 14 - 2/0 AWG and a load side wire range of 4 - 1/0 AWG. Grounding is provided by a ground lug. The enclosure uses a twin small closing plates. It is rated for 60 hertz service. Internal insulation is fiberglass with resin. The enclosure is constructed of g90 galvanized steel with powder coat finish. It carries a UL Listed and Type 3R listing. Overall dimensions are 4.625 in. L x 12 in. W x 34.25 in. H. It is sold by the each. It provides 1 position. It is equipped for 1 main breaker(s). A manufacturer spec sheet is available for this item. Arizona Electrical Solutions supplies the Milbank 217MTB/22 for electrical contractors and distributors sourcing enclosures products.
$30,273.40 MXN + VAT
| Price before IVA | $30,273.40 MXN |
|---|---|
| Total incl. 16% IVA | $35,117.14 MXN |
| Total incl. 8% IVA (border region) | $32,695.27 MXN |
Converted from USD $1,680.67 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 100 Continuous Ampere100 Continuous Ampere |
|---|---|
| Application | Meter Socket With MainMeter Socket With Main |
| Bypass Provision | Test Block BypassTest Block Bypass |
| Cable Entry | OverheadOverhead |
| Main Breaker Size | One 100 Ampere Main BreakerOne 100 Ampere Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground LugGround Lug |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Twin Small Closing PlatesTwin Small Closing Plates |
| Insulation | Fiberglass with ResinFiberglass with Resin |
| Number of Jaws | 7 Terminal7 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 14 - 2/0 AWG14 - 2/0 AWG |
| Load Side Wire Range | 4 - 1/0 AWG4 - 1/0 AWG |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 11 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 3 Phase3 Phase |
| Size | 4.625L x 12W x 34.25H4.625L x 12W x 34.25H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Single MechanicalSingle Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 34.25 in87.0 cm |
| Length | 4.625 in11.7 cm |
| Width | 12 in30.5 cm |
