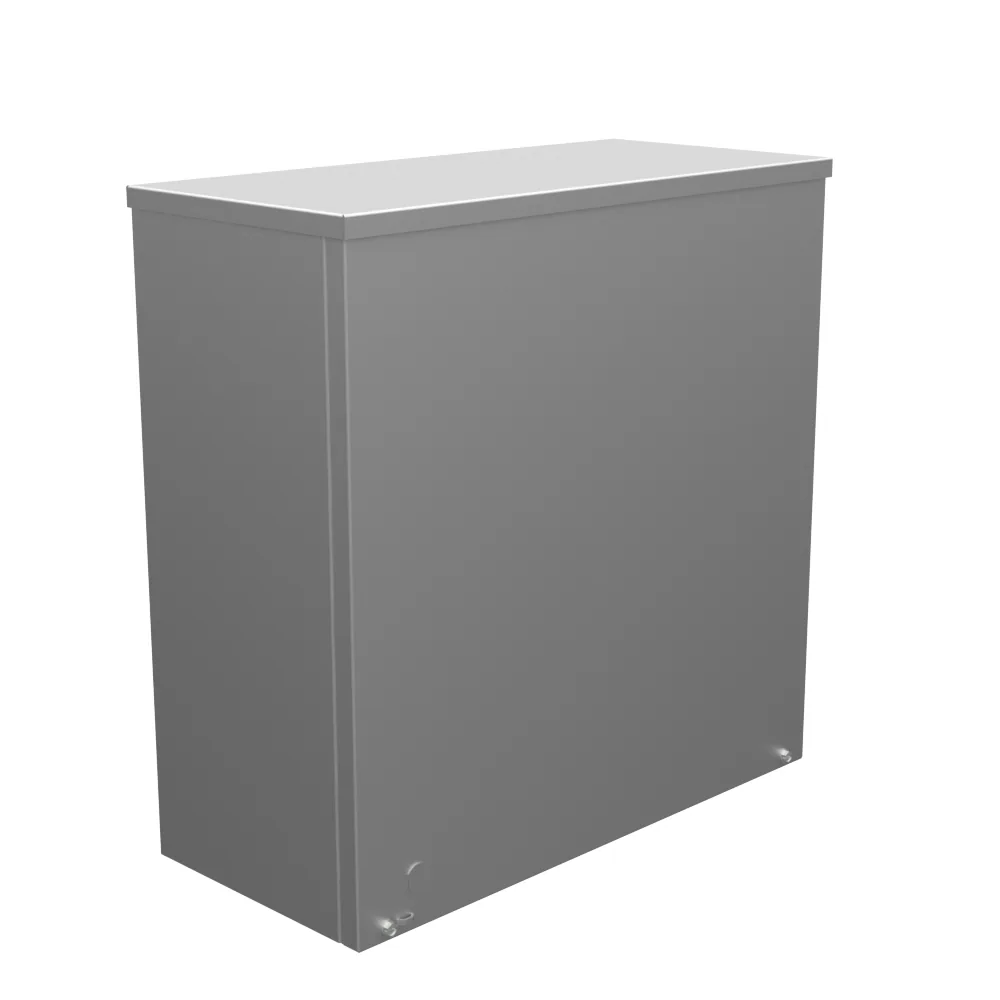

18X8X18 Screw Cover UL Listed Type 3R Steel No Knockouts No Paint Quad D Knockout for Lock
- Milbank #
- 18188-SC3R-NK-NP
- UPC
- 784572194175
The Milbank 18188-SC3R-NK-NP is a screw cover carrying a NEMA Type 3R rating, listed under the Milbank SC3R product family. It is built of g90 galvanized steel with welded construction and finished in Unpainted. The door type is listed as cover. Hinges are no hinge. It closes with cover secured with plated screws. Cable entry is provided as no knockouts. The 18188-SC3R-NK-NP is intended for wall mount installation with a drip shield top. Overall dimensions are listed as 8.0 IN, 18.0 IN, and 18.0 IN for length, width, and height respectively. It carries a UL Listed designation. It is cataloged under Screw Cover Enclosures for electricians and contractors sourcing NEMA-rated enclosure components for panel, meter, and equipment installations. Unit of sale is each.
$3,694.40 MXN + VAT
| Price before IVA | $3,694.40 MXN |
|---|---|
| Total incl. 16% IVA | $4,285.50 MXN |
| Total incl. 8% IVA (border region) | $3,989.95 MXN |
Converted from USD $205.10 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 8L x 18W x 18H8L x 18W x 18H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 18 in45.7 cm |
| Length | 8 in20.3 cm |
| Width | 18 in45.7 cm |
