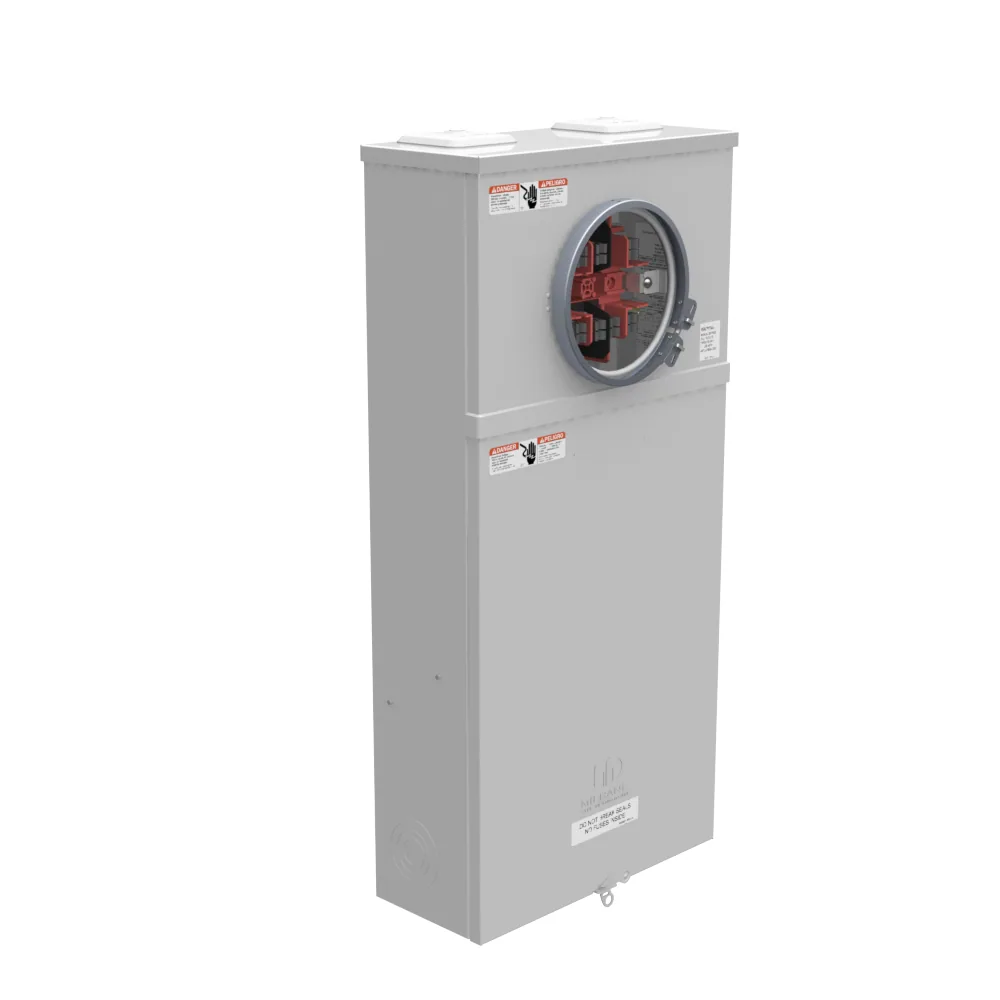

Meter Socket
7 TERM RNGTP 2 SML CLS PLT 3 POS GND LNK BYPS 200 AMP
- Milbank #
- 127TB
- UPC
- 784572102491
Milbank 127TB is a meter socket, UL Listed. It falls under the Meter Sockets line from Milbank. It is intended as a meter socket, used by electricians and contractors when mounting or protecting electrical equipment in the field. The unit is built from g90 galvanized steel with powder coat. It is designed for surface mount. Cable entry is provided via overhead or underground. Overall dimensions are 30.0 inches high by 14.125 inches wide by 6.0 inches deep. As a meter socket, it provides 7 terminal jaws, three-phase service, an amperage rating of 200 continuous ampere, a voltage rating of up to 600 volts alternating current. It includes test block bypass for meter bypass during service.
$19,411.21 MXN + VAT
| Price before IVA | $19,411.21 MXN |
|---|---|
| Total incl. 16% IVA | $22,517.00 MXN |
| Total incl. 8% IVA (border region) | $20,964.11 MXN |
Converted from USD $1,077.64 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 200 Continuous Ampere200 Continuous Ampere |
|---|---|
| Application | Meter SocketMeter Socket |
| Bypass Provision | Test Block BypassTest Block Bypass |
| Cable Entry | Overhead or UndergroundOverhead or Underground |
| Main Breaker Size | No Main BreakerNo Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground LugGround Lug |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Twin Small Closing PlatesTwin Small Closing Plates |
| Insulation | Fiberglass with ResinFiberglass with Resin |
| Number of Jaws | 7 Terminal7 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 1/0 - 250 kcmil1/0 - 250 kcmil |
| Load Side Wire Range | 1/0 - 250 kcmil1/0 - 250 kcmil |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 00 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 3 Phase3 Phase |
| Size | 6L x 14.125W x 30H6L x 14.125W x 30H |
| Special Features | EURSERC Dwg #305,311EURSERC Dwg #305,311 |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Single MechanicalSingle Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 600 Volts Alternating CurrentUp to 600 Volts Alternating Current |
| Height | 30 in76.2 cm |
| Length | 6 in15.2 cm |
| Width | 14.125 in35.9 cm |
