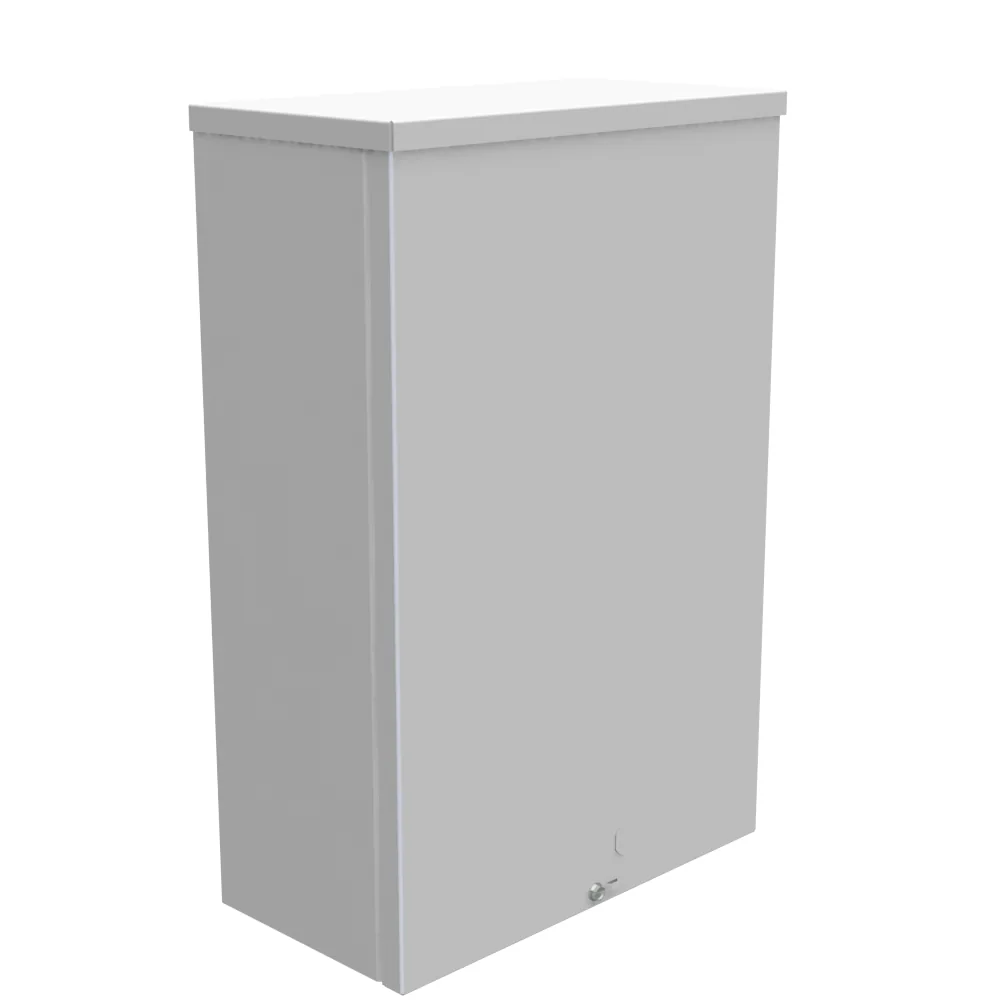

18X6X12 Screw Cover UL Listed Type 3R Steel Knockouts ANSI 61 Gray Quad D Knockout for Lock
- Milbank #
- 12186-SC3R
- UPC
- 784572102118
18x6x12 Screw Cover Type 3R UL Listed Steel Knockouts ANSI 61 Gray Quad D Knockout For Lock Emboss Mounting Hole In Back
List price
$2,128.56 MXN + VAT
| Price before IVA | $2,128.56 MXN |
|---|---|
| Total incl. 16% IVA | $2,469.13 MXN |
| Total incl. 8% IVA (border region) | $2,298.84 MXN |
Converted from USD $118.17 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | KnockoutsKnockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Knockouts | TrueTrue |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 6L x 12W x 18H6L x 12W x 18H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 18 in45.7 cm |
| Length | 6 in15.2 cm |
| Width | 12 in30.5 cm |
