12x8x12 Screw Cover Type 3R UL Listed No Knockouts No Paint Quad D Knockout for Lock Emboss Mounting Holes in Back
- Milbank #
- 12128-SC3R-NK-NP
- UPC
- 784572193062

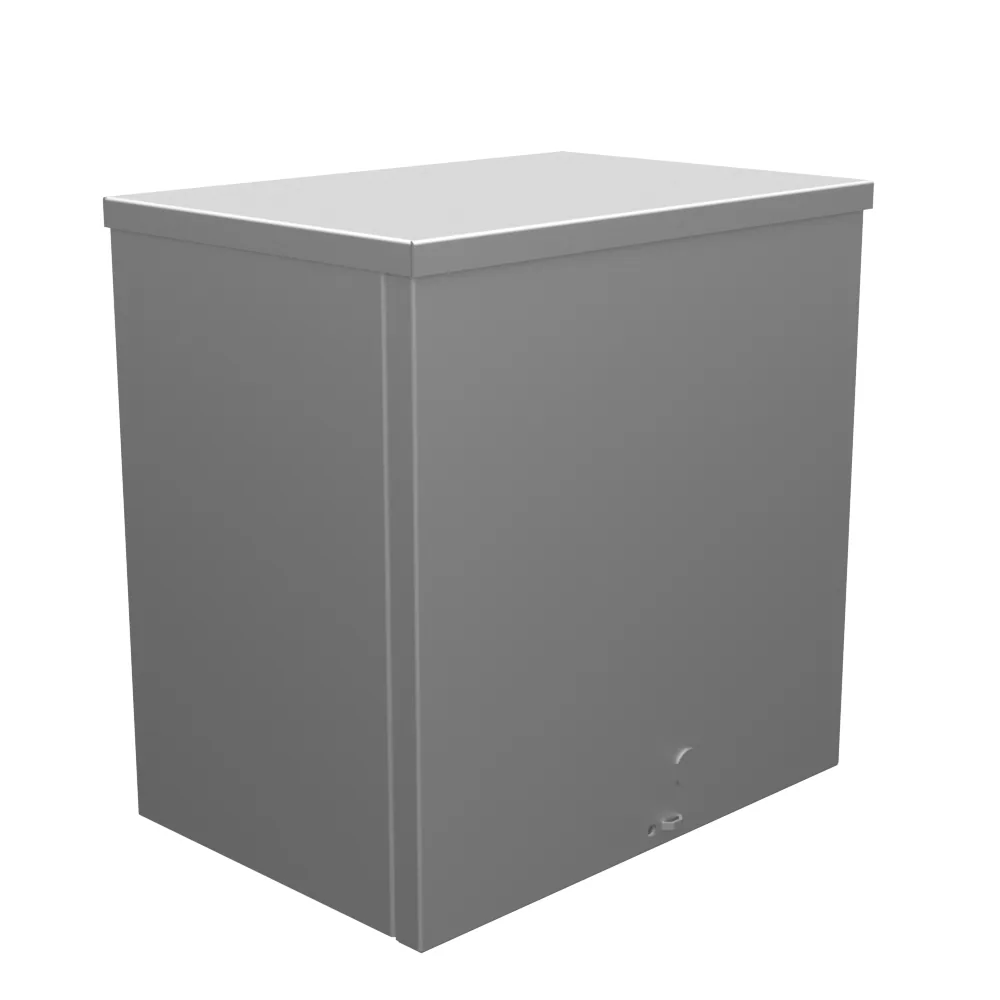

The Milbank 12128-SC3R-NK-NP is an electrical enclosure measuring 12x8x12 inches, part of the Milbank SC3R line. It carries a NEMA Type 3R rating. It is UL Listed. It is intended for use as enclosure for mounting electrical equipment, giving contractors and electricians a place to mount, route, or terminate electrical wiring and equipment. It is designed for wall mount. It ships with no knockouts, leaving conduit entry points to be field-drilled or punched as needed. It is constructed of g90 galvanized steel. Construction is described as welded. Its color is listed as Unpainted. It is a screw cover type unit. The door configuration is described as cover. The latch is described as cover secured with plated screws. The top is described as drip shield top.
$1,881.07 MXN + VAT
| Price before IVA | $1,881.07 MXN |
|---|---|
| Total incl. 16% IVA | $2,182.04 MXN |
| Total incl. 8% IVA (border region) | $2,031.56 MXN |
Converted from USD $104.43 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 8L x 12W x 12H8L x 12W x 12H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 12 in30.5 cm |
| Length | 8 in20.3 cm |
| Width | 12 in30.5 cm |
