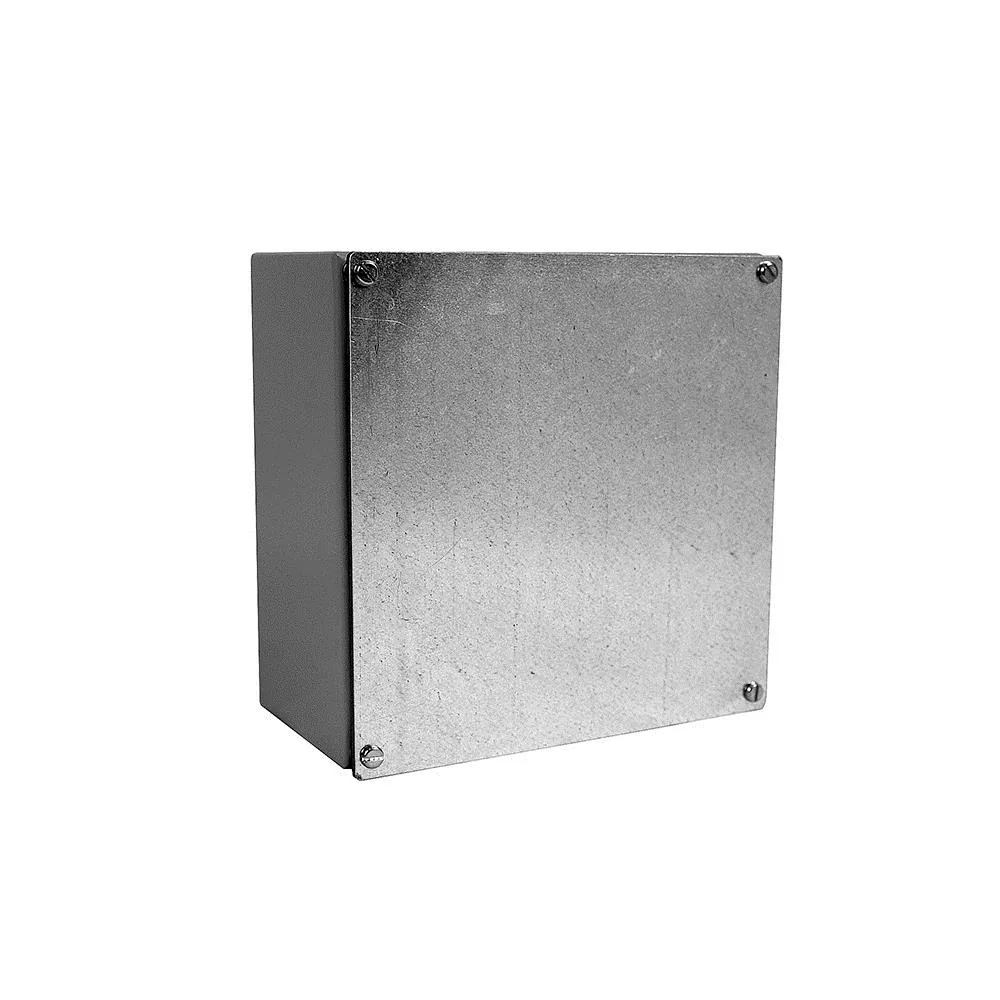

12X6X12 Screw Cover UL Listed Type 1-12-3R Steel No Knockouts No Paint Gray Gasket in Lid Stainless Steel Screws
- Milbank #
- 12126-WSC2-NP
- UPC
- 784572619302
The Milbank 12126-WSC2-NP is an electrical enclosure measuring 12x6x12 inches, part of the Milbank CNSP line. It carries a NEMA Type 1, Type 3R, Type 12 rating. It is UL Listed. It is intended for use as enclosure for mounting electrical equipment, giving contractors and electricians a place to mount, route, or terminate electrical wiring and equipment. It is designed for surface mount. It ships with no knockouts, leaving conduit entry points to be field-drilled or punched as needed. It is constructed of g90 galvanized steel. Construction is described as welded. Its color is listed as ANSI 61 Gray. It is a screw cover type unit. The door configuration is described as 1 gasketed door. The latch is described as cover secured with captivated screws. The top is described as plain top.
$2,844.75 MXN + VAT
| Price before IVA | $2,844.75 MXN |
|---|---|
| Total incl. 16% IVA | $3,299.91 MXN |
| Total incl. 8% IVA (border region) | $3,072.33 MXN |
Converted from USD $157.93 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 1 Gasketed Door1 Gasketed Door |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Captivated ScrewsCover Secured with Captivated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Surface MountSurface Mount |
| NEMA Rating | Type 1;Type 3R;Type 12Type 1;Type 3R;Type 12 |
| Number Of Outlet | 00 |
| Size | 6L x 12W x 12H6L x 12W x 12H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 12 in30.5 cm |
| Length | 6 in15.2 cm |
| Width | 12 in30.5 cm |
