12X4X12 Screw Cover UL Listed Type 3R Steel No Knockouts ANSI 61 Gray Quad D Knockout for Lock
- Milbank #
- 12124-SC3R-NK
- UPC
- 784572101180

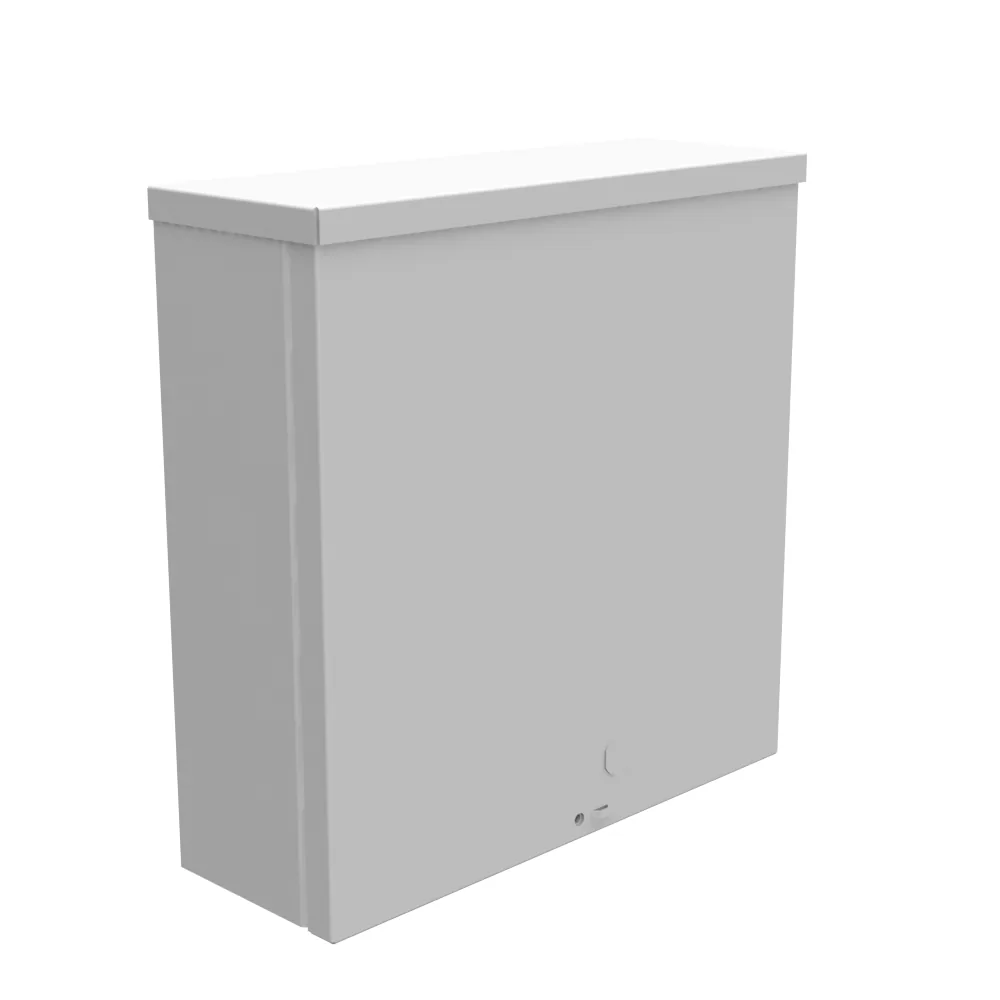

The Milbank 12124-SC3R-NK is a G90 galvanized steel screw cover enclosure rated Type 3R, UL listed. Enclosures of this type are used by electricians and contractors to house and protect terminations, wiring devices, or control components mounted to a panel or equipment pad. It measures approximately 4 in by 12 in by 12 in. It is supplied with no factory knockouts. It is intended for wall mount. Separately from the main cable entry, a quad-D knockout is provided on the cover for adding a padlock. The top includes a drip shield to help shed water away from the cover seam. This item is part of the Milbank Screw Cover Enclosures line and is intended for use by licensed electricians and electrical contractors on commercial and industrial installations.
$684.12 MXN + VAT
| Price before IVA | $684.12 MXN |
|---|---|
| Total incl. 16% IVA | $793.58 MXN |
| Total incl. 8% IVA (border region) | $738.85 MXN |
Converted from USD $37.98 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 4L x 12W x 12H4L x 12W x 12H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 12 in30.5 cm |
| Length | 4 in10.2 cm |
| Width | 12 in30.5 cm |
