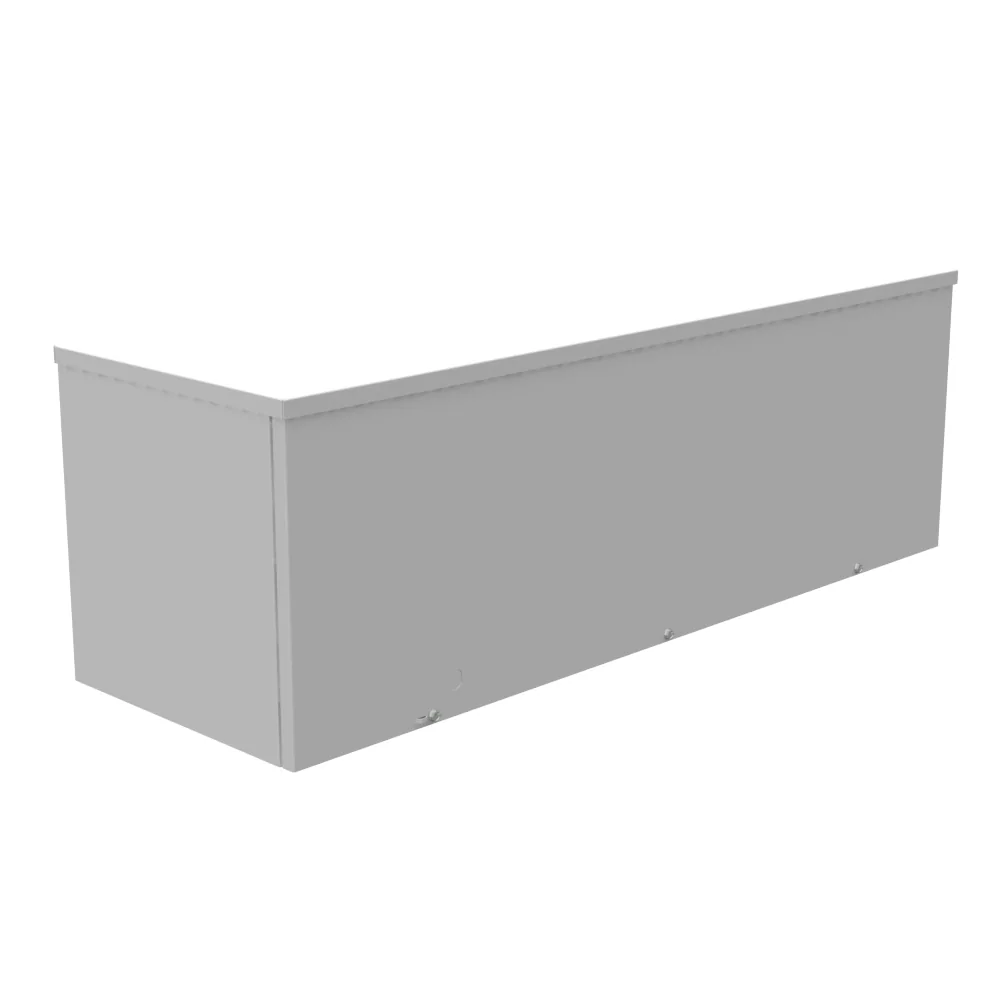

12X36X12 Screw Cover Wireway UL Listed Type 3R Steel No Knockouts ANSI 61 Gray Quad D Knockout for Lock
- Milbank #
- 121236-GSC3R-NK
- UPC
- 784572101098
The Milbank 121236-GSC3R-NK is a screw cover wireway rated Type 3R, UL listed. Wireway sections like this one are used by electricians and contractors to route and protect groups of conductors between panels, disconnects, and other equipment in a raceway system, with the cover removed for access to lay in wire during installation and maintenance. It measures approximately 36 in by 12 in by 12 in. It is supplied with no factory knockouts. The enclosure has an ANSI 61 gray powder-coat finish. Separately from the main cable entry, a quad-D knockout is provided on the cover for adding a padlock. This item is part of the Milbank Wireways line and is intended for use by licensed electricians and electrical contractors on commercial and industrial installations.
$10,028.21 MXN + VAT
| Price before IVA | $10,028.21 MXN |
|---|---|
| Total incl. 16% IVA | $11,632.72 MXN |
| Total incl. 8% IVA (border region) | $10,830.47 MXN |
Converted from USD $556.73 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Outdoor EnclosureOutdoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 12 in30.5 cm |
| Knockouts | FalseFalse |
| Length | 36 in91.4 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 3RType 3R |
| Nominal Cross Section | 12x1212x12 |
| Special Features | Key Locking Cylinder Latch ProvisionKey Locking Cylinder Latch Provision |
| Standard | UL ListedUL Listed |
| Straight Section Length | 3636 |
| Type | Wiring TroughWiring Trough |
| Width | 12 in30.5 cm |
