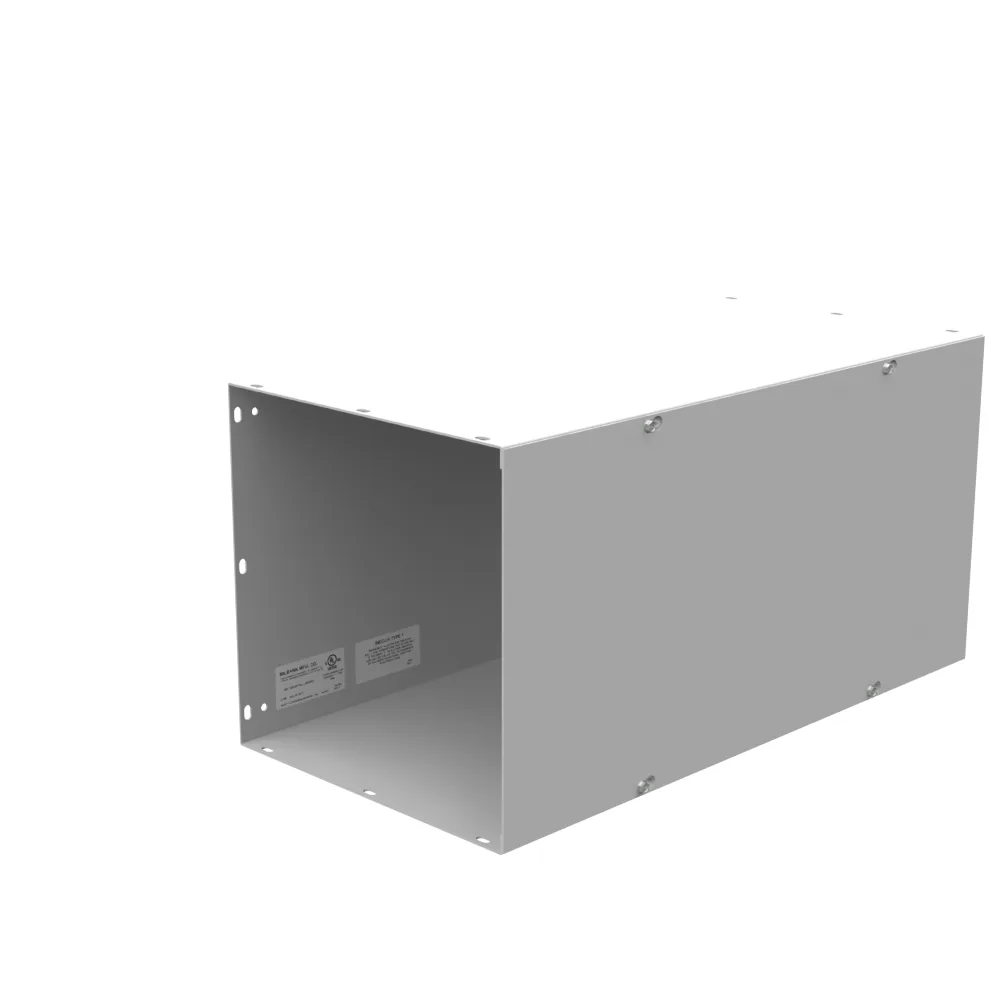

12X24X12 Screw Cover Wireway UL Listed Type 1 Steel No Knockouts ANSI 61 Gray
- Milbank #
- 121224-GSC1-NK
- UPC
- 784572101036
Milbank 121224-GSC1-NK is a screw-cover wireway section in the Milbank GSC1 product family, identified by the product name "12X24X12 Screw Cover Wireway UL Listed Type 1 Steel No Knockouts ANSI 61 Gray". It is used to route and protect branch and feeder conductors along a raceway run, with a screw-fastened cover for periodic access. It is specified with nema rating of Type 1, material: Steel, finish: ANSI 61 Gray Powder Coat Finish, cover type of Screw Cover, has no knockouts, standard: UL Listed. Additional stated attributes include nominal cross section of 12x12, straight section length of 24, height of 12.0 IN, length of 24.0 IN, width of 12.0 IN. A manufacturer spec sheet is available for this SKU for contractors who need drawing or dimensional detail before ordering. This SKU is stocked in the Wireways line as part of the GSC1 family and sold by the each. Arizona Electrical Solutions supplies this item to licensed contractors for panel, service, and raceway work.
$3,572.64 MXN + VAT
| Price before IVA | $3,572.64 MXN |
|---|---|
| Total incl. 16% IVA | $4,144.26 MXN |
| Total incl. 8% IVA (border region) | $3,858.45 MXN |
Converted from USD $198.34 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Indoor EnclosureIndoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 12 in30.5 cm |
| Knockouts | FalseFalse |
| Length | 24 in61.0 cm |
| Material | SteelSteel |
| NEMA Rating | Type 1Type 1 |
| Nominal Cross Section | 12x1212x12 |
| Standard | UL ListedUL Listed |
| Straight Section Length | 2424 |
| Type | Lay In WirewayLay In Wireway |
| Width | 12 in30.5 cm |
