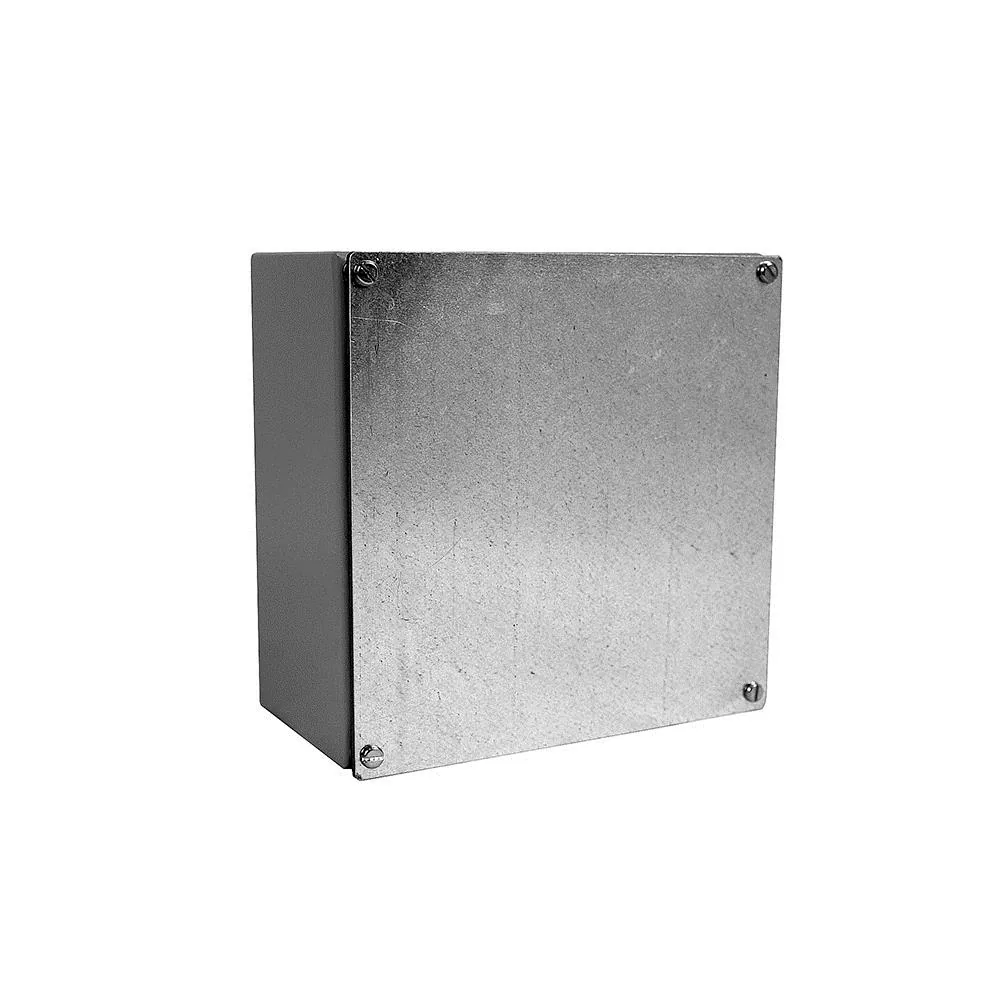

10x6x12 Screw Cover Type 1, 12 and 3R UL Listed Steel No Knockouts No Paint Gasket in Lid Stainless Steel Screws Grounding Stud
- Milbank #
- 12106-WSC2-NP
- UPC
- 784572619289
Milbank 12106-WSC2-NP is a screw-cover electrical enclosure in the Milbank CNSP product family, identified by the product name "10x6x12 Screw Cover Type 1, 12 and 3R UL Listed Steel No Knockouts No Paint Gasket in Lid Stainless Steel Screws Grounding Stud". Contractors use it to house and protect electrical equipment such as terminations, controls, or metering components, with a screw-secured cover for access. It is specified with nema rating of Type 1;Type 3R;Type 12, material: G90 Galvanized Steel, color: ANSI 61 Gray, hinge type of No Hinge, mounting: Surface Mount, cable entry: No Knockouts. Additional stated attributes include standard: UL Listed, construction: Welded, door: 1 Gasketed Door, latch: Cover Secured with Captivated Screws, top: Plain Top, height of 10.0 IN, length of 6.0 IN, width of 12.0 IN, overall dimensions of 6L x 12W x 10H. This SKU is stocked in the Screw Cover Enclosures line as part of the CNSP family and sold by the each. Arizona Electrical Solutions supplies this item to licensed contractors for panel, service, and raceway work.
$2,815.39 MXN + VAT
| Price before IVA | $2,815.39 MXN |
|---|---|
| Total incl. 16% IVA | $3,265.85 MXN |
| Total incl. 8% IVA (border region) | $3,040.62 MXN |
Converted from USD $156.30 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 1 Gasketed Door1 Gasketed Door |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Captivated ScrewsCover Secured with Captivated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Surface MountSurface Mount |
| NEMA Rating | Type 1;Type 3R;Type 12Type 1;Type 3R;Type 12 |
| Number Of Outlet | 00 |
| Size | 6L x 12W x 10H6L x 12W x 10H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 10 in25.4 cm |
| Length | 6 in15.2 cm |
| Width | 12 in30.5 cm |
