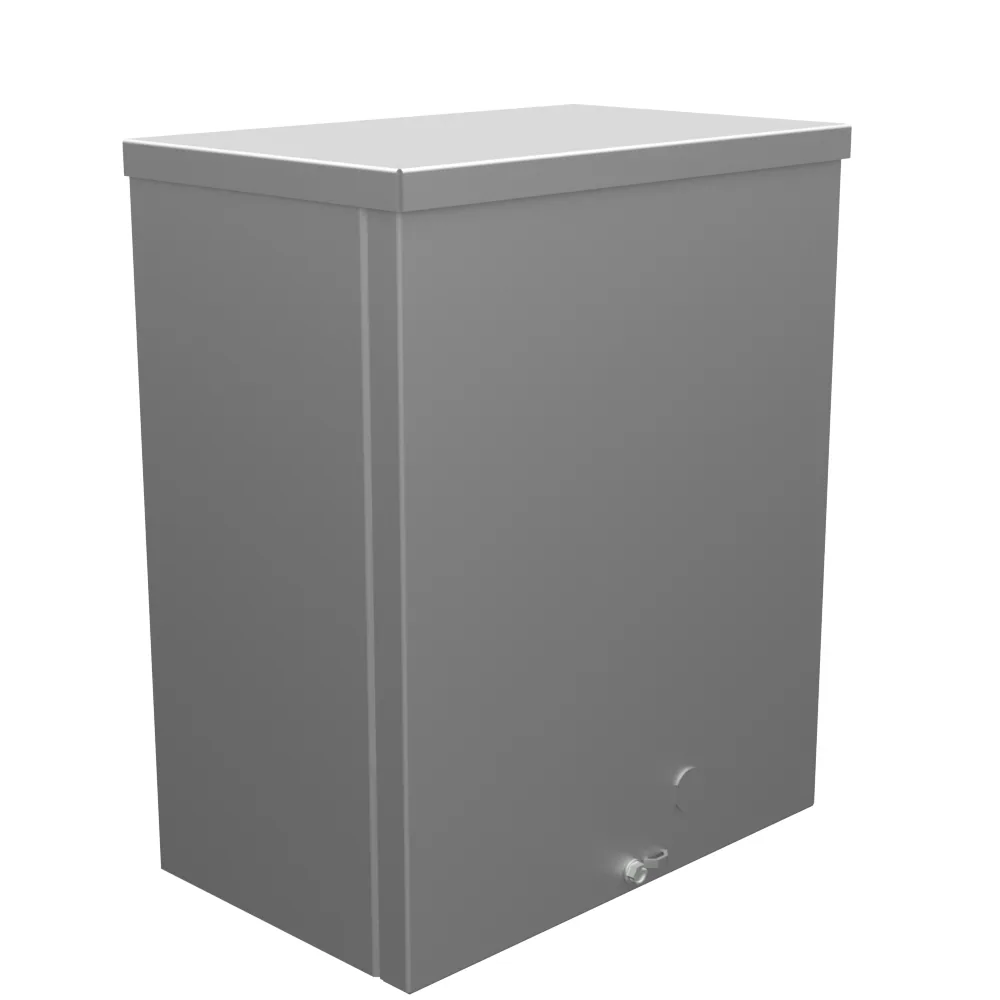

12x6x10 Screw Cover Type 3R UL Listed Steel No Knockouts No Paint Quad D Knockout for Lock Emboss Mounting Holes in Back
- Milbank #
- 10126-SC3R-NK-NP
- UPC
- 784572323421
The Milbank 10126-SC3R-NK-NP is a screw cover, classified by the manufacturer as an enclosure for mounting electrical equipment. It belongs to Milbank's SC3R product family within the screw cover enclosures category. Enclosures of this kind give an electrician or contractor a wall-mounted steel housing for terminating conductors, mounting control devices, or protecting connections at a service or distribution point. It measures 6.0 in long, 10.0 in wide, and 12.0 in high. The housing is constructed of G90 galvanized steel. Construction is welded. It carries a NEMA 3R rating for its intended enclosure application. The item is UL Listed. Additional details from the manufacturer: hinge type is no hinge; it uses cover secured with plated screws; the top is a drip shield top; mounting is wall mount; cable entry is provided as no knockouts. The unit of measure is each. A manufacturer spec sheet is available for this part.
$1,457.77 MXN + VAT
| Price before IVA | $1,457.77 MXN |
|---|---|
| Total incl. 16% IVA | $1,691.01 MXN |
| Total incl. 8% IVA (border region) | $1,574.39 MXN |
Converted from USD $80.93 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 6L x 10W x 12H6L x 10W x 12H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 12 in30.5 cm |
| Length | 6 in15.2 cm |
| Width | 10 in25.4 cm |
