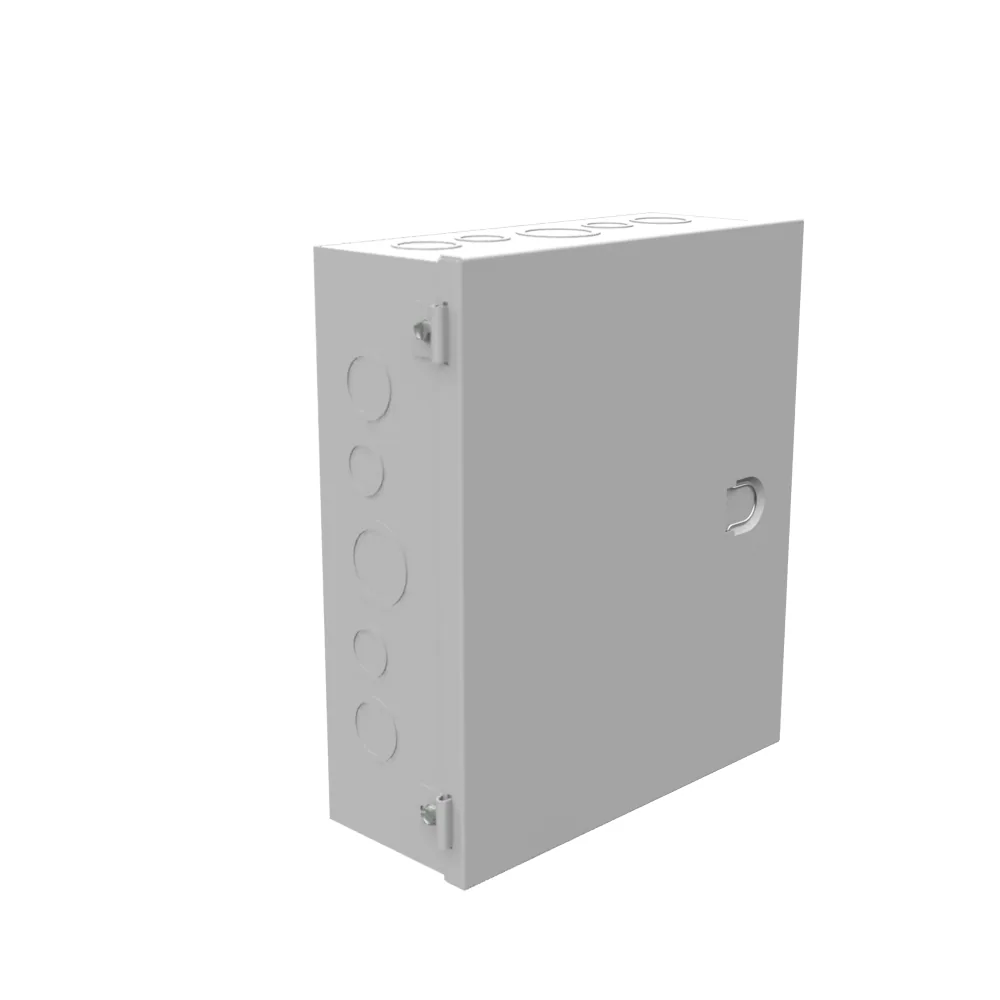

12x4x10 Hinge Cover Type 1 UL Listed Steel Knockouts ANSI 61 Gray Flush Pull Ring Formed Hinges Mounting Holes in Back
- Milbank #
- 10124-HC1
- UPC
- 784572100640
The Milbank 10124-HC1 is a hinge cover, classified by the manufacturer as an enclosure for mounting electrical equipment. It belongs to Milbank's HC1C product family within the hinge cover enclosures category. Enclosures of this kind give an electrician or contractor a wall-mounted steel housing for terminating conductors, mounting control devices, or protecting connections at a service or distribution point. It measures 4.0 in long, 10.0 in wide, and 12.0 in high. The housing is constructed of steel with powder coat finish. Construction is welded. It carries a NEMA 1 rating for its intended enclosure application. The item is UL Listed. Additional details from the manufacturer: door configuration is 1 door; hinge type is formed stainless hinges; it uses flush pull ring for opening; the top is a plain top; mounting is wall mount; cable entry is provided as knockouts. The unit of measure is each. A manufacturer spec sheet is available for this part.
$919.37 MXN + VAT
| Price before IVA | $919.37 MXN |
|---|---|
| Total incl. 16% IVA | $1,066.47 MXN |
| Total incl. 8% IVA (border region) | $992.92 MXN |
Converted from USD $51.04 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | KnockoutsKnockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 1 Door1 Door |
| Hinge Type | Formed Stainless HingesFormed Stainless Hinges |
| Knockouts | TrueTrue |
| Latch | Flush Pull Ring for OpeningFlush Pull Ring for Opening |
| Material | Steel with Powder Coat FinishSteel with Powder Coat Finish |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 1Type 1 |
| Number Of Outlet | 00 |
| Size | 4L x 10W x 12H4L x 10W x 12H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Hinge CoverHinge Cover |
| Height | 12 in30.5 cm |
| Length | 4 in10.2 cm |
| Width | 10 in25.4 cm |
