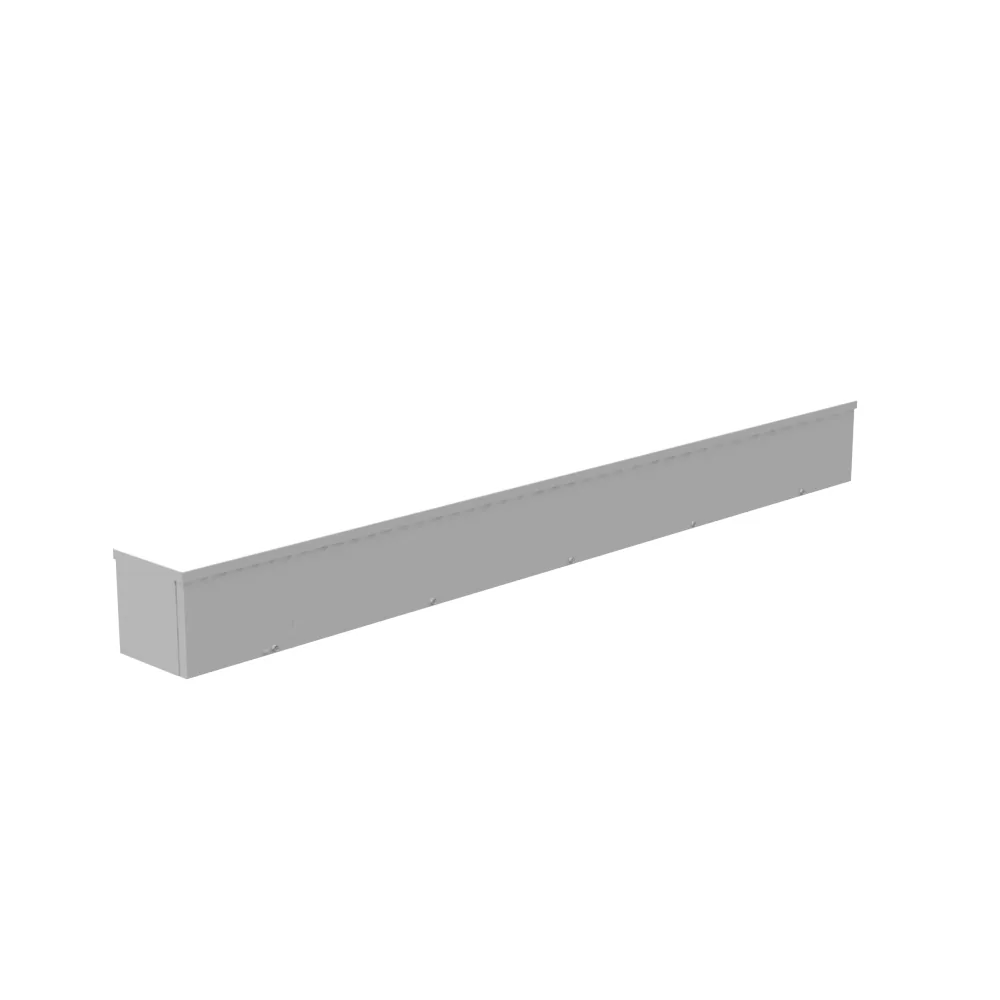

10X96X10 Screw Cover Wireway UL Listed Type 3R Steel No Knockouts ANSI 61 Gray Quad D Knockout for Lock
- Milbank #
- 101096-GSC3R-NK
- UPC
- 784572199859
Milbank 101096-GSC3R-NK is a Type 3R steel wireway, a straight raceway section used by electricians to route and protect branch-circuit conductors between panels, disconnects, and other equipment in a commercial or industrial installation. The section measures 96 in. long with a nominal 10x10 cross section. On this part, it is fitted with a screw cover; the body has no knockouts, so conduit or cable entries are field-drilled; the exterior finish is described as ansi 61 gray powder coat finish; construction is g90 galvanized steel. The wireway carries UL Listed listing for use as an indoor raceway enclosure (wireway).
$16,483.78 MXN + VAT
| Price before IVA | $16,483.78 MXN |
|---|---|
| Total incl. 16% IVA | $19,121.18 MXN |
| Total incl. 8% IVA (border region) | $17,802.48 MXN |
Converted from USD $915.12 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Outdoor EnclosureOutdoor Enclosure |
| Finish | ANSI 61 Gray Powder Coat FinishANSI 61 Gray Powder Coat Finish |
| Height | 10 in25.4 cm |
| Knockouts | FalseFalse |
| Length | 96 in243.8 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 3RType 3R |
| Nominal Cross Section | 10x1010x10 |
| Special Features | Key Locking Cylinder Latch ProvisionKey Locking Cylinder Latch Provision |
| Standard | UL ListedUL Listed |
| Straight Section Length | 9696 |
| Type | Wiring TroughWiring Trough |
| Width | 10 in25.4 cm |
