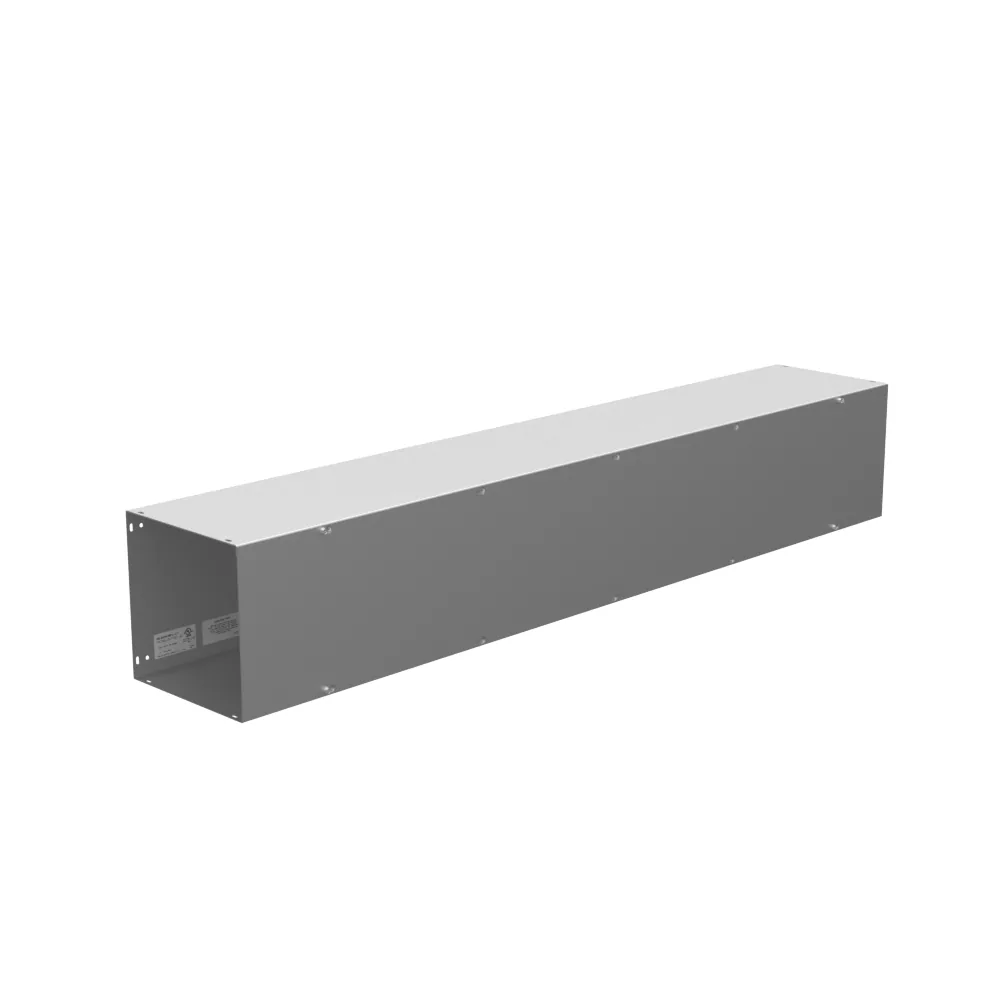

10X72X10 Screw Cover Wireway UL Listed Type 1 Steel No Knockouts No Paint
- Milbank #
- 101072-GSC1-NK-NP
- UPC
- 784572154599
Milbank 101072-GSC1-NK-NP is a Type 1 steel wireway, a straight raceway section used by electricians to route and protect branch-circuit conductors between panels, disconnects, and other equipment in a commercial or industrial installation. The section measures 72 in. long with a nominal 10x10 cross section. On this part, it is fitted with a screw cover; the body has no knockouts, so conduit or cable entries are field-drilled; the exterior finish is described as unpainted; construction is g90 galvanized steel. The wireway carries UL Listed listing for use as an indoor raceway enclosure (wireway).
$8,092.57 MXN + VAT
| Price before IVA | $8,092.57 MXN |
|---|---|
| Total incl. 16% IVA | $9,387.38 MXN |
| Total incl. 8% IVA (border region) | $8,739.98 MXN |
Converted from USD $449.27 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | WirewayWireway |
|---|---|
| Cover Type | Screw CoverScrew Cover |
| Enclosure | Indoor EnclosureIndoor Enclosure |
| Finish | UnpaintedUnpainted |
| Height | 10 in25.4 cm |
| Knockouts | FalseFalse |
| Length | 72 in182.9 cm |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| NEMA Rating | Type 1Type 1 |
| Nominal Cross Section | 10x1010x10 |
| Standard | UL ListedUL Listed |
| Straight Section Length | 7272 |
| Type | Lay In WirewayLay In Wireway |
| Width | 10 in25.4 cm |
