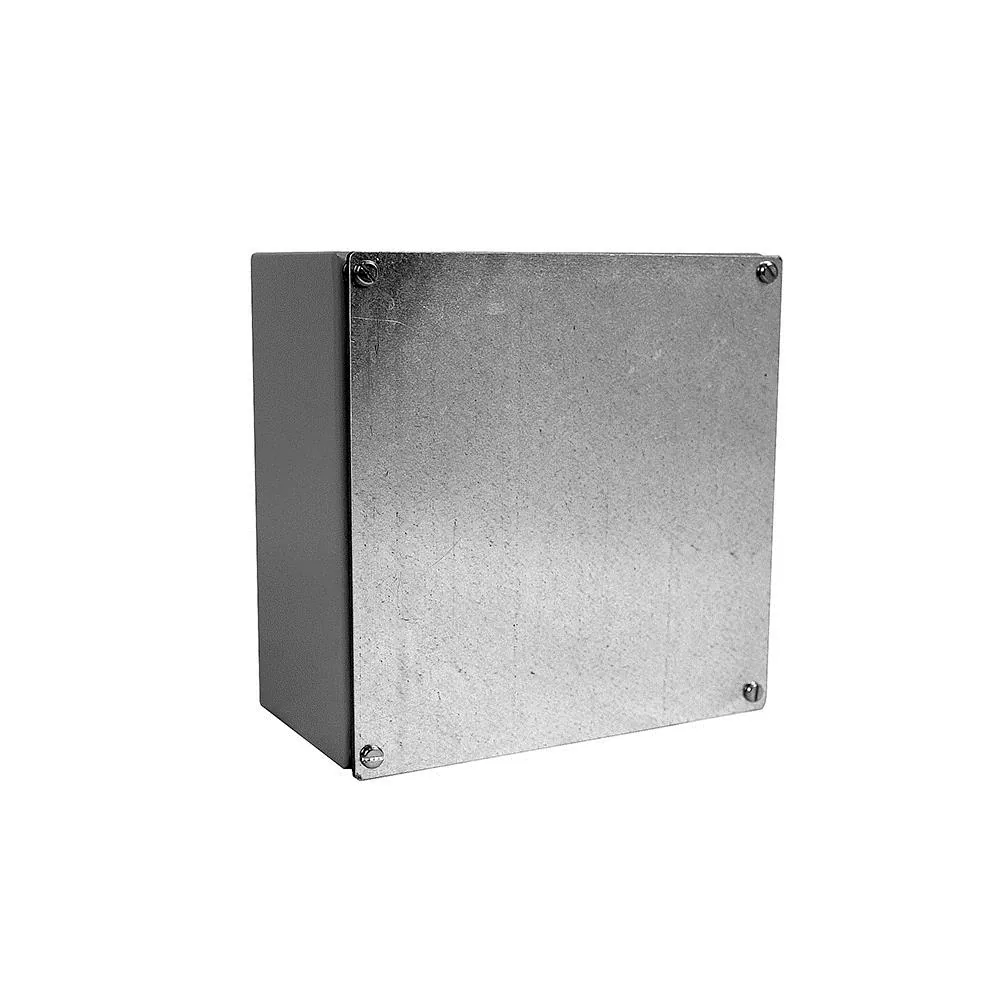

10X6X10 Screw Cover UL Listed Type 1-12-3R Steel No Knockouts ANSI 61 Gray Gasket in Lid Stainless Steel Screws
- Milbank #
- 10106-WSC2
- UPC
- 784572617308
Milbank 10106-WSC2 is a Type 1, Type 3R, and Type 12 steel screw cover enclosure, an electrical box used by electricians and contractors to mount and protect terminations, splices, or other equipment (enclosure for mounting electrical equipment). The enclosure body is 6 in. long, 10 in. wide and 10 in. high. On this part, it has no knockouts; the cover is a 1 gasketed door; cover secured with captivated screws; the body is steel with powder coat finish; finished in ansi 61 gray; it is installed by surface mount. The enclosure carries UL Listed listing to the Type 1, Type 3R, and Type 12 rating.
$1,805.41 MXN + VAT
| Price before IVA | $1,805.41 MXN |
|---|---|
| Total incl. 16% IVA | $2,094.28 MXN |
| Total incl. 8% IVA (border region) | $1,949.84 MXN |
Converted from USD $100.23 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | 1 Gasketed Door1 Gasketed Door |
| Hinge Type | No HingeNo Hinge |
| Latch | Cover Secured with Captivated ScrewsCover Secured with Captivated Screws |
| Material | Steel with Powder Coat FinishSteel with Powder Coat Finish |
| Mounting | Surface MountSurface Mount |
| NEMA Rating | Type 1;Type 3R;Type 12Type 1;Type 3R;Type 12 |
| Number Of Outlet | 00 |
| Size | 6L x 10W x 10H6L x 10W x 10H |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Screw CoverScrew Cover |
| Height | 10 in25.4 cm |
| Length | 6 in15.2 cm |
| Width | 10 in25.4 cm |
