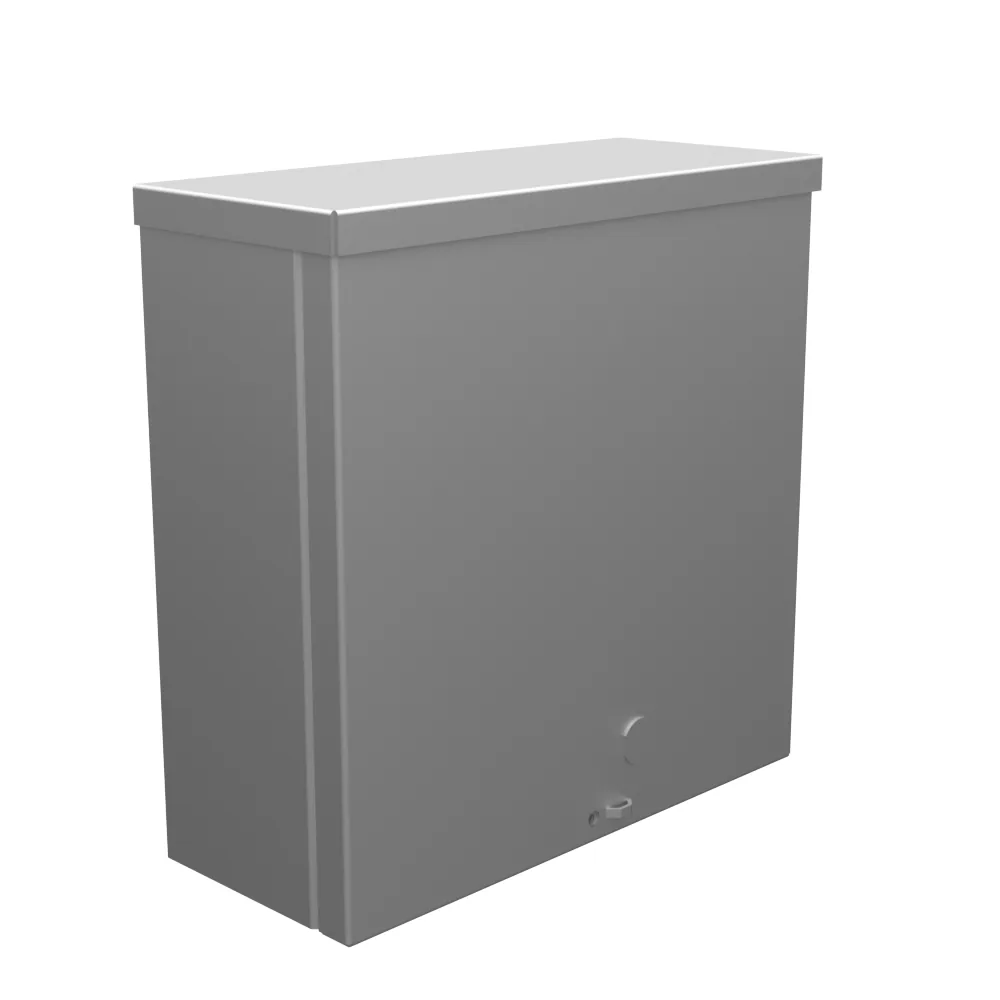

10x4x10 Screw Cover Type 3R UL Listed Steel Knockouts No Paint Drip Shield Emboss Mounting Holes in Back Quad D Knockout for Lock Sealing Eye Lance
- Milbank #
- 10104-SC3R-NP
- UPC
- 784572232280
Milbank 10104-SC3R-NP is an enclosure carried by Arizona Electrical Solutions in the SC3R product family. It measures 4.0in L x 10.0in W x 10.0in H and carries a Type 3R rating per the UL Listed standard. Its stated application is enclosure for mounting electrical equipment. The unit is constructed of g90 galvanized steel. Construction is welded. The latch is described as: cover secured with plated screws. Cable entry is provided via knockouts. Mounting is wall mount. A manufacturer spec sheet is available for this item. It is sold by the each.
List price
$1,084.54 MXN + VAT
| Price before IVA | $1,084.54 MXN |
|---|---|
| Total incl. 16% IVA | $1,258.07 MXN |
| Total incl. 8% IVA (border region) | $1,171.30 MXN |
Converted from USD $60.21 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Enclosure for Mounting Electrical EquipmentEnclosure for Mounting Electrical Equipment |
|---|---|
| Cable Entry | KnockoutsKnockouts |
| Color | UnpaintedUnpainted |
| Construction | WeldedWelded |
| Door | CoverCover |
| Hinge Type | No HingeNo Hinge |
| Knockouts | TrueTrue |
| Latch | Cover Secured with Plated ScrewsCover Secured with Plated Screws |
| Material | G90 Galvanized SteelG90 Galvanized Steel |
| Mounting | Wall MountWall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 4L x 10W x 10H4L x 10W x 10H |
| Standard | UL ListedUL Listed |
| Top | Drip Shield TopDrip Shield Top |
| Type | Screw CoverScrew Cover |
| Height | 10 in25.4 cm |
| Length | 4 in10.2 cm |
| Width | 10 in25.4 cm |
