DistributorSouthwire

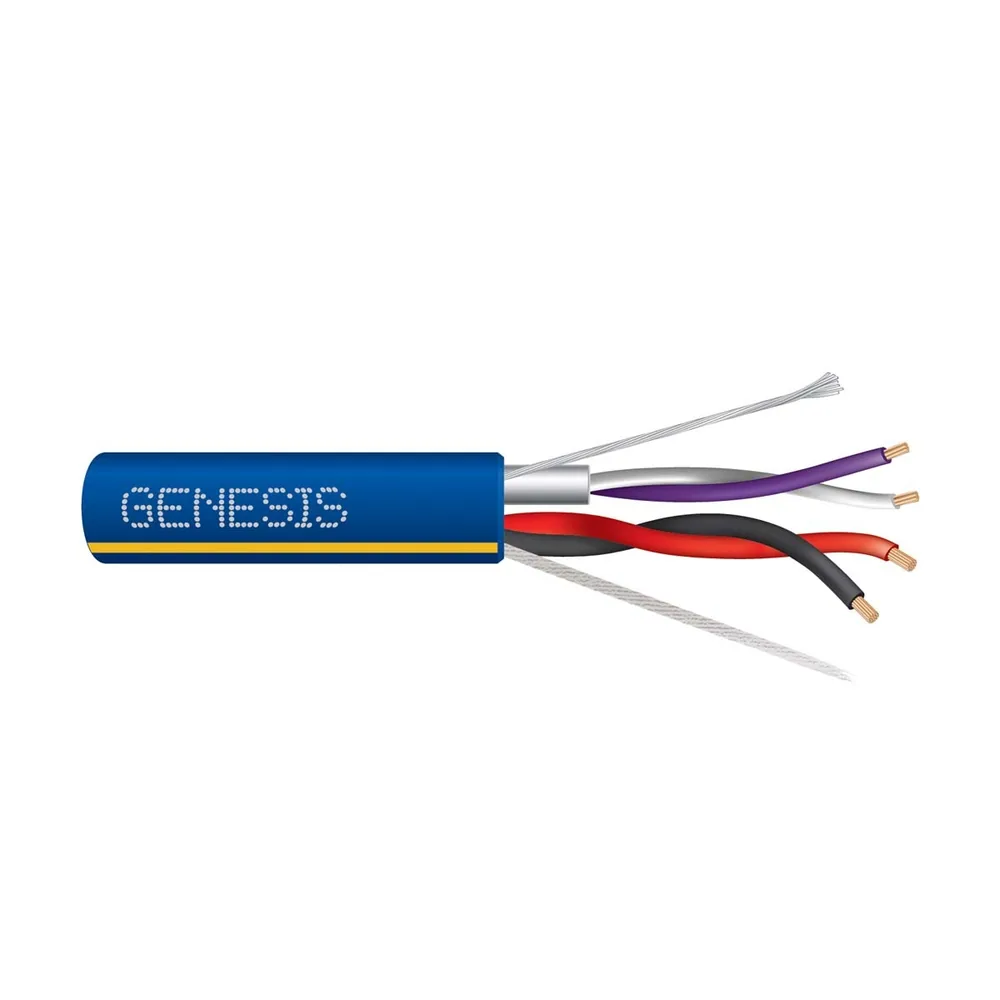

22/1PR OAS+18/1PR STR CU CM/CL2 BLUE-YELLOW STRIPE GEN 1000 FT

Southwire

22/1PR OAS+18/1PR STR CU CM/CL2 BLUE-YELLOW STRIPE GEN 1000 FT

Southwire #
1244106Y

Genesis® Lutron Light & Shade Control Cables enable the superior reliability of wired home automation.

Part of the family: Lutron Light & Shade Control Cable, General Purpose

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)

Application & features

Genesis® General Purpose Rated Lutron Light & Shade Control Cable is suitable for installation as follows:

  • Installed in a metal raceway that complies with 300.22(B).
  • Supported by solid bottom metal cable trays with solid metal covers.
  • Within buildings in other than air-handling spaces and risers.
  • Exposed to sunlight.

Specifications

Size18 AWG18 AWG
No. of Conductors44
StrandingStrandedStranded
ShieldingShieldedShielded
Size1818
No. of Conductors22
ShieldingUnshieldedUnshielded
Nom. OD265 mils6.74 mm
Nominal Total Weight43 lbs/1000'64 kgs/km

Standards & references

  • UL 1685 - General Purpose Rated
  • UL 444 - Communication Cables, Type CM
  • UL 13 - Power-Limited Circuit Cables, Type CL2
  • Sunlight Resistant Rated
  • REACH/RoHS Compliant
