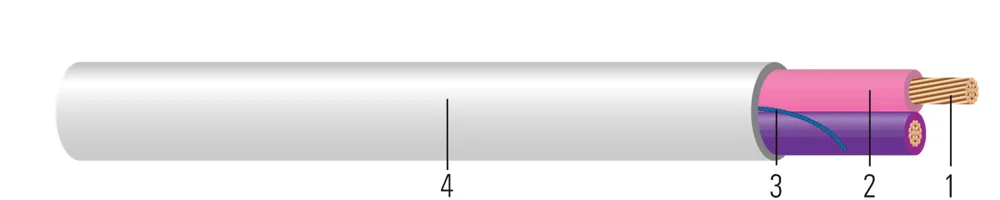

Low Voltage Dimming or Luminaire Cable
- Southwire #
- SPEC13084
300V, 75C, Plenum Rated, Low Voltage Power Limited Dimming 2/C Stranded Unshielded CL3P/FPLP/CMP Cable.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Available sizes & constructions
| Cable Type | Cond. Size | Conductor Number | Diameter Over Conductor (in)(cm) | Color | Insulation Thickness (mils)(mm) | Diameter Over Insulation (in)(cm) | Jacket Thickness (mils)(mm) | Approx. OD (inches)(cm) | Approx. Weight (lbs/1000')(kgs/km) | DC Resistance at 25C (ohms/1000')(ohms/km) | AC Resistance at 75C (ohms/1000')(ohms/km) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL3P/FPLP/CMPCL3P/FPLP/CMP | 18 AWG18 AWG | 22 | 0.0450.11 | PE, PKPE, PK | 90.23 | 0.0630.16 | 150.38 | 0.1520.39 | 1725 | 6.6699.92 | 8.03511.96 | |
| CL3P/FPLP/CMPCL3P/FPLP/CMP | 16 AWG16 AWG | 22 | 0.0560.14 | PE, PKPE, PK | 90.23 | 0.0750.19 | 150.38 | 0.1780.45 | 2436 | 4.1816.22 | 5.0377.50 | |
| 1818 | 39.439.4 | 6.926.92 | 5454 | 47.5%47.5% | ||||||||
| 1616 | 43.143.1 | 4.354.35 | 5050 | 47.5%47.5% |
Application & features
Commercial audio, lumiaire, dimming, security and general purpose power limited circuit cable for low voltage cable applications.
Standards & references
- UL 1424 Cables for Power-Limited Fire-Alarm Circuits
- UL 13 Power-Limited Circuit Cables
- UL 444 CM/CL2
- RoHS-2 (European Directive 2011/65/EU)
