50KA 3 PH HLD 120/240 SPD A
- Intermatic #
- L5F13D1DG2
- UPC
- 078275151727

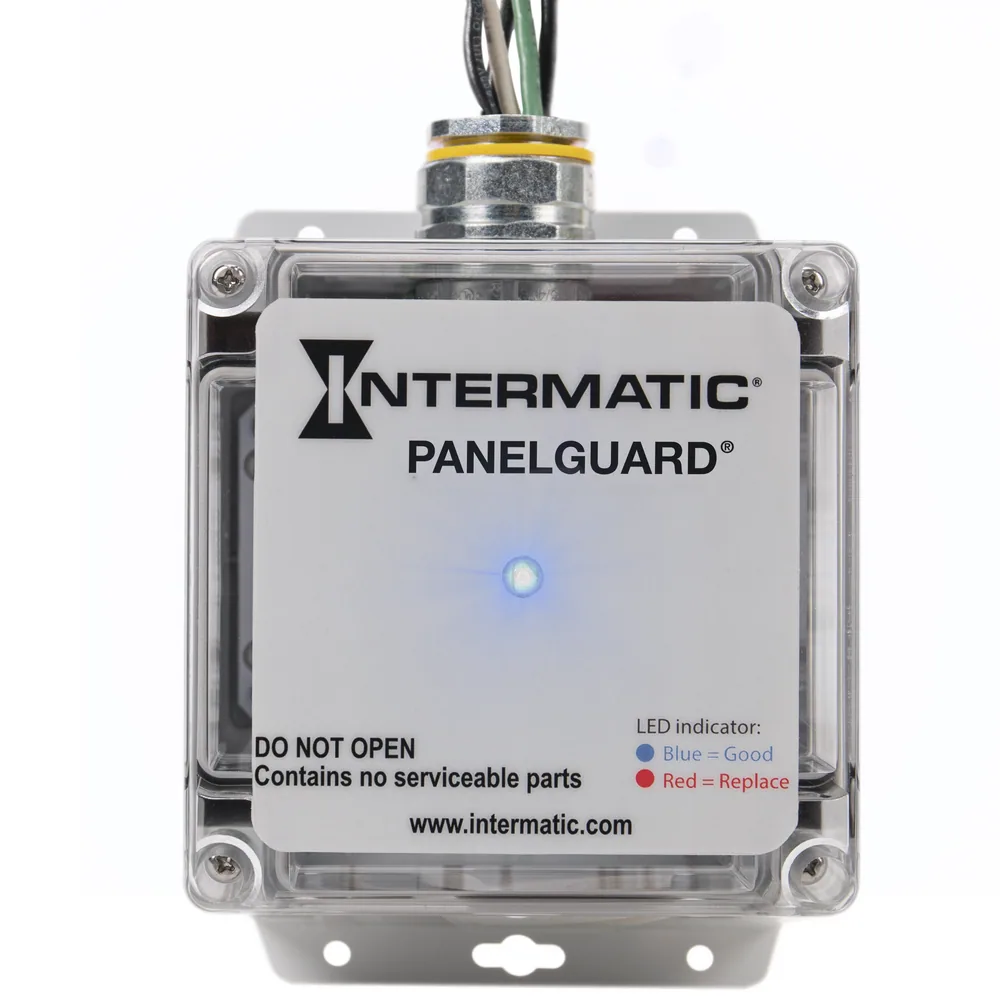

Intermatic L5F13D1DG2 is a surge protective device built for three-phase electrical distribution equipment. It is rated for 4-mode protection on 120/240 VAC three-phase high leg delta systems and carries a Type 1 classification. This surge protective device is intended for electricians and contractors installing transient voltage surge suppression ahead of, or within, a distribution panel or switchboard, where it can help shield downstream equipment from voltage spikes on the line. It carries a surge current rating of 50kA. This version adds an audible alarm with a Form C dry contact, so status can be monitored locally or wired out to a building automation or annunciator system. Refer to the Intermatic spec sheet for full installation and wiring requirements before selecting a replacement or new unit.
$9,396.51 MXN + VAT
| Price before IVA | $9,396.51 MXN |
|---|---|
| Total incl. 16% IVA | $10,899.95 MXN |
| Total incl. 8% IVA (border region) | $10,148.23 MXN |
Converted from USD $521.66 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Surge current rating | 50kA50kA |
|---|---|
| Voltage | 120/240 VAC120/240 VAC |
| Phase | Three-phaseThree-phase |
| Configuration | High Leg DeltaHigh Leg Delta |
| SPD type | Type 1Type 1 |
| Protection modes | 4-Mode4-Mode |
| Alarm | Audible alarm with Form C dry contactAudible alarm with Form C dry contact |
