100KA 3PH Y 277/480 SPD
- Intermatic #
- L10F23Y2DG1
- UPC
- 078275151970

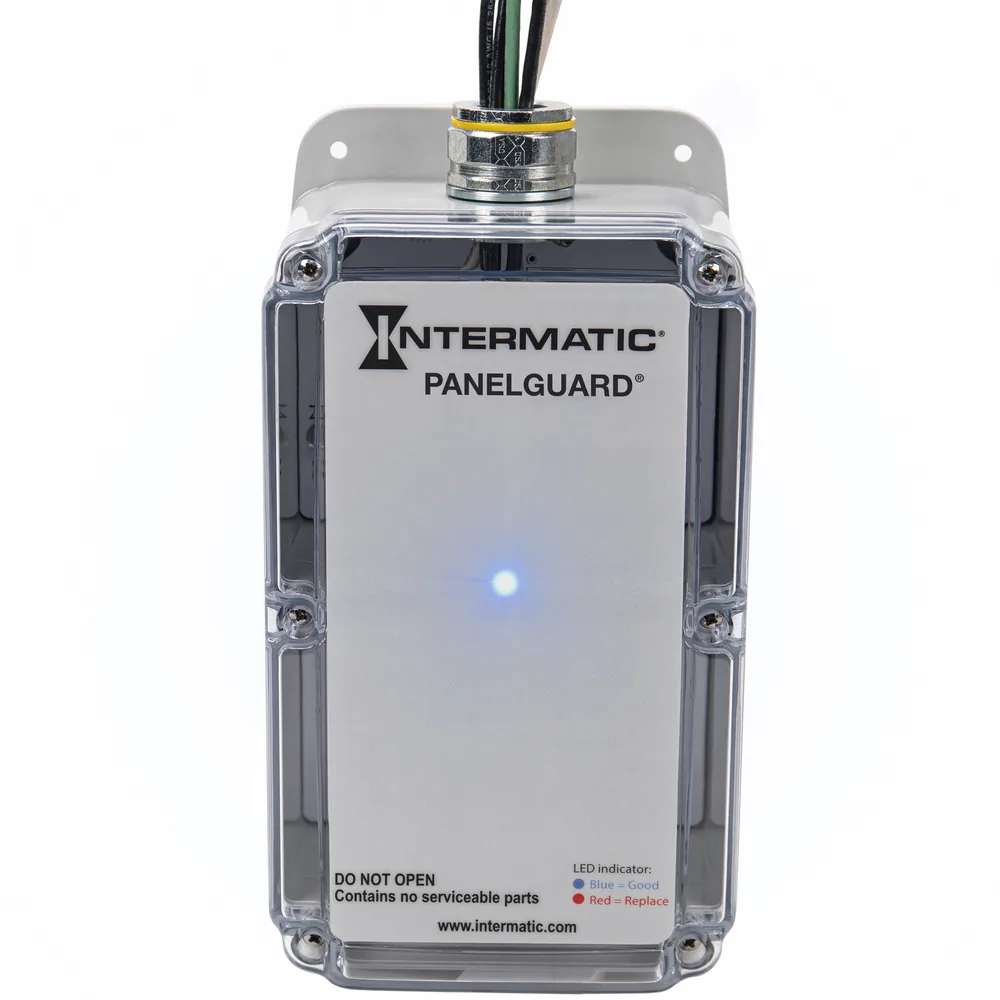

Intermatic L10F23Y2DG1 is a surge protective device built for three-phase electrical distribution equipment. It is rated for 4-mode protection on 277/480 VAC three-phase wye systems and carries a Type 2 classification. This surge protective device is intended for electricians and contractors installing transient voltage surge suppression ahead of, or within, a distribution panel or switchboard, where it can help shield downstream equipment from voltage spikes on the line. It carries a surge current rating of 100kA. An EMI/RFI filter is built into the unit. Refer to the Intermatic spec sheet for full installation and wiring requirements before selecting a replacement or new unit.
$13,875.54 MXN + VAT
| Price before IVA | $13,875.54 MXN |
|---|---|
| Total incl. 16% IVA | $16,095.63 MXN |
| Total incl. 8% IVA (border region) | $14,985.58 MXN |
Converted from USD $770.32 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Surge current rating | 100kA100kA |
|---|---|
| Voltage | 277/480 VAC277/480 VAC |
| Phase | Three-phaseThree-phase |
| Configuration | WyeWye |
| SPD type | Type 2Type 2 |
| Protection modes | 4-Mode4-Mode |
| Filtering | EMI/RFI filterEMI/RFI filter |
