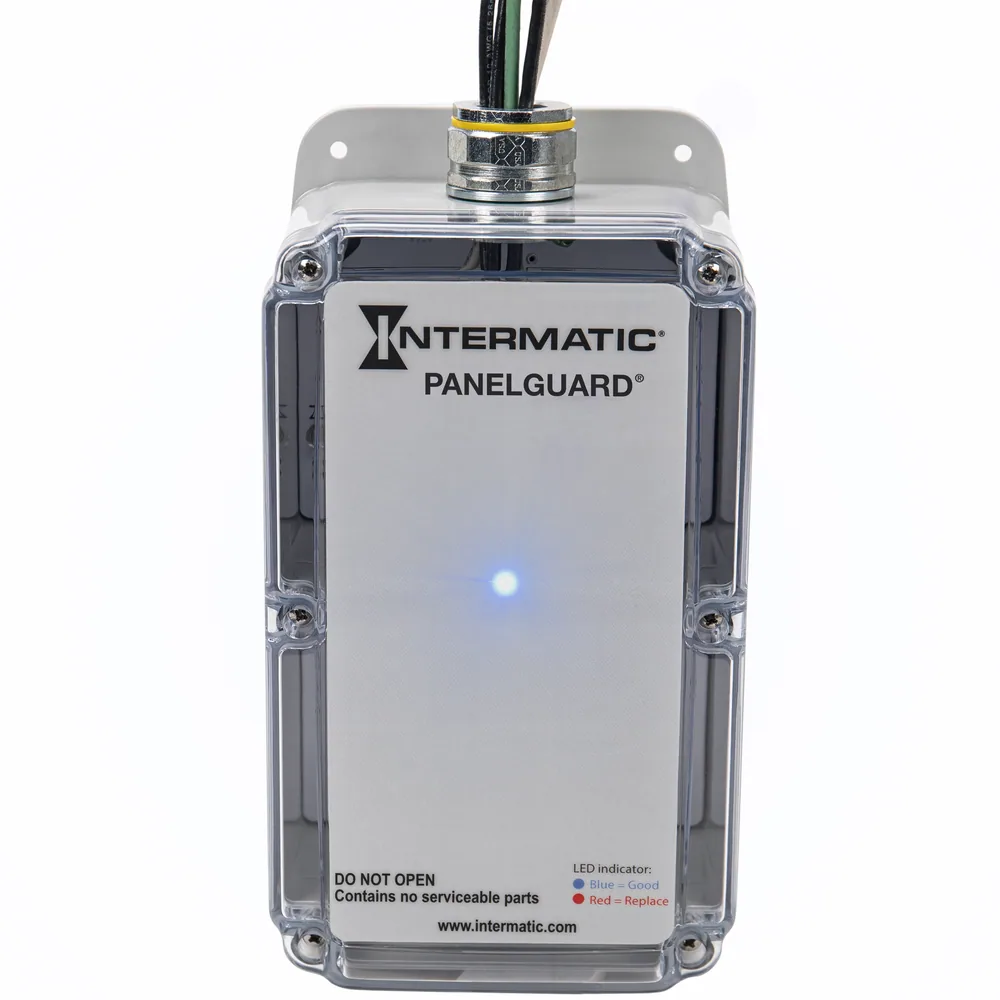

100KA 3PH Y 120/208 SPD A
- Intermatic #
- L10F13Y1DG2
- UPC
- 078275151925
The Intermatic L10F13Y1DG2 is a surge protective device (SPD) rated for 120/208VAC 3-phase service. Surge Protective Device, 4-Mode, 120/208 VAC, 3Ph Y, Type 1, Audible Alarm, Form C Contact, Surge Current Rating 100kA. It is installed by electricians at a service entrance or distribution panel to protect downstream wiring, equipment, and connected loads from transient voltage surges caused by lightning, utility switching, or internal load switching. As a Type 1 device, it is rated for a wye system configuration at 120/208VAC, with a surge current rating of 100kA across 4 protection modes, giving it a defined threshold for how much surge current it can divert before the internal protection elements need replacement. It also includes an audible alarm with a Form C dry contact for remote monitoring. This device is part of Intermatic's Surge Protection line within the surge protection category.
$13,555.10 MXN + VAT
| Price before IVA | $13,555.10 MXN |
|---|---|
| Total incl. 16% IVA | $15,723.92 MXN |
| Total incl. 8% IVA (border region) | $14,639.51 MXN |
Converted from USD $752.53 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Protection modes | 4-mode4-mode |
|---|---|
| Voltage | 120/208VAC120/208VAC |
| Phase | 3-phase3-phase |
| SPD type rating | Type 1Type 1 |
| Surge current rating | 100kA100kA |
| Alarm | Audible alarm with Form C contactAudible alarm with Form C contact |
