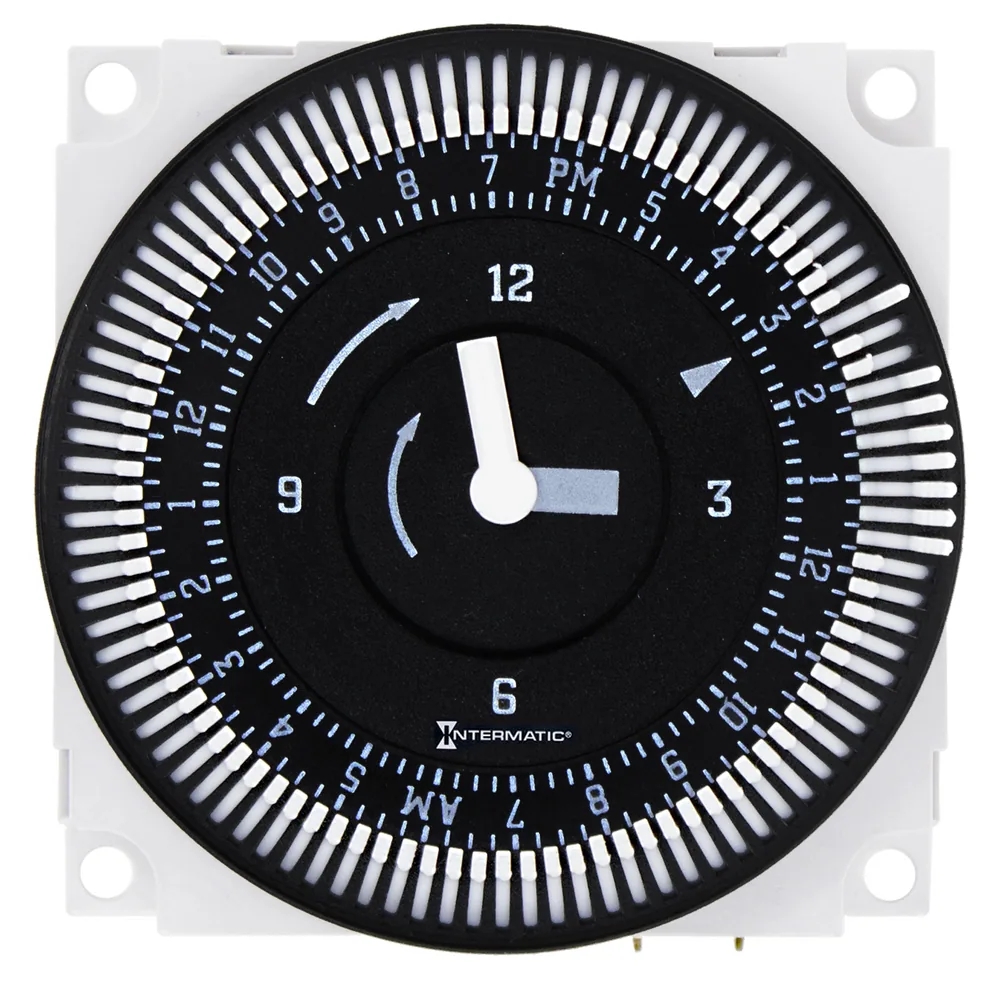

24-Hour Timer Switch
TIME SW,CLOCK FACE,QTZ,24 HOUR
- Intermatic #
- FM1QTUZ-24U
- UPC
- 078275152571
The Intermatic FM1QTUZ-24U is an electromechanical time switch built around a 24-hour cycle. It is designed for panel mount installation. As specified, the module operates on 12/24V, switches loads up to 21A through a SPDT contact, and steps in 15 minute increments. A battery backup keeps the programmed schedule through a power interruption. Electricians and contractors specify time switches like the FM1QTUZ-24U to schedule lighting, HVAC, pumps, or other loads on a repeating cycle in a service entrance section, distribution panel, or control cabinet. It is cataloged by Intermatic under the time switches product family and sold as each.
$2,007.70 MXN + VAT
| Price before IVA | $2,007.70 MXN |
|---|---|
| Total incl. 16% IVA | $2,328.93 MXN |
| Total incl. 8% IVA (border region) | $2,168.32 MXN |
Converted from USD $111.46 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Voltage | 12/24V12/24V |
|---|---|
| Cycle | 24-Hour24-Hour |
| Interval | 15 minute15 minute |
| Amperage | 21A21A |
| Switch configuration | SPDTSPDT |
