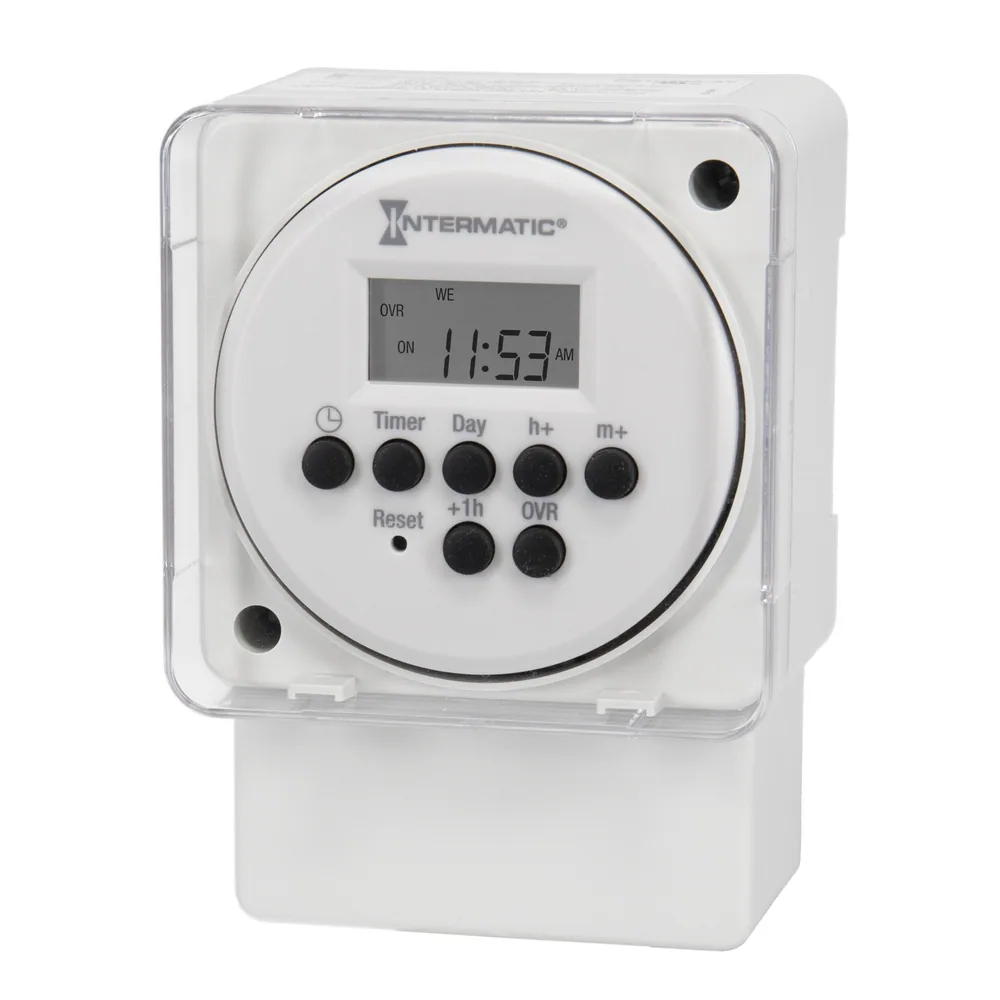

24-H,7-D,12VDC,24VAC ELCT SRFC
- Intermatic #
- FM1D20A-LV
- UPC
- 078275156814
Intermatic FM1D20A-LV is an electronic programmable time switch module, designed to turn connected loads on and off on a repeating daily or weekly schedule. The module supports 24-hour or 7-day programming with up to 20 setpoint programs available for scheduling multiple on/off events. FM1D20A-LV is rated for 24V, and switches loads up to 16 A on a SPDT contact. As a Surface/DIN Rail Mount module, FM1D20A-LV is intended for installation into an FM1-compatible housing or DIN rail enclosure by an electrician or contractor working on commercial lighting or equipment control circuits. Intermatic lists it under Time Switches, sold as a single each.
$3,767.36 MXN + VAT
| Price before IVA | $3,767.36 MXN |
|---|---|
| Total incl. 16% IVA | $4,370.14 MXN |
| Total incl. 8% IVA (border region) | $4,068.75 MXN |
Converted from USD $209.15 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Voltage | 24V24V |
|---|---|
| Switch configuration | SPDTSPDT |
| Amperage | 16 A16 A |
| Setpoint programs | 2020 |
| Mount type | Surface/DIN Rail MountSurface/DIN Rail Mount |
| Programming | 24-Hour or 7-Day24-Hour or 7-Day |
