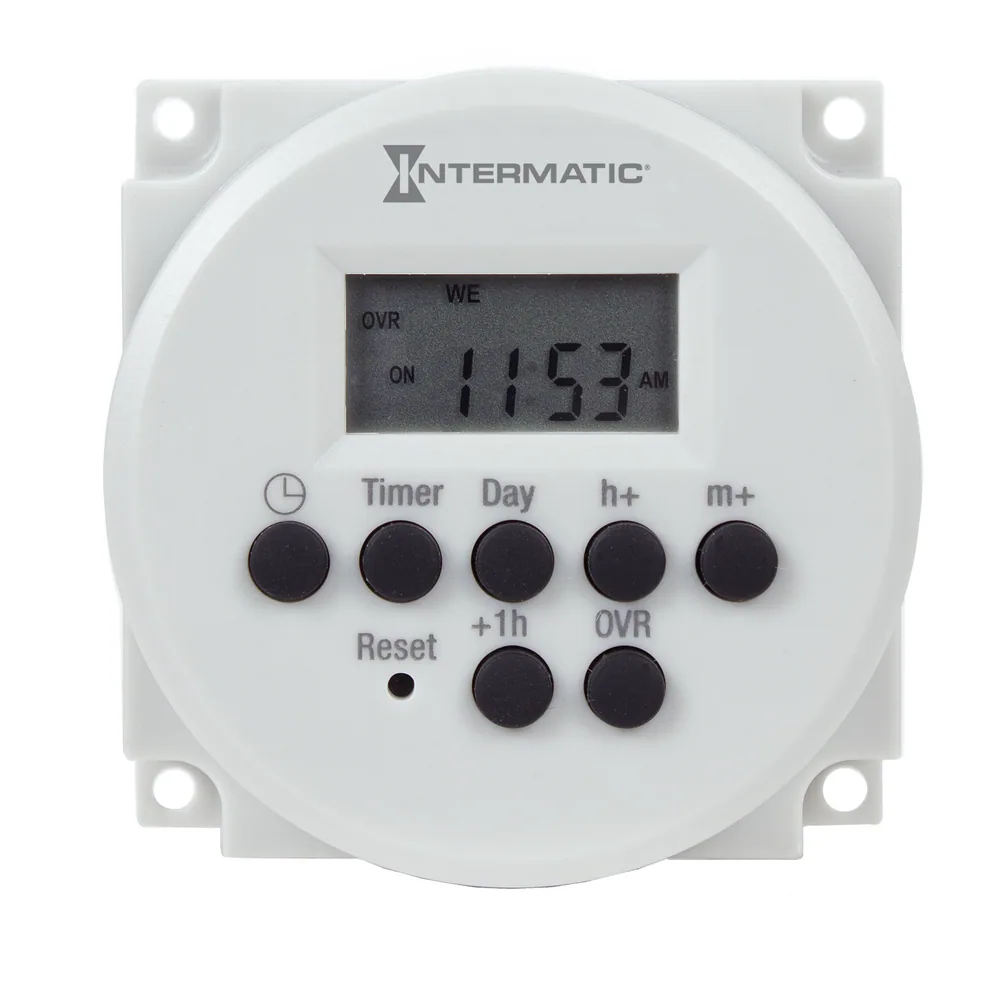

20-Setpoint Electronic Time Switch

24-H,7-D,12VDC,24VAC ELCT PNL

Intermatic #

FM1D20-LV-U

UPC

078275156883

Intermatic FM1D20-LV-U is an electronic programmable time switch module, designed to turn connected loads on and off on a repeating daily or weekly schedule. The module supports 24-hour or 7-day programming with up to 20 setpoint programs available for scheduling multiple on/off events. FM1D20-LV-U is rated for 12/24 VDC, 24 VAC, and switches loads up to 15 A on a SPDT contact. As a Panel Mount module, FM1D20-LV-U is intended for installation into an FM1-compatible housing or DIN rail enclosure by an electrician or contractor working on commercial lighting or equipment control circuits. Intermatic lists it under Time Switches, sold as a single each.
