Spring-Wound Timer, Light Almond

30MIN S/W T/S W/O HLDSPST

Intermatic #

FD30MAC

UPC

078275072923

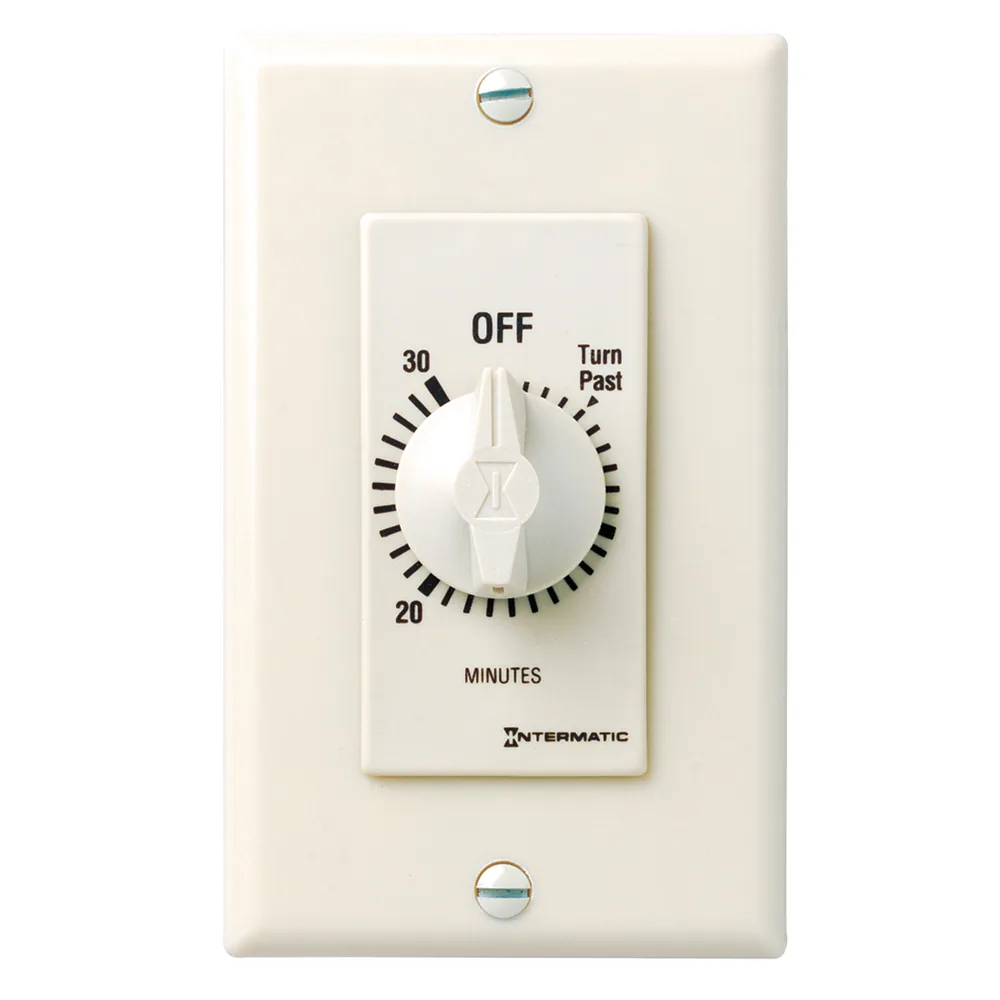

Intermatic FD30MAC is a spring-wound countdown timer in a decorator style, built with a maximum run time of 30 minute max. The timer is rated 125-277 VAC, 50/60 Hz, with an SPST switch, and is finished in light almond to match decorator-style wall plates and devices. Electricians and homeowners use this class of spring-wound timer to manually set a countdown for loads such as bathroom exhaust fans, heat lamps, or other circuits that should shut off automatically after a set interval rather than being left on indefinitely. It does not include a hold feature, so the controlled circuit runs only for the duration set on the spring-wound dial. As a decorator-style device, it is intended to mount in a standard wall box alongside other decorator switches and receptacles.
