IN WALL TIME-ALL

Intermatic #

E1010

UPC

078275440005

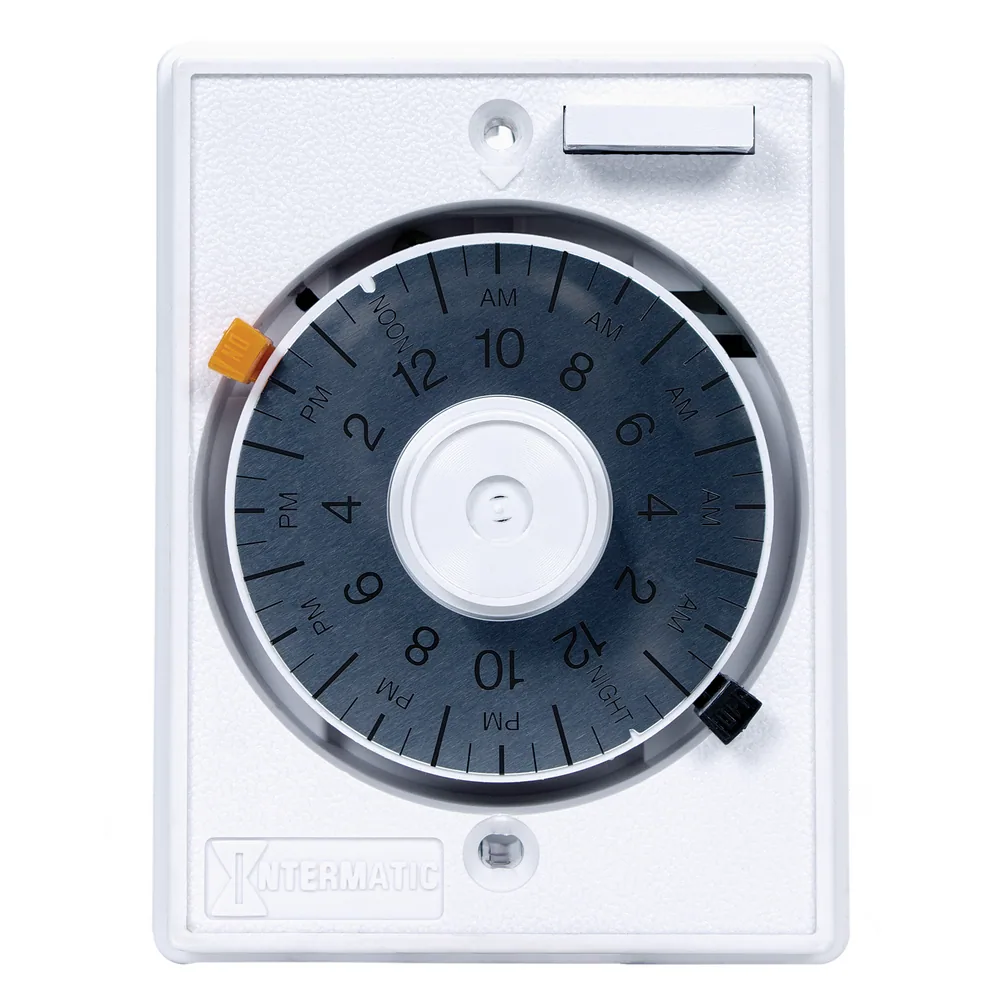

The Intermatic E1010 In-Wall Time-All is a 24-Hour Heavy-Duty Mechanical In-Wall Timer rated 125 VAC, 15 amps. It mounts in a standard wall box in place of or alongside a switch and uses a rotating 24 hour dial with permanent trippers to turn a connected load, such as a bathroom fan, exhaust fan, or other 120 volt circuit, on and off on a repeating daily schedule. Because the trippers are permanent, the on and off points are set by moving the fixed trippers around the dial rather than removing and repositioning separate pieces. The E1010 is finished in white and is stocked as an each within Intermatic's in-wall timer product line.
