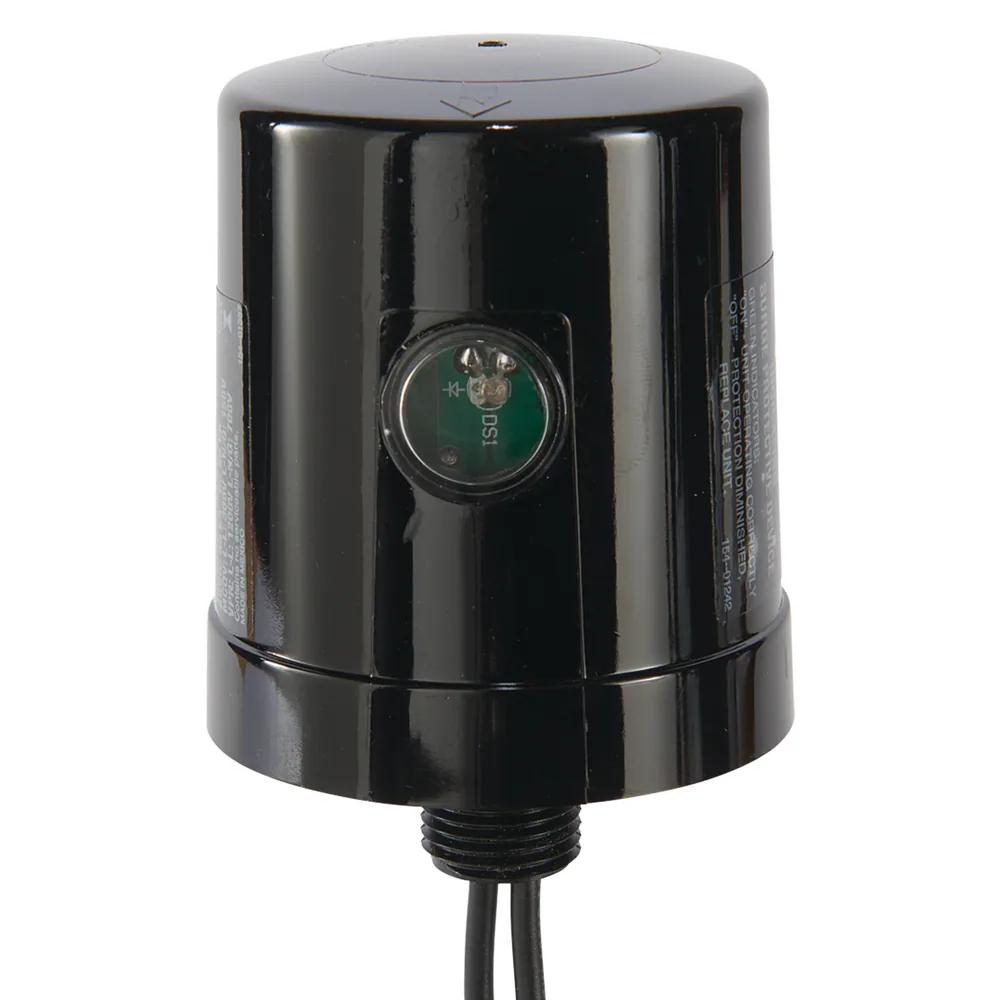

120/240V ARRESTER GUARD,SPH
- Intermatic #
- AG2401C3
- UPC
- 078275124431
The Intermatic AG2401C3 is a 3-mode Arrester Guard surge protective device rated for 120/240 VAC single phase service, designed for outdoor installation. This device is listed as Type 1 or Type 2, meaning it can be applied either ahead of the main disconnect or downstream at a distribution panel, giving an electrician flexibility in where it is placed on a residential or light commercial service. The 3-mode designation refers to the surge protection paths the unit covers across the line and neutral conductors of a single phase system. Because it is rated for outdoor use, the AG2401C3 is suited to service entrance locations exposed to weather. It ships as an each and includes a manufacturer spec sheet covering wiring and mounting requirements for the installing electrician.
$1,882.33 MXN + VAT
| Price before IVA | $1,882.33 MXN |
|---|---|
| Total incl. 16% IVA | $2,183.50 MXN |
| Total incl. 8% IVA (border region) | $2,032.92 MXN |
Converted from USD $104.50 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Voltage | 120/240 VAC120/240 VAC |
|---|---|
| Phase | 1 Phase1 Phase |
| Modes | 3-Mode3-Mode |
| Type | Type 1 or Type 2Type 1 or Type 2 |
| Environment | OutdoorOutdoor |
